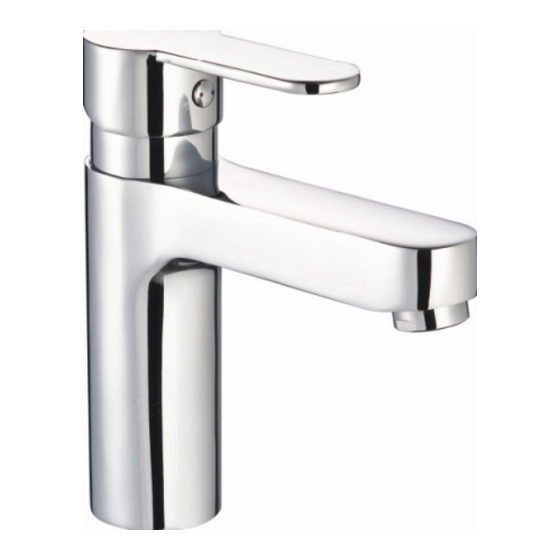

- Page 1 X50 Tap Range This instruction booklet covers: X505205CP, X505215CP, X505255CP, X505265CP, X505122CP, X505126CP, X505135CP Please keep these instructions for future reference For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
- Page 2 For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
-
Page 3: Table Of Contents
Contents Thank you for choosing Twyford. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you... -
Page 4: Important Safety Information
Important Safety Information Please read these instructions thoroughly and retain for future use. All products manufactured and supplied by Twyford are safe provided they are installed correctly, used correctly and receive regular maintenance in accordance with these instructions. If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualified plumber. -
Page 5: Dimensions
Deck Mounted Bidet Mixer & Clicker Waste – X505135CP Dimensions Note: Maximum surface thickness to fit tap to is 44mm Build of Materials 1 * Instructions 1 * Clicker Waste 1 * Deck Mounted Bidet Mixer 1 * Plinth for Bidet Mixer 2 * ½”... -
Page 6: Mini Basin Mixer (X505122Cp)
Deck Mounted Mini Basin Mixer & Clicker Waste – X505122CP Dimensions Note: Maximum surface thickness to fit tap to is 44mm Build of Materials 1 * Instructions 1 * Clicker Waste 1 * Deck Mounted Mini Basin Mixer 1 * Plinth for Mini Basin Mixer 2 * ½”... - Page 7 Deck Mounted Basin Mixer with Clicker Waste – X505126CP Dimensions Note: Maximum surface thickness to fit tap to is 44mm Build of Materials 1 * Instructions 1 * Clicker Waste 1 * Deck Mounted Basin Mixer 1 * Plinth for Basin Mixer 2 * ½”...
- Page 8 ½” Basin Pillar Taps – X505205CP Dimensions Note: Maximum surface thickness to fit tap to is 33mm Build of Materials 1 * Instructions 2 * ½” Basin Pillar Taps 2 * Rubber Washers 2 * ½” Back Nuts Flow Rate (Litre’s per minute) 0.2 Bar 0.5 Bar 1.0 Bar...
- Page 9 ¾” Bath Pillar Taps – X505215CP Dimensions Note: Maximum surface thickness to fit tap to is 33mm Build of Materials 1 * Instructions 2 * ¾” Basin Pillar Taps 2 * Rubber Washers 2 * ¾” Back Nuts Flow Rate (Litre’s per minute) 0.2 Bar 0.5 Bar 1.0 Bar...
-
Page 10: Bath Filler (X505255Cp)
Deck Mounted Bath Filler – X505255CP Dimensions Note: Maximum surface thickness to fit tap to is 33mm Build of Materials 1 * Instructions 1 * Bath Filler Deck with ¾” Inlets 2 * Rubber Washers 2 * ¾” Back Nuts Flow Rate (Litre’s per minute) 0.2 Bar 0.5 Bar... - Page 11 Deck Mounted Bath Shower Mixer – X505265CP Dimensions Note: Maximum surface thickness to fit tap to is 33mm Build of Materials 1 * Instructions 1 * Bath Shower Mixer with ¾” Inlets 1 * Handset 1 * Shower head holder & Fixings 1 * 1.5 Metre Shower Hose 2 * ¾”...
-
Page 12: Installation Requirements
Installation Requirements IMPORTANT - PLEASE READ This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory. Installation (X505205CP, X505215CP) Basin &... -
Page 13: Bath Filler & Bath Shower Mixer
Installation continued (X505255CP, X505265CP) Deck Mounted Bath Filler and Bath Shower Mixer Identify all components are present prior to starting the installation. 1. Fit the mixer body to the bath ensuring that the plinth and washer are between the body and bath. -
Page 14: Basin Mixer, Mini Basin Mixer & Bidet
Installation continued (X505126CP, X505122CP, X505135CP) Basin Mixer/Bidet Mixer/Mini Basin Mixer Identify all components are present prior to starting the installation. 1. Screw the flexi tails into the bottom of the mixer Flexi Tails body by hand only (DO NOT OVERTIGHTEN). 2. -
Page 15: Flow Limiters
Flow limiters pillar taps Twyford’s Pillar Taps use push fitted flow limiters which are inserted into the threaded inlet area of the Taps. To install: The flow limiter should be inserted into the threaded tail of the tap with the arrow pointing upwards and the ‘O’... -
Page 16: Maintenance
Maintenance General Cleaning Your fitting has a high quality finish and should be treated with care to preserve the visible surfaces. All finishes will degrade if not cleaned correctly. The only safe way to clean your product is to wipe with a soft damp cloth. -
Page 17: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or poor flow Partially closed stop or service Open stop or service valve. rate. valve in water supply pipework to the tap. Head of water is below the Refer to the Specification section minimum distance required. for minimum pressures required. -
Page 18: Guarantee
Twyford Guarantee At Twyford, we want to make things as easy as The guarantee does not cover compensation for possible for our customers. That’s why we design loss of use of the product or consequential loss of products that are easy to fit and use, and that are any kind. -
Page 19: Notes
Notes For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk... - Page 20 This instruction booklet covers: X505205CP, X505215CP, X505255CP, X505265CP, X505122CP ,X505126CP, X505135CP Twyford Lawton Road Alsager Stoke-On-Trent ST7 2DF UK Technical Helpline Telephone: 0844 412 5951 Or 01270 871480 Email: customerservice@twyfordbathrooms.com Website: www.twyfordbathrooms.com FI (X50 RANGE) – REV. D2 For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
