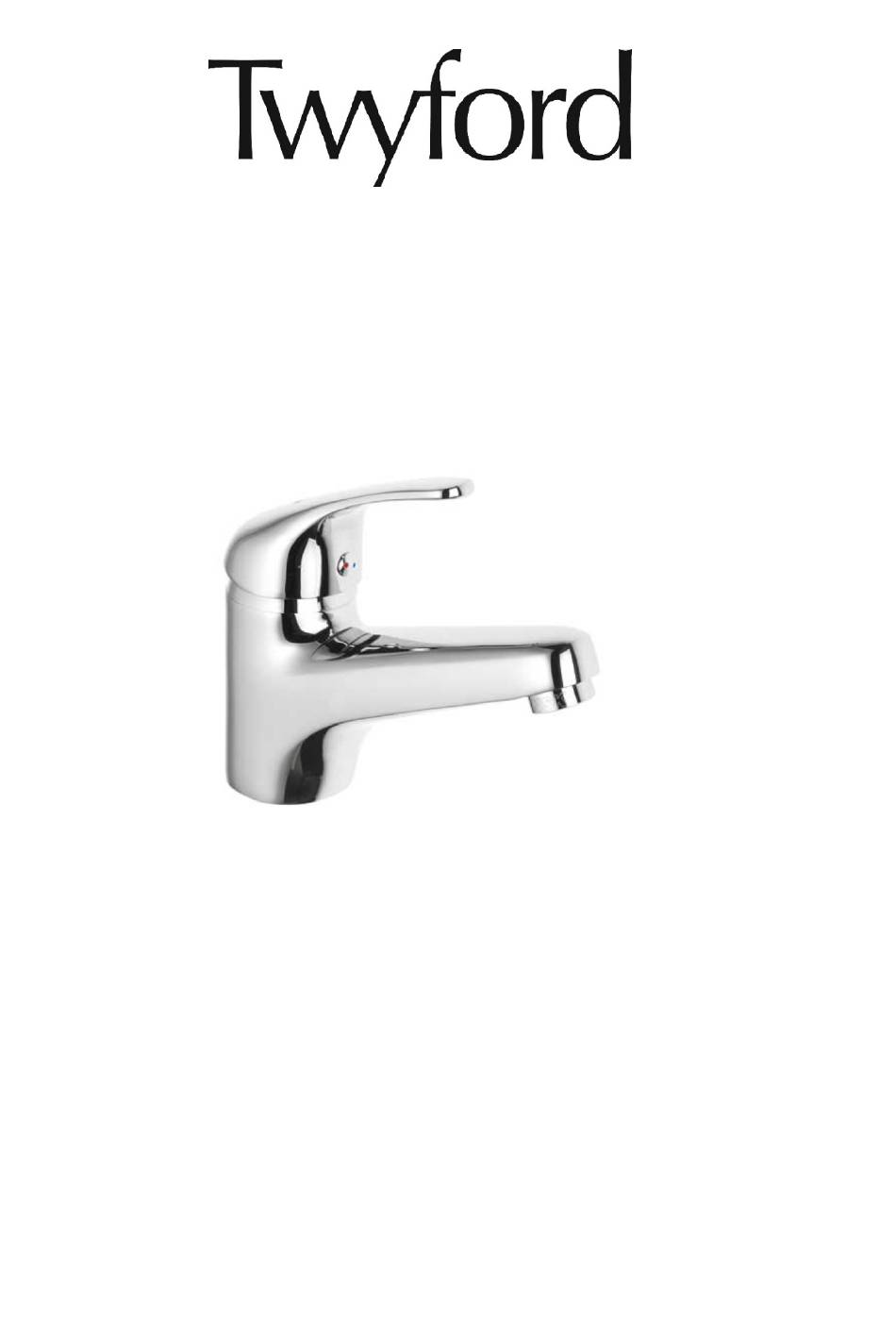

- Page 1 X52 Tap Range This instruction booklet covers: X525126CP, X525135CP, X525925CP X525255CP, X525265CP Please keep these instructions for future reference...
-
Page 2: Table Of Contents
Contents Thank you for choosing Twyford. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you... -
Page 3: Important Safety Information
Important Safety Information Please read these instructions thoroughly and retain for future use. All products manufactured and supplied by Twyford are safe provided they are installed correctly, used correctly and receive regular maintenance in accordance with these instructions. If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualified plumber. -
Page 4: Dimensions
Deck Mounted Basin Mixer with Clicker Waste – X525126CP Dimensions 23° Ø60 Ø37 G 1¼” Note: Maximum surface thickness to fit tap to is 35mm Build of Materials 1 * Instructions 1 * Clicker Waste 1 * Deck Mounted Basin Mixer 1 * Securing Bracket 2 * ½”... - Page 5 Deck Mounted Bidet Mixer & Clicker Waste – X525135CP Dimensions Ø60 Ø37 1/2" BSP G 1¼” Note: Maximum surface thickness to fit tap to is 35mm Build of Materials 1 * Instructions 1 * Clicker Waste 1 * Deck Mounted Bidet Mixer 1 * Securing Bracket 2 * ½”...
- Page 6 Deck Mounted Kitchen Mixer – X525295CP 10° Dimensions 1/2" BSP Note: Maximum surface thickness to fit tap to is 35mm Build of Materials 1 * Instructions 1 * Securing Bracket 1 * Deck Mounted Kitchen Mixer 2 * ½” Female BSP x M10 Flexi hoses (450mm) 0.5 Bar 1.0 Bar 2.0 Bar...
- Page 7 Deck Mounted Bath Mixer – X525255CP Dimensions 5° 3/4" BSP Note: Maximum surface thickness to fit tap to is 33mm Build of Materials 1 * Instructions 2 * ¾” Back Nuts 1 * Deck Mounted Bath Mixer ¾” Inlets 2 * Rubber Washers Flow Rate 0.5 Bar 1.0 Bar...
- Page 8 Deck Mounted Bath Shower Mixer – X525265CP Dimensions 5° 1/2" BSP 3/4" BSP Note: Maximum surface thickness to fit tap to is 33mm Build of Materials 1 * Instructions 2 * ¾” Back Nuts 1 * Deck Mounted Bath Shower Mixer ¾” Inlets 2 * Rubber Washers Flow Rate 0.5 Bar...
-
Page 9: Installation Requirements
Installation Requirements IMPORTANT - PLEASE READ This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory. Installation (X525126CP, X525135CP, X525925CP) Basin Mixer/Bidet Mixer/Kitchen Mixer... - Page 10 Installation continued (X525255CP, X525265CP) Deck Mounted Bath Filler and Bath Shower Mixer Identify all components are present prior to starting the installation. 1. Fit the mixer body to the bath ensuring that the gasket is between the body and bath. 2.
-
Page 11: Flow Limiters
Flow limiters bath shower mixer taps Twyford’s Bath Shower Mixer Taps use flow limiters which are inserted via the threads in between the shower outlet on the tap and the hose inlet. To install: Insert the flow limiter and adapter in between the shower outlet on the body and the shower hose making sure the rubber washer is used. -
Page 12: Maintenance
Maintenance General Cleaning Your fitting has a high quality finish and should be treated with care to preserve the visible surfaces. All finishes will degrade if not cleaned correctly. The only safe way to clean your product is to wipe with a soft damp cloth. -
Page 13: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or poor flow Partially closed stop or service Open stop or service valve. rate. valve in water supply pipework to the tap. Head of water is below the Refer to the Specification section minimum distance required. for minimum pressures required. -
Page 14: Guarantee
Twyford Guarantee At Twyford, we want to make things as easy as The guarantee does not cover compensation for possible for our customers. That’s why we design loss of use of the product or consequential loss of products that are easy to fit and use, and that are any kind. -
Page 15: Notes
Notes... - Page 16 This instruction booklet covers: X525126CP, X525135CP, X525925CP, X525255CP ,X525256CP Twyford Lawton Road Alsager Stoke-On-Trent ST7 2DF UK Technical Helpline Telephone: 0844 412 5951 Or 01270 871480 Email: customerservice@twyfordbathrooms.com Website: www.twyfordbathrooms.com FI (X52 RANGE) – 12/15...
