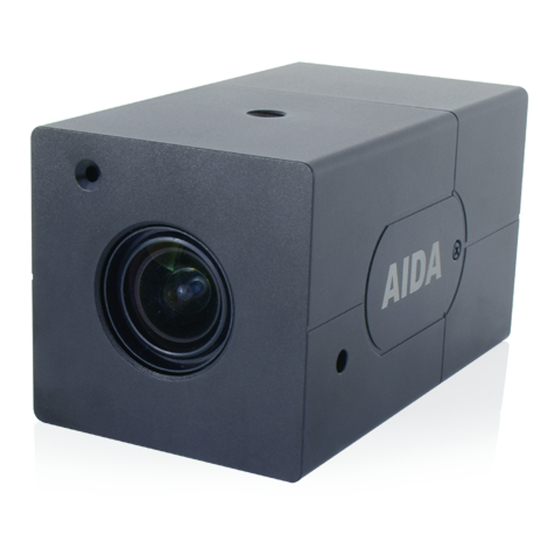

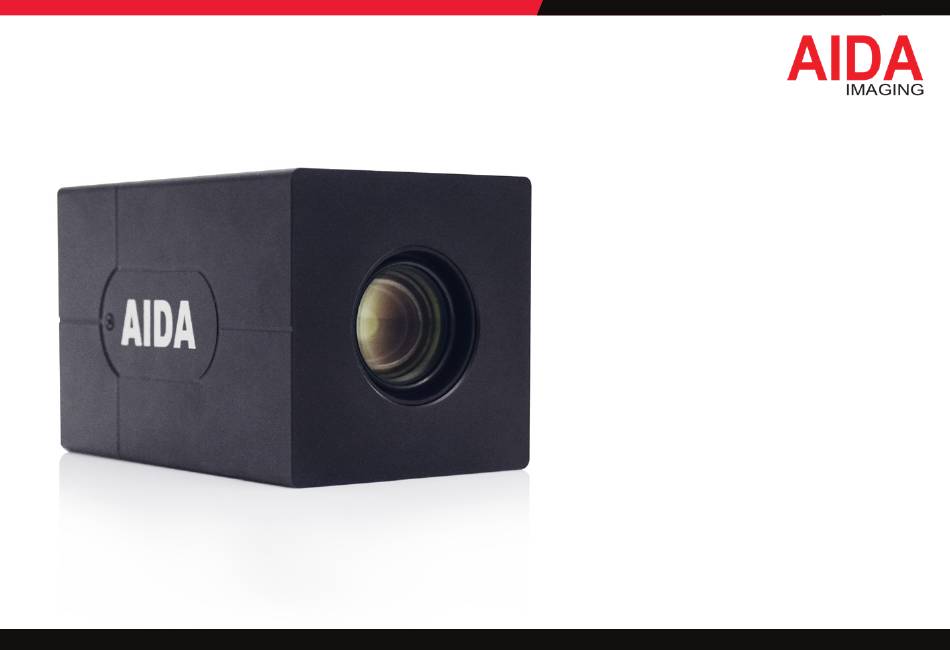

- Page 1 4K HDMI POV Camera UHD-X3L OPER ATI ON GU I DE Version 1.0 / April 2020 Reproduction of this manual, in whole or in part, by any means, is prohibited.
- Page 2 CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING PRECAUTION This symbol indicates that dangerous This exclamation point symbol is intended to alert the user to the presence of important operating and voltage consisting a risk of electric shock...
- Page 3 Warning continues Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source and contact the service center.
- Page 4 UHD-X3L...
- Page 5 FEATURES • 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under low light conditions. • X3 optical zoom features 25˜ ~ 78˜ wide angle of view. • Built-in zoom lens offers zoom,focus and iris control. •...
-
Page 6: Focus Control
FOCUS CONTROL AUTO FOCUS CONTROL Auto mode will adjust the exposure level automatically. MANUAL FOCUS MODE AUTO PUSH Focus control is done manually. ZOOM SPEED • PUSH : Press SEL key to focus automatically from the current view. FOCUS LIMIT 50CM *AF AREA/SIZE ZOOM SPEED... - Page 7 WB CONTROL AWB - Auto white balance mode will adjust white balance within WHITE BALANCE 3,000˜K ~ 8,000˜K temperature. *MODE ATW - Auto trace white mode will adjust white balance within PUSH 1,900˜K ~ 11,000˜K temperature. BLUE ONE PUSH - One push mode is used if AWB or ATW cannot produce the proper RETURN white balance.
- Page 8 WB CONTROL SHUT FIX EXPOSURE *AE MODE SHUT FIX SHUT FIX mode provides more detailed shutter speed option. SHUTTER AUTO All other controls are tuned for the selected shutter speed. IRIS • SHUTTER : AUTO, 1/30 ~ 1/10,000 ( Shutter speed can be set ) AGC MAX HIGH •...
- Page 9 AE CONTROL AGC FIX EXPOSURE AGC FIX mode provides more detailed gain option. *AE MODE AGC FIX SHUTTER All other controls are tuned for the selected gain value. IRIS • AGC : AUTO, 0dB ~ 27dB, d2X ~ d9X AUTO AGC MAX HIGH Gain level can be set.
-
Page 10: Image Control
IMAGE CONTROL Camera image control can be adjusted from EFFECT menu. IMAGE CONTROL • LENS SHADING : ON, OFF *LENS SHADING SHUTTER CONTRAST Optical vignetting issue can be corrected from this menu. BRIGHTNESS • BLACK LEVEL : -64 ~ 64 ( Gamma level can be adjusted ) SATURATION •... - Page 11 SPECIAL Camera special functions can be adjusted from SPECIAL menu. SPECIAL D ZOOM : ON, OFF ( Digital Zoom and PIP function can be enabled from this menu ) *DZOOM DEFOG • ZOOM CONTROL : RATIO, POSITION, RETURN Adjust the digital zoom ratio and position. BACKLIGHT BINNING Use LEFT / RIGHT button to adjust the ratio, then press select.
- Page 12 SPECIAL DEFOG : ON, OFF, AUTO ( “DEFOG” menu improves foggy image) DEFOG SETUP • STRENGTH : 0 ~ 16 *STRENGTH Change defog strength. THRESHOLD • THRESHOLD : 0 ~ 3 AUTO LEVEL RETURN Threshold value sets minimum sensitivity value for automatic defog control. Higher value makes defog-on control reluctant.
- Page 13 SPECIAL HLM : OFF, ON BACKLIGHT - HLM HLM can be adjusted. AREA • AREA DISPLAY : ON, OFF *AREA DISPLAY SIZE/POSITION HLM AREA DISPLAY can be turned ON or OFF. LEVEL • SIZE/POSITION : SIZE, POSITION, RETURN BLACK MASK Adjust BLC area window size.
- Page 14 SPECIAL DISPLAY FUNCTION : OFF, ON DISPLAY FUNCITON Adjust image display features from this menu. *FREEZE • FREEZE : OFF, ON MIRROR MIRROR IMAGE EFFECT NEGATIVE Image freeze can be turned ON or OFF. ROTATION • MIRROR : OFF, MIRROR, V-FLIP, BOTH(H/V) Image mirror or flip can be operated. PICTURE STYLE VIVID RETURN...
- Page 15 PRIVACY Privacy zone can be setup from this menu. PRIVACY MASK MODE : ON, OFF *MODE TYPE SQUARE Enable “PRIVACY ZONE” ON or OFF. MASK NO. MASK 1 DISPLAY TYPE : SQUARE, POLYGON COLOR BLACK Select privacy zone shape. POLY PIXEL POSITION-X MASK NO : MASK1 ~ MASK8 POSITION-Y...
- Page 16 SETUP Camera setup can be adjusted from this menu. SETUP CAM TITLE : OFF, ON *CAM TITLE RS485 Camera title can be turned ON or OFF. MENU COLOR COMMUNICATION : ON, OFF, AUTO FACTORY RESET SYSTEM INFO VISCA communication control can be adjusted. OUTPUT FORMAT 1080P60 RETURN...
- Page 17 RESET MODE : FACTORY, USER RESET Camera will reset to factory default or user saved value. *MODE FACTORY RESET : RESET SYSTEM INFO Reset the camera to the selected mode. SAVE AS USER RETURN SAVE AS USER : Save the user desired setting from the menu. Mode must be set to User.
-
Page 18: Specification
SPECIFICATION VIDEO LENS Image Sensor Lens 1/2.5” inch Progressive CMOS 3X Optical Zoom Lens, Sensor Size Diagonal 7.20mm 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)) Effective Pixels Horizontal: 3840, Vertical: 2160 STANDARD Pixel Size 1.62 µm x 1.62 µm Resolution SMPTE 2160p: 3840 x 2160/ 1080p SMPTE 292M, SMPTE 424M, SMPTE 2081-10 1080i : 1920 x 1080 / 720p : 1280 x 720 Resolution Rate 4K2160p : 30 / 29.97 / 25 / 24... - Page 19 QUESTIONS Visit us: www.aidaimaging.com/support E-mail us: support@aidaimaging.com Give us a Call: Toll Free: 844.631.8367 Tel: 909.333.7421 Operating Hours: Mon-Fri 8:00am – 5:00pm PST...
- Page 20 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream in accordance to laws designated by the government or the local authorities. 3.
