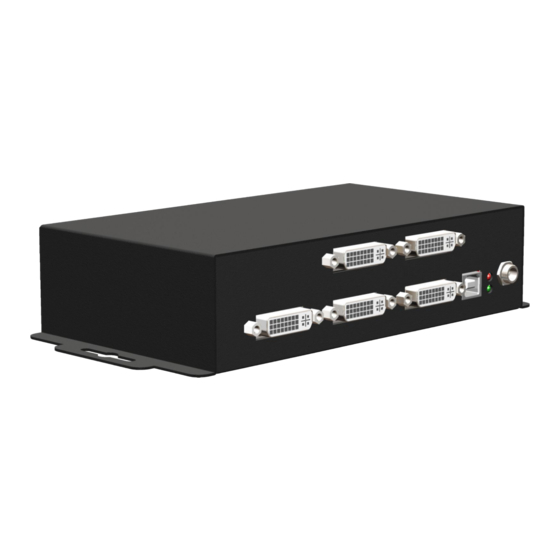

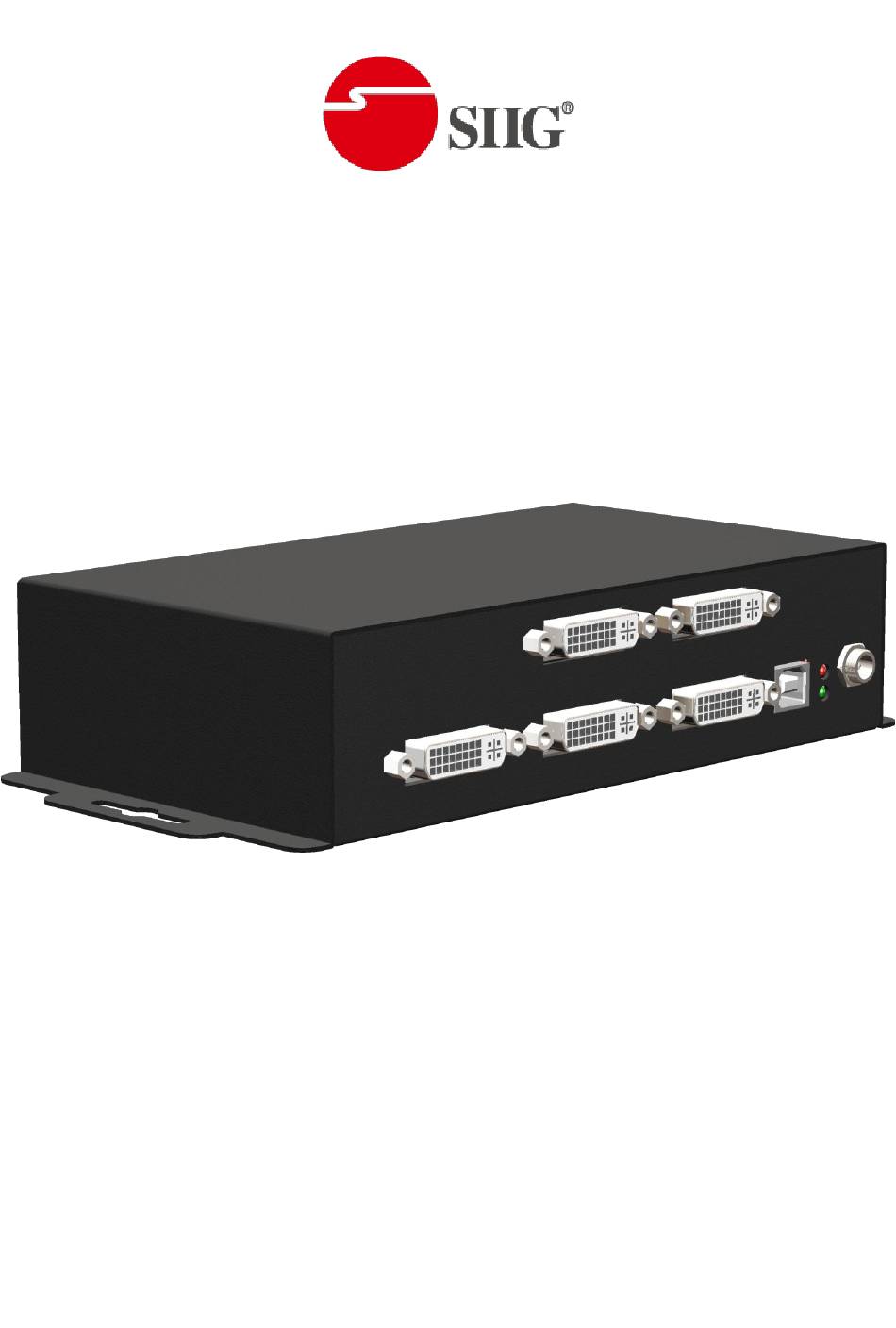

- Page 1 1x4 DVI Distribution Amplifier with HDCP Support P/N: AV-GM0553-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM0553-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
4 different locations without losing quality. To equip with HDMI compliant splitter chipsets, AV-GM0553-S1 is also good to be used as an advanced HDMI 4 port splitter. AV-GM0553-S1 is suitable for high quality PC broadcasting, digital signage and education... -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM0553-S1 Technical Role of usage 1x4 Distribution Amplifier (Splitter) DVI compliance DVI 1.1 HDMI compliance HDMI Deep Color & 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support Up to WUXGA [1920x1200@60Hz] & UXGA [1600x1200@60Hz] DTS-HD Master Audio, Dolby TrueHDM... -
Page 5: Panel Descriptions
Power consumption 3.2 Watt [max] Operation 0~40°C [32~104°F] temperature Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Rear Panel DVI IN: DVI input source DVI OUT: distributed DVI outputs USB IN: for firmware update use only Green LED: Signal indicator LED Red LED: Power indicator LED +5V DC: connect to 5V 2A interlocking power supply unit... -
Page 6: Hardware Installation
HARDWARE INSTALLATION Broadcasts DVI signal to 4 DVI displays! 1. Switch off all devices, including monitors. 2. Connect to the receivers. 3. Connect a DVI source (such as a Blu-ray Disc player or PC) to the DVI In. 4. Plug in 5V DC power supply unit. 5. -
Page 8: Notice
NOTICE 1. While connecting a new monitor to the splitter, experiencing a short period of time no display may be expected. Automatic EDID learning will analyze the newly connected monitor to see if the EDID for the DVI input is necessary to update! 2. -
Page 9: Warranty
Also, the technical information contained herein regarding the AV-GM0553-S1 features and specifications is subject to change without further notice. Support For more info or tech support http://www.siig.com/support...
