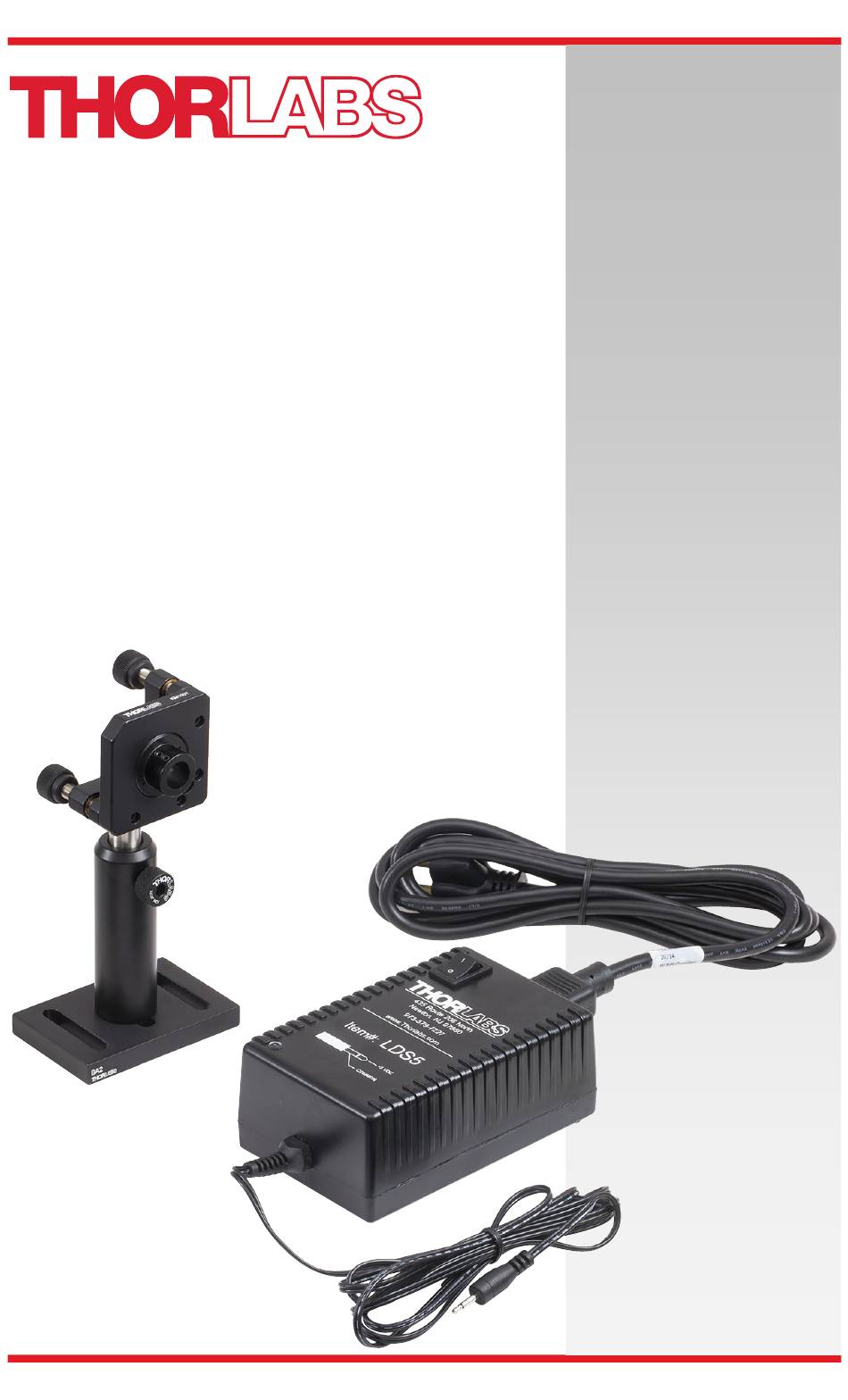

- Page 1 CPS11K, CPS11K-EC CPS Laser Diode Mounting Kit User Guide...
-
Page 2: Table Of Contents
Setting the LDS5 AC Line Voltage ..........5 5.2. Troubleshooting ............ 5 Chapter 6 Specifications ..............6 Chapter 7 Mechanical Drawing ............7 Chapter 8 Regulatory ................. 8 Chapter 9 Thorlabs Worldwide Contacts......... 9 ... -
Page 3: Chapter 1 Warning Symbol Definitions
Ø11 mm CPS Laser Diode Mounting Kit Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal... -
Page 4: Chapter 2 Safety
Ø11 mm CPS Laser Diode Mounting Kit Chapter 2: Safety Chapter 2 Safety SHOCK WARNING The LDS5 operates from AC voltages, which are potentially harmful and could cause serious injury. Turn the LDS5 power switch OFF and unplug the AC line BEFORE attempting to perform any line voltage changes or connecting or disconnecting any external equipment. -
Page 5: Chapter 3 System Description
Chapter 3: System Description Chapter 3 System Description The CPS11K(-EC) laser Kit is a complete CPS laser diode module mounting system, consisting of the mounting hardware and a DC power supply. The CPS11K(-EC) is designed for experimenters and system designers and includes everything needed to start experimenting with Thorlabs CPS series laser diode modules. -
Page 6: Chapter 4 Setup And Operation
Ø11 mm CPS Laser Diode Mounting Kit Chapter 4: Setup and Operation Chapter 4 Setup and Operation 4.1. Setup Unpack the contents of the kit. Insert a Laser Module into the AD11F and tighten setscrews with a 1/16" (1.5 mm) hex key (included) or ball driver. Note: The knurled knob used for focus adjustment on the focus adjustable laser modules is too large for the mounting adapter bore. -
Page 7: Chapter 5 Maintenance And Troubleshooting
AC receptacle. The CPS11K systems are shipped with the operating AC voltage set to 120 VAC, while the CPS11K-EC Metric versions are shipped with the operating AC voltage set to 230 VAC. If this needs to be changed, follow the instructions below: Make sure the LDS5 is turned off, and remove the AC line cord. -
Page 8: Chapter 6 Specifications
Ø11 mm CPS Laser Diode Mounting Kit Chapter 6: Specifications Chapter 6 Specifications Power Supply LDS5 Performance Specifications Type Linear, DC Output Input 105 – 132, 200 – 264 VAC, 50 – 60 Hz Input Receptacle IEC 320 Style Output 5 VDC, 330 mA Output Connector Male: 2.5 mm, Tip (+) -
Page 9: Chapter 7 Mechanical Drawing
Ø11 mm CPS Laser Diode Mounting Kit Chapter 7: Mechanical Drawings Chapter 7 Mechanical Drawings 1.75" (44.4 mm) 0.39" (9.9 mm) KM100T Kinematic Mount 0.30" 1.94" (7.6 mm) (49.3 mm) AD11F Threaded Adapter 1/16" with SM1 (1.035-40) Series (1.5 mm) 1.97"... -
Page 10: Chapter 8 Regulatory
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 11: Thorlabs Worldwide Contacts
Chapter 9 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. sales@thorlabs.com sales.uk@thorlabs.com techsupport@thorlabs.com techsupport.uk@thorlabs.com Europe Scandinavia... - Page 12 www.thorlabs.com...
