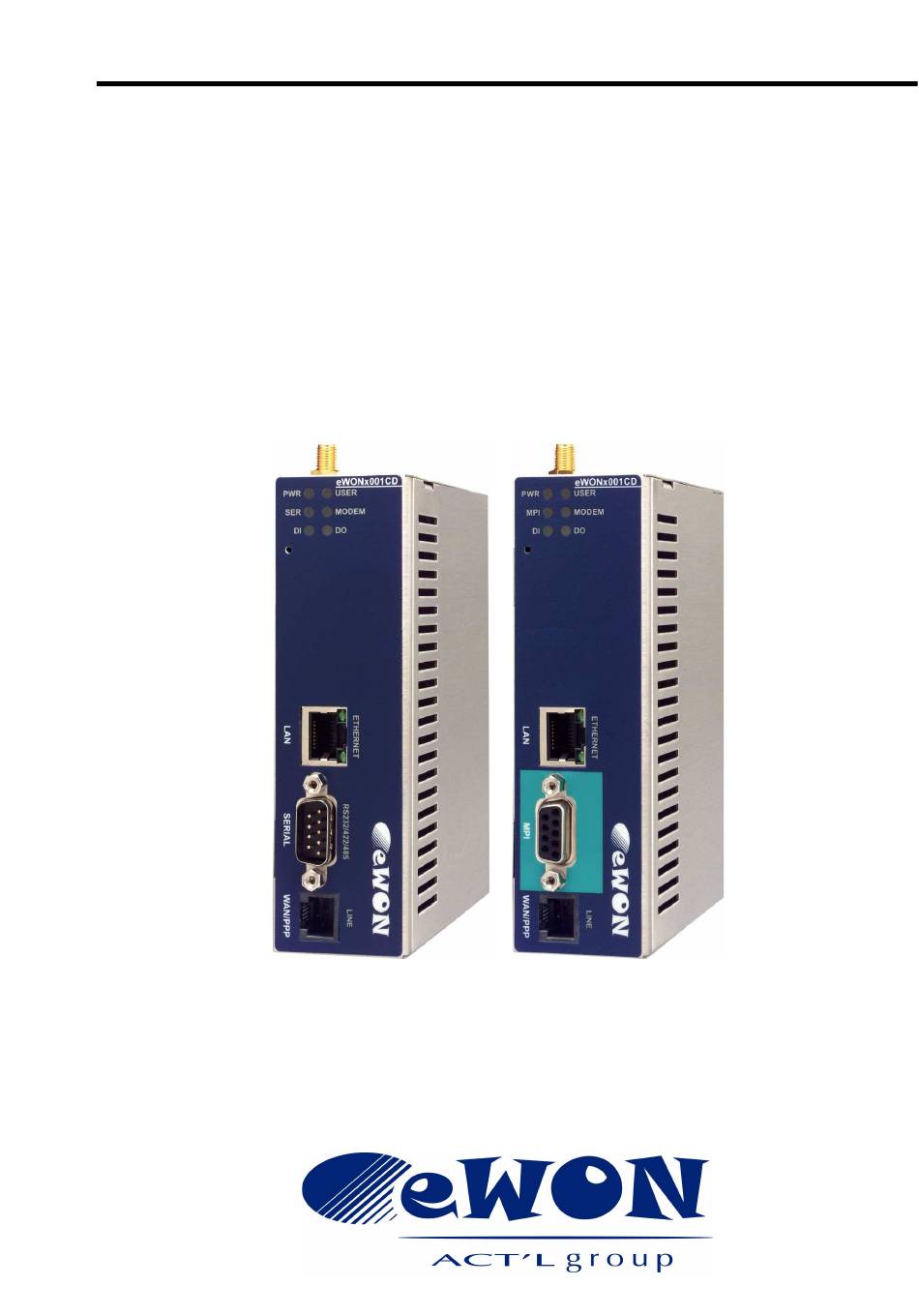

- Page 1 eWON 2001CD™ eWON eWON eWON Ethernet Gateway Remote Access Server (RAS) Programmable Industrial Router (PIR) Installation Guide Rev. 1.3 Cool Internet Telecontrol Solutions...
-
Page 2: Table Of Contents
1 Product description ................3 1.1 Introduction....................3 1.2 General specification of the hardware platform ..........3 1.3 Functions of the eWON2001CD™ ..............3 1.3.1 General ....................3 1.3.2 Remote Access Server functions ..............3 1.3.3 Ethernet to Serial Gateways ............... 4 1.3.4 Programmable Industrial Router functions ............ -
Page 3: Product Description
1 Product description 1.1 Introduction The eWON2001CD™ is the Compact Design evolution of the eWON2001™. The eWON2001CD™ is the entry level industrial-grade Router for System Integrators in utilities/infrastructure projects and machin Builders/OEMs. See our web site http://www.ewon.biz to get further information about the eWON range. -
Page 4: Ethernet To Serial Gateways
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 1.3.3 Ethernet to Serial Gateways • MODBUS TCP to MODBUS RTU • XIP to UNITELWAY • EtherNet/IP™ to DF1 • FINS TCP to FINS Hostlink • ISOTCP to PPI (optionnaly MPI) •... -
Page 5: Part Numbers And Internal Options
• 3 = ISDN EU modem • 4 = PSTN 56k modem • 8 = GPRS quad band • A = HSUPA modem • B = UMTS Global Examples of Part Numbers for the eWON2001CD™ platform: Type/Description Part Number eWON2001CD™/ISDN (ISDN modem) EW31203 eWON2001CD™/PSTN 56 (PSTN 56 modem) -
Page 6: Ewon Technical Documentation
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 2 eWON technical documentation The eWON technical documentation is structured in 4 different levels as shown in the table below: Level Title Contents Detailed description of the hardware platform, of its interfaces, available options. Hardware Hardware specifications, conformity to standards. -
Page 7: Housing And Markings

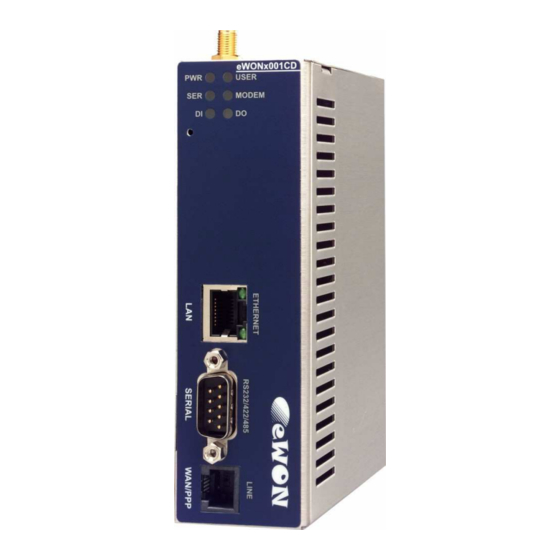

eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 3 Housing and markings 3.1 Housing Interfaces Power Ground Digital IO GSM antenna connector Leds Reset button hole LAN ETH port Ethernet 10/100 Serial port or MPI port WAN PPP port Din rail latch (phone line) &... -
Page 8: Markings
The power supply must be 1001 = year+week 56kb limited to max 850mA and 0001 = sequential number ../GPRS QB= GPRS quad- be SELV-compliant (safety 50 = suffix eWON2001CD™ band modem voltage) Firmware Language Hardware spec. ISO = isolated serial port... -
Page 9: Equipment Information And Versions
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 3.4 Equipment information and versions The eWON hardware and software revisions can be checked with a web browser on the eWON server. Once logged onto the eWON, clicking on the eWON logo shows these revisions. IP address Software version... -
Page 10: Mechanical Outline
To put the unit in place, insert the upper slider into the upper part of the rail, with the eWON™ tiled around 20° . Then push and rotate the eWON™ downward to put the unit right. The eWON2001CD™ is now safely fastened. (*) For HSUPA modem, the SIM card drawer is located on eWON top side. -
Page 11: Mounting And Environmental Conditions
3.8 Specification for external power supply selection The eWON2001CD™ has to be supplied by an external voltage source ranging from 12 to 24 VDC. The power supplied must be a Class 2 or Level 3, SELV-compliant (security voltage) and limited in current to a max of 850mA. -
Page 12: Auto Fuse
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 3.8.1 Auto fuse An auto fuse placed just after the power input protects the eWON devices against short circuits. This component returns by itself to its normal state when the short circuit has disappeared and after the component has been cooling down. -
Page 13: Specifications Of Communication Interfaces And I/Os
2001CD™ eWON eWON eWON Installation Guide ver 1.3 5 Specifications of communication interfaces and I/Os Ethernet Port The eWON2001CD has one ethernet interface: • a LAN (Local Area Network) with one port Specification Value Applicable standard 10/100BaseTX Isolation 1,5 kV... -
Page 14: Embedded Gprs Quad Band Modem (Optional)
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 5.4 Embedded GPRS quad band Modem (optional) Specification GPRS QB Quad band EGSM Bands 900/1800/850/1900 Class GPRS Class 10 Max baud rate 14.4 kbps Compliant to standards R&TTE, CE, FCC Certificate number Antenna connector (*) Type SMA-F Table 7: GPRS QB modem specification... -
Page 15: Embedded Hsupa Modem (Optional)
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 5.6 Embedded HSUPA modem (optional) Specification HSUPA Quad band EGSM (900/1800/850/1900 MHz) Bands Tri band UMTS/HSUPA (850/1900/2100 MHz) GPRS Multi-slot Class 12 Class EDGE Multi-slot class 12 Max baud rate 921 kbps Compliant to standards R&TTE, CE, FCC Certificate number... -
Page 16: Configurable Serial Port
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 5.7 Configurable serial port Specification Value Physical modes (configurable) RS232/RS485/RS422 Isolation not isolated Pinout connector See label and appendix (Serial Port on page 27) Table 10: Serial port specification The configuration of the physical serial mode is done by a set of 4 dip switches located on left side of the unit. -
Page 17: Mpi Port
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 5.8 MPI port The MPI port is easily identifiable with its light blue square surrounding a female DB9 connector. Specification Value Physical mode • kBauds • 19.2 kBauds • 45.45 kBauds •... -
Page 18: Digital Output
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 5.10 Digital output Specification Value Type of output Open drain (MOSFET) Max current (external source) 200mA @ 30 VDC Isolation 3,5 kV Pinout connector See label and appendix (Input/Outputs on page 26) Table 13: Specification of the digital output This digital output is activated by an open drain MOSFET transistor driven by an optocoupler. -
Page 19: Ip Parameters Configuration
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 6 IP parameters configuration Warning: normally you cannot communicate with a device of which you don’t know the IP parameters. Therefore, there is a special tool (called “eBuddy”) you can download from the eWON Internet site http://www.ewon.biz. -
Page 20: Resets
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 6.1 Resets Warning: you should not reset your eWON unless you have been told to do so by someone of our technical support. The concerned files (differs depending on reset type) are totally lost and unrecoverable after being formatted. -
Page 21: Technical Support
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 7 Technical support If you need technical support, simply fill out the form on the Web site http://www.ewon.biz or send an email with the problem description to support@ewon.biz. You will also find usefull documentation at http://support.ewon.biz Appendix: Pinouts and connections 8.1 Power Supply... -
Page 22: Ethernet
Installation Guide ver 1.3 8.2 Ethernet By default, only the LAN Ethernet interface of the eWON2001CD can be used to access the internal WebSite. 8.2.1 Ethernet LAN The eWON can be accessed by a 10/100BaseTX Ethernet connection. This connection can be made with two different cables (straight or crossed). -
Page 23: Direct Connection
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 8.2.2 Direct connection If the eWON is connected directly to a PC, then use the crossed cable: Crossed cable As the LAN interface is “autosense”, you can use a crossed or straight ethernet cable, but generally, a direct connection is done with a crossed cable. -
Page 24: Connection Over Hub/Router
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 8.2.3 Connection over hub/router If the eWON is connected to a hub, it has to be connected like any other device, with a straight cable. Again, the wiring is as shown on the following picture, and care should be taken to keep the RX and TX signals on twisted pairs: Hub/Router Straight... -
Page 25: Rj45 Connector
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 8.3 RJ45 connector The RJ45 connector has got the following pins numbering, as it can be seen on the following picture, showing it from different angles: page 25 of 30... -
Page 26: Input/Outputs
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 8.4 Input/Outputs Mating female connector (included): Manufacturer: Sauro http://www.sauro.net/ Part Number: CTF050VT Description Output digital signal (0V ground) DO_GND connected to the emitter of the transistor Output digital signal connected to the drain of the MOSFET transistor Common of the external predrive power DO_VDC... -
Page 27: Serial Port
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 8.5 Serial Port Mating female connector (not included): Type Female DB9 with 4/40 blocking screws Pinout serial port (according to mode): RS232 RS485 RS422 Table 18: Pinout serial port page 27 of 30... -
Page 28: Mpi Port
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 8.6 MPI port Mating male connector (not included): Type Male DB9 with 4/40 blocking screws MPI port pinout (DB9 female): B(+) A(-) Table 19: MPI port page 28 of 30... -
Page 29: Pstn / Isdn Phone Line Connector
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 8.7 PSTN / ISDN phone line connector Mating male conector (not included): Type: RJ11 type "6P2C" without shield • Pinout PSTN line: Description RING Table 20: pinout PSTN modem • ISDN phone line mating male connector pinout (RJ11): Description Table 21: ISDN connector pinout 8.8 Antennar... -
Page 30: Antenna Specifications
eWON 2001CD™ eWON eWON eWON Installation Guide ver 1.3 8.8.2 Antenna specifications For eWON with GSM/GPRS/EDGE/HSUPA modem, the antenna specification is as follows: Specification Value Type Quadband 850/900/1800/1900 MHz Impedance 50 Ohms VSWR Max. 2.0 Antenna used must not exceed a gain of: Gain 8.4 dBi @ 850 MHz...
