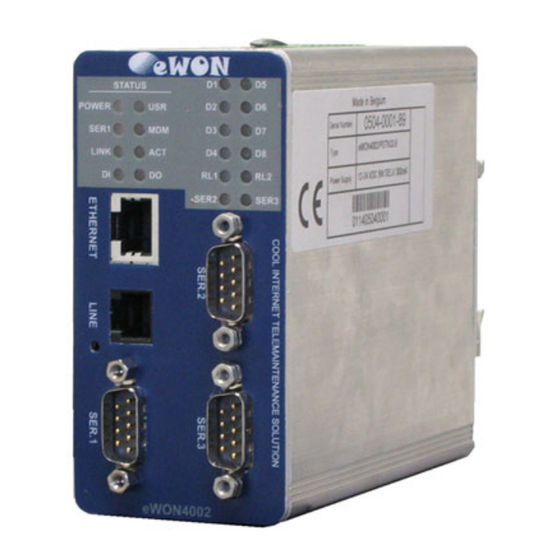

eWON4002™
E t h e r n e t G a t e way
Re m o t e A c c e s s S e r ve r ( R A S )
P r o g ra m m a b l e I n d u s t r i a l Rou t e r ( P I R )
D a t a l o g g e r
I n t e g ra t e d I n p u t / O u t p u t
3 s e r i a l Por t s
INSTALLATION GUIDE
Rev. 2.04 - 3/18/05
Cool
Internet
Telecontrol
Solutions
Advertisement
Table of Contents
Related Manuals for ACT'L eWON4002
Summary of Contents for ACT'L eWON4002
-

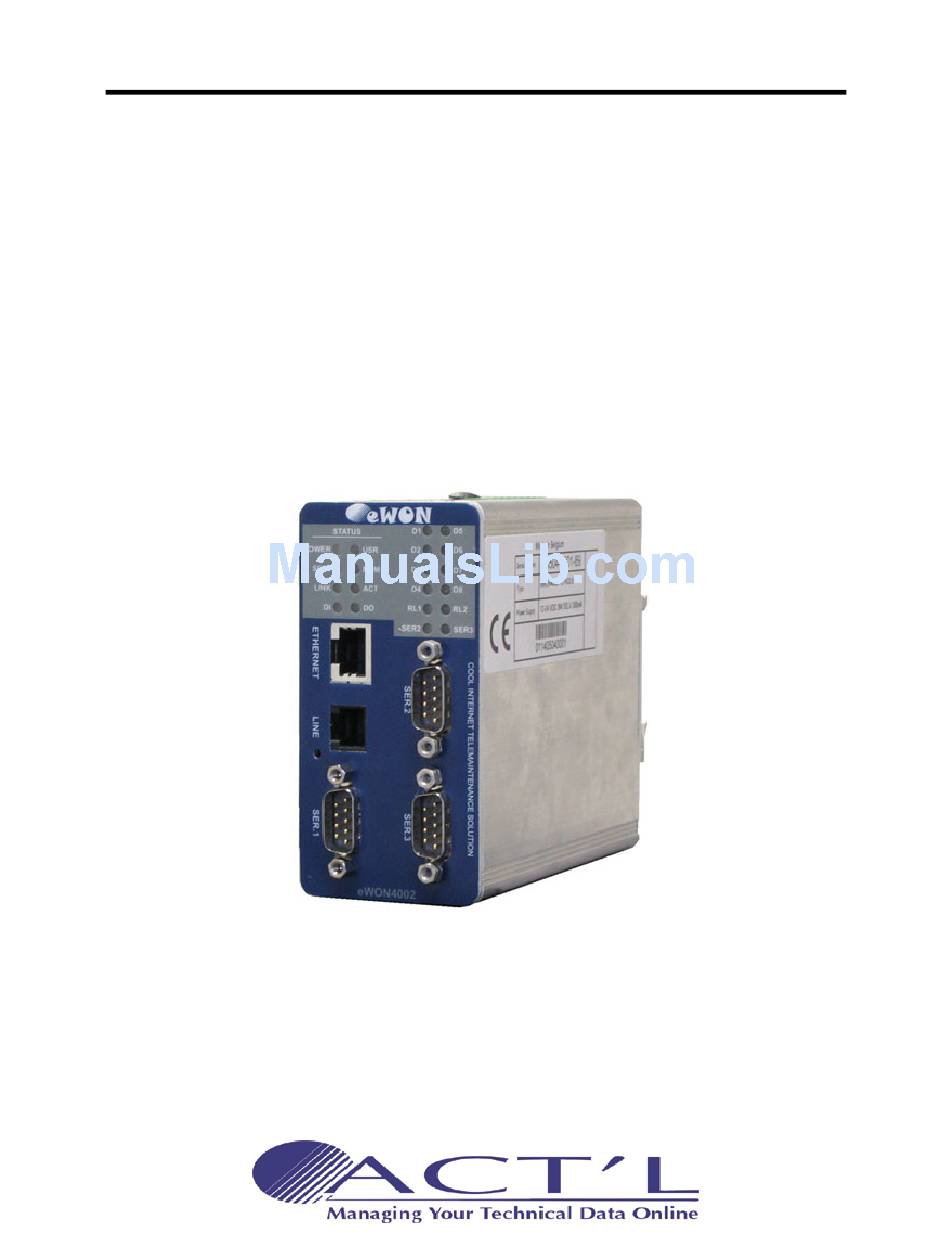

Page 1: Installation Guide
E t h e r n e t G a t e way Re m o t e A c c e s s S e r ve r ( R A S ) P r o g ra m m a b l e I n d u s t r i a l Rou t e r ( P I R ) -
Page 2: Table Of Contents
Installation Guide Table Of Contents 1 Product description ... 1 1.1 Introduction...1 1.2 General specification of the hardware platform ...1 1.3 Ethernet Gateway ...1 1.4 RAS Modem & PIR ...2 1.4.1 Remote Access Server functions... 2 1.4.2 Programmable Industrial Router functions ... 2 1.5 Datalogger ...2... - Page 3 Installation Guide Table Of Contents 6.2 By phone line or GSM ...20 6.2.1 Under Windows 98, NT and 2000... 20 6.2.2 Under Windows XP ... 21 7 IP parameters configuration... 22 8 Technical support ... 23 8.1 Resets ...23 8.1.1 User Reset ...
-
Page 4: Product Description
It is secure because it meets the toughest industrial standards, and it provides restricted access features (required in open networks). The hardware platform of the eWON4002™ is a standard eWON® that embeds a modem (PSTN or GSM/GPRS). -
Page 5: Ras Modem & Pir
• aa = Type of hardware platform: • 05 = eWON500™ • 21 = eWON2001™ • 41 = eWON4001™ • 42 = eWON4002™ • 12 = eWON1002™ • b = Power supply: • 1 = Universal 110-230VAC • 2 = Low voltage DC power supply eWON4002™... -
Page 6: External Accessories
• 01 = NO modem (Ethernet only) • 02 = PSTN modem • 05 = GSM/GPRS modem • /xy = Options: The only option of the eWON4002™ is the modem type. Available Part Numbers for the eWON4002™ platform: Type/Description ™... -
Page 7: Structure Of The Ewon® Technical Documentation
BASIC and HTML syntax. (Exists for all platforms) • Unitelway topology Gateway XIP • Unitelway for Schneider PLC • Gateway MPI for Siemens PLC and Gateway for IP devices • Etc, etc. ® technical documentation different levels page 4 of 35 ve r 2 . -
Page 8: Housing And Markings
Reset button Configurable serial port 1 Digital I/O connector Analog input connector eWON4002™ Insta ll a ti o n G ui d e Figure 1: Housing, front view Relay connector Figure 2: Housing, bottom view page 5 of 35 ve r 2 . 0 4... -
Page 9: Markings
Figure 3: eWON® Label page 6 of 35 ve r 2 . 0 4 Serial number 0504 = year+week 0001 = sequential number 89 = suffix eWON4002 ™ COM type ../33.6 = PSTN modem at 33.6 kb ../GPRS = GSM modem... -
Page 10: Equipment Information And Versions
System Info (I/O, Modem, free memory) 3.5 Mechanical outline eWON4002™ Insta ll a ti o n G ui d e 20). Once logged onto the eWON®, clicking on the eWON® logo shows Figure 4: eWON® info page details Figure 5: Mechanical outline page 7 of 35 ve r 2 . -
Page 11: Mounting And Environmental Conditions
The eWON® unit has an IP31 protection grade. It is therefore not suited for outdoor mounting. The design of the unit is such that it has to be integrated in an enclosed electrical cabinet, protected from excessive heat, humidity and dust. The eWON4002™ is complying to the CE-marking requirements regarding electromagnetic compatibility (EMC) within an industrial environment. -
Page 12: Preparing The Installation
3.8 Specifications for external power supply selection The eWON500™ eWON2001™ eWON4001™ eWON4002™ has to be supplied by an external voltage source ranging from 12 to 24 VDC. The power supplied must be SELV-compliant (security voltage) and limited in current to a max of 300mA. -
Page 13: Front Panel Control Leds
2 . 0 4 Insta ll a ti o n G ui d e 4 Front panel control LEDs USER (bicolor) MODEM (green) POWER (green) Hardware status flashing ON = DCD ON = Power Supply green = normal state (life):... -
Page 14: Communication Interfaces And I/Os
Specification Bands GPRS Class Max baud rate Compliant to Certificate number Antenna connector eWON4002™ Insta ll a ti o n G ui d e Value 10/100BaseTX See label and appendix Table 5: Ethernet port specification Connection over hub/router on page (V34) 33.600 bps... -
Page 15: Recommendations For The Gsm/Gprs Antenna
2 . 0 4 Insta ll a ti o n G ui d e 5.3.1 Recommendations for the GSM/GPRS antenna A dual band GSM/GPRS antenna is available as accessory (ref EW40902). Here are our recommendations for GSM... -
Page 16: Serial Ports
Insta ll a ti o n G ui d e 5.4 Serial ports The eWON4002™ is provided with 3 serial ports, 2 of which (port 1 and port 3) are configurable (RS485, RS422, RS232), and one (port 2) is a full RS232 (with all control lines present). -
Page 17: Serial Port #2
5.4.2 Serial port #2 Specification Physical mode Normal isolation Pinout connector Termination/polarization eWON4002™ Insta ll a ti o n G ui d e WITHOUT polarisation and termination resistors WITH polarisation and termination resistors Table 10: Serial mode configuration switches NOT ISOLATED... -
Page 18: Dip Switch
2 . 0 4 Insta ll a ti o n G ui d e 5.4.3 Serial port #3 Specification Value Physical modes (configurable) RS232/RS485/RS422 Normal isolation NOT ISOLATED Pinout connector See label and appendix (Relays output on page... -
Page 19: Digital Inputs
One state voltage range (ON) One state current (ON) Isolation Max frequency Pinout connector eWON4002™ Insta ll a ti o n G ui d e WITHOUT polarisation and termination resistors WITH polarisation and termination resistors Table 13: Serial mode configuration switches 24 VDC isolated Digital Input - “sink”... -
Page 20: Digital Outputs
Warning: note that this is a sink only output to ground (the transistor acts like a switch to ground). eWON4002™ Insta ll a ti o n G ui d e... -
Page 21: Relays
• To configure a channel to voltage input, place the matching switch to OFF. • To configure a channel to current input, place the matching switch to ON. eWON4002™ Insta ll a ti o n G ui d e SPST NO relays (Single Pole, Single Throw,... -
Page 22: Resistive Temperature Detector Inputs
These inputs are differential PT100 inputs that can be used with any classical 100 Ohm PT100 sensing element. Specification Type Method Range Resolution eWON4002™ Insta ll a ti o n G ui d e 0 to 10 VDC 12 bits (5 mV) 12VDC (automatic fuse) 12 bits (10 µA) -
Page 23: Communicating With The Ewon
13 ) You can now access the different Web pages of the eWON® and, among others, configure your connection parameters by selecting the following options in the menu of the home page: eWON4002™ Insta ll a ti o n G ui d e... -
Page 24: Under Windows Xp
• To configure the Ethernet IP address: <Configuration>, <System Setup>, <Communication>, <Ethernet> • To configure the PPP IP address: <Configuration>, <System Setup>, <Communication>, <DialUp (PPP)> eWON4002™ Insta ll a ti o n G ui d e IP parameters configuration on page page 21 of 35 ve r 2 . -
Page 25: Ip Parameters Configuration
10.0.0.0 et 10.0.0.255. Contact your network administrator in order to obtain an IP client address that is compatible with those of your organisation. eWON4002™ Insta ll a ti o n G ui d e page 22 of 35 ve r 2 . -
Page 26: Technical Support
Power the eWON® off and on again to restart in normal mode. As described previously, the eWON® returns to its default COM parameters and IP addresses after this level 2 reset is performed. eWON4002™ Insta ll a ti o n G ui d e http://www.ewon.biz... -
Page 27: Appendix: Pinouts And Connections
Figure 14: Power supply mating female connector (included) • Power supply mating female connector (included): Phoenix Contact GmbH Manufacturer Part Number • Power supply connector pinout: eWON4002™ Insta ll a ti o n G ui d e Power supply connector Pin 1 http://www.phoenixcontact.com MVSTBW2,5/4-STF-5.08... -
Page 28: Ethernet
2 . 0 4 Insta ll a ti o n G ui d e 9.2 Ethernet Ethernet connector The eWON® can be accessed by a 10/100BaseTX Ethernet connection. This connection can be made with two different cables (straight or crossed). These cables have 8 copper conductors and are known as UTP Class 5 with RJ45 terminations at both ends. -
Page 29: Connection Over Hub/Router
RX and TX signals on twisted pairs: Straight cable Straight cable eWON4002™ Insta ll a ti o n G ui d e Twisted pair 1 Twisted pair 2 Figure 15: Crossed cable cabling Hub/Router page 26 of 35 ve r 2 . -
Page 30: Rj45 Connector
2 . 0 4 Insta ll a ti o n G ui d e 9.3 RJ45 connector The RJ45 connector has got the following pins numbering, as it can be seen on the following picture, showing it from... -
Page 31: Digital Input/Output Connector
DO_VDC Common of the external predrive power supply (between +12 et +24 VDC) DI_GND Ground of the input (isolated) Input digital signal eWON4002™ Insta ll a ti o n G ui d e Figure 17: Digital Input/Output connector Sauro http://www.sauro.net/... -
Page 32: Analog Input
Manufacturer: Part Number: • Analog Input connector pinout: AGND -RTD1 +RTD1 -RTD2 +RTD2 eWON4002™ Insta ll a ti o n G ui d e connector Figure 18: Analog Input connector Phoenix http://www.phoenixcontact.com MVSTBW2,5/9-STF-5.08 Table 22: Analog Input connector references Description... -
Page 33: Relays Output
• Relays Output mating female connector (included): Manufacturer: Part Number: • Relays output connector pinout: RL1 a RL1 b RL2 a RL2 b eWON4002™ Insta ll a ti o n G ui d e Relay connector Figure 19: Relays Output connector Phoenix http://www.phoenixcontact.com MVSTBW2,5/4-STF-5.08... -
Page 34: Digital Input
• Digital Input mating female connector (included): Manufacturer: Part Number: • Digital Input connector pinout: ISOGND ISOGND eWON4002™ Insta ll a ti o n G ui d e Figure 20: Digital Input connector Phoenix http://www.phoenixcontact.com MVSTBW2,5/10-STF-5.08 Figure 21: Digital Input connector references... -
Page 35: Serial Ports
2 . 0 4 Insta ll a ti o n G ui d e 9.5 Serial Ports Serial port 2 Serial port 1 Serial port 3 Figure 22: Serial ports connectors Type Female DB9 with 4/40 blocking screws... -
Page 36: Pinout Serial Ports 1 And 3 (According To Mode)
9.5.1 Pinout serial ports 1 and 3 (according to mode): 9.5.2 Pinout serial port 2 eWON4002™ Insta ll a ti o n G ui d e RS232 Table 27: Serial ports 1 and 3 pinout Table 28: Serial port 2 pinout page 33 of 35 ve r 2 . -
Page 37: Unitelway/Modbus Serial Cable
MiniDIN connector at the PLC side. MiniDIN PIN Connector shield Table 29: MiniDin and SubDB9 connectors pinout D(A) is connected to B- and D(B) is connected to A+ eWON4002™ Insta ll a ti o n G ui d e Schneider Signal eWON® Signal Name Name... -
Page 38: Pstn Phone Line Connector
Type Figure 24: PSTN phone line mating male connector type • PSTN phone line mating male connector pinout: eWON4002™ Insta ll a ti o n G ui d e Figure 23: PSTN phone line connector RJ11 type "6P2C" without shield...
