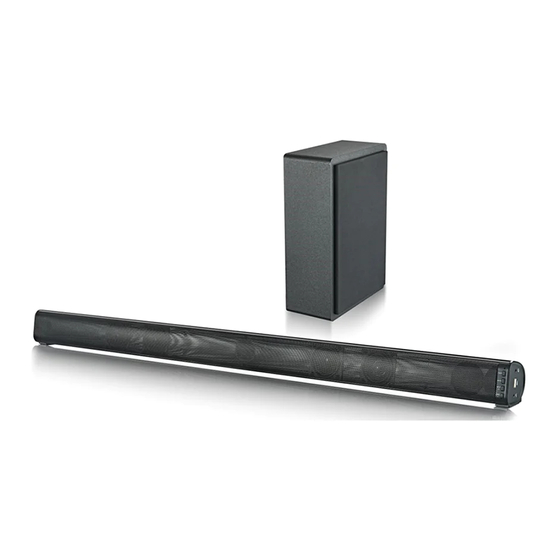

- Page 1 95cm 2.1CH BT Soundbar with Wireless Soundbar SB21204WS USER MANUAL TEAC Warranty Service Hotline 1300 553 315 Call us between Monday to Friday - 8.30AM to 5PM AEST *Please have your purchase receipt and the product's serial number ready For other enquiries and support please visit...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Heed all warnings and follow all instructions. • Do not use this soundbar near water. • Clean the unit with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •... - Page 3 QUICK SYSTEM INSTALLATION GUIDE Place the paper guide on the wall where Verify with a level gauge that the inclination you want to hang the soundbar. angle of the soundbar is zero degrees. Locate the screw holes on the paper Make the holes with the corresponding guide and mark a point with a pencil.
-
Page 4: Package Contents
PACKAGE CONTENTS • SB21204WS Soundbar • Remote Control • Power Adaptor • AUX In cable • User manual • 3.5mm to 3.5mm Line In cable • Subwoofer CONTROL AND FUNCTIONS Side View/Control Buttons 1. Power 2. Mode (short press) Play/Pause (long press) 3. - Page 5 CONTROL AND FUNCTIONS Remote Control Using the Remote Control The remote control sensor at the front of the soundbar is sensitive to the remote control’s commands up to a maximum of 8 metres away and within a maximum arc of 30 degrees. Please note that the operating distance may vary depending on the brightness of the room.
-
Page 6: Wireless Subwoofer
SOUNDBAR HOOK SCHEMATIC WIRELESS SUBWOOFER... - Page 7 USING THE AUX IN CABLE 1. Use the AUX Stereo Audio Cable (included) to connect to the TV’s stereo AUX (L/R) audio output socket. 2. Connect the audio output cable of the soundbar via the ‘AUX’ input sockets of the unit. Then press MODE on the remote control or press the Mode button on the unit to scroll to the AUX IN function.
-
Page 8: Connecting To The Mains Supply
CONNECTING TO THE MAINS SUPPLY 1. Ensure that the power supply voltage is in the voltage of 100V~240V. Connecting the unit to any other power source may cause damage to the unit. 2. Unwind the mains cable to its full length. 3. -
Page 9: Connecting The Soundbar And Subwoofer
2. Select and press the MODE button repeatedly on the remote control until in Bluetooth mode or press the Mode button repeatedly on the sound bar to enter Bluetooth mode. 3. Using the native controls on your Bluetooth device, select the “SB21204WS” in your Bluetooth settings to pair. -
Page 10: Playing Audio Wirelessly
PLAYING AUDIO WIRELESSLY 1. Follow the instructions for pairing a Bluetooth device. 2. Use the native controls on the connected Bluetooth Device to select a track. 3. Long Press the ‘Play/Pause’ button to Play or Pause the track. 4. Skip Forwards/Backwards to a selected track using the remote control. 5. -
Page 11: Troubleshooting
TROUBLESHOOTING If you are experiencing any issues with your device please refer to the below table for a solution. ISSUE POSSIBLE CAUSE/SOLUTION Check if the power is switched on or off at the wall. No power/function Check whether the power adaptor is properly connected to the power outlet. -
Page 12: Terms And Conditions
The serial number of the product is missing or has been tampered with. 6. No one is authorised to assume any liability on behalf of TEAC or impose any obligation on it, in connection with the sale of any equipment other than as stated in this warranty and outlined above.
