Universal Furniture 597636 Instruction Sheet

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
parts that may have come loose inside the carton during shipment.
Caution: (1) These parts are cumbersome and heavy. This product can best be assembled with the
assistance of one or more persons in order to prevent personal injury and to insure parts are not damaged
during the assembly process. If dirty, clean finished parts with mild dishwashing liquid and water solution
applied on damp cloth. Cloth should not be excessively wet. Polish finish with soft cloth and an industry
recognized furniture polish.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for
stain residue and rough surfaces and also check for staples or nails left after removing the packaging material.
The manufacturer will not be held responsible if preventative steps are not taken prior to installation.
(3) Unpack and dispose of all packing material but be careful not to throw away any assembly parts
or hardware. Read the instruction sheet and parts list carefully. Remove all staples and screws used for
packaging carefully using pliers and or screwdrivers to prevent injury and scratching or damaging flooring.
(4) During normal use everyday, screws, bolts, nuts and wooden plugs may loosen up. They should
be periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or
cause injury. Always check to be sure all hardware on this list and the above mentioned components is
attached to the furniture properly and kept tightened at all times.

PARTS LIST:

# Description
A Chair Back
C Left Leg
E Stretcher

Assembly Procedure:

Caution: Please do not over-tighten bolts during assembly.
Note: First read the chair leveling instructions. This is an additional assembly instruction sheet found inside
the carton. Turn the seat board at a slight angle when assembling to the seat frame, this will ensure the
notches in the seat cushion fit properly with the back post.
Step1: Place all chair parts on a soft and smooth surface.
Step2: Take off plastic cover on upholstery seat. Assemble Chair Back (A) with back rail of Seat Frame (B)
using---#3(bolt + spring washer + flat washer).
Step3: Assemble rear corner blocks of Seat Frame (B) with back posts using---#2 (bolt + spring washer + flat
washer).
Step4: Assemble Stretcher (E) with Chair Back (A) using Screw---#4. Don't over tighten.
Step5: Assemble front corner blocks of Seat Frame (B) with Right Leg (D) and Left Leg (C) using---#1 (bolt +
spring washer + flat washer). Then tighten all bolts completely using wrench (5). At the same time,
Attach stretcher (E) to Left Leg (C) and Right Leg (D) using Screw---#4. Tighten screws with
screwdriver (not provided). The front legs are marked left & right.
Step6: After making sure all bolts are attached and hand tightened, turn the chair over.
Step7: Put the Upholstery Pad (F) on the Seat Frame (B). Straighten the ribbon at bottom of the cushion.
Joined with velcro on the seat frame.
INSTRUCTION SHEET
597636
Qty.
1pc
1pc
1pc

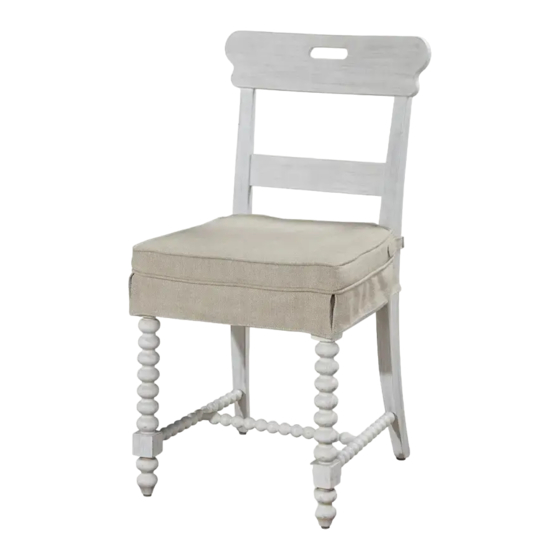

KITCHEN CHAIR
Description
#
B Seat Frame
D Right Leg
F Upholstery Pad
Qty.
1pc
1pc
1pc
