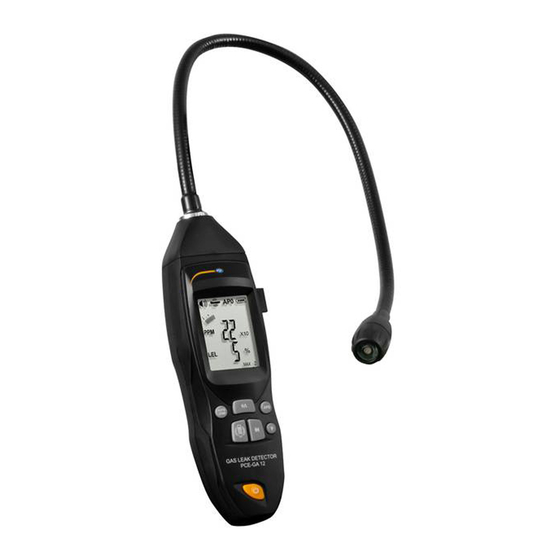

- Page 1 User Manual PCE-GA 12 Leak Detector User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 13 May 2020 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Before use ........................1 Use ..........................2 Further functions .................. 3 Display backlight ......................3 Auto zero.......................... 3 Auto Power Off ......................... 3 Sensitivity ......................... 3 Alarms ..........................3 Troubleshooting ..................3 10 Warranty ....................4 11 Disposal ....................4 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Features
− Ammonia − Benzene − Ethane − Ethanol − Ethylene − Formaldehyde − Hexane − ISO-Butane − Methane − Propane − P-Xylene − Hydrogen sulfide − Toluene − Hydrogen − and compounds in which these gases occur © PCE Instruments... -
Page 5: Technical Specifications
Sensor shelf life approx. 5 years (sensor is exchangeable) Probe Semi-rigid, approx. 500 mm Weight Approx. 430 g Delivery contents − 1 x gas leak detector PCE-GA 12 − 1 x charger − 1 x user manual © PCE Instruments... -
Page 6: Device And Display Description
5 – Bar graph 6 – Concentration display 7 – LEL display 8 – Automatic zero 9 – Battery level 10 – Factory settings 11 – Sensitivity high 12 – Sensitivity low 13 – LEL reading 14 – Maximum reading © PCE Instruments... -
Page 7: Operation
A 100 % concentration exposure can destroy the sensor. − If the gas is not detected, the device is not ready for use. − After the gas test, wait until the display shows “0”. © PCE Instruments... -
Page 8: Use
Audible alarm frequency x/s Sensitivity high No alarm 0 … 100 0 … 1000 100 … 400 1000 … 4000 1.65 400 … 700 4000 … 7000 3.25 700 … 1000 7000 … 10000 6.25 >1000 >10000 © PCE Instruments... -
Page 9: Further Functions
Troubleshooting Error Possible cause Solution Meter cannot be turned on Battery flat Charge battery Display flashes Replace sensor Continuous signal tone Sensor defective ESS-PCE-GA 12 CAL is displayed Calibration is due Contact PCE Instruments for calibration © PCE Instruments... -
Page 10: Warranty
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 11 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
