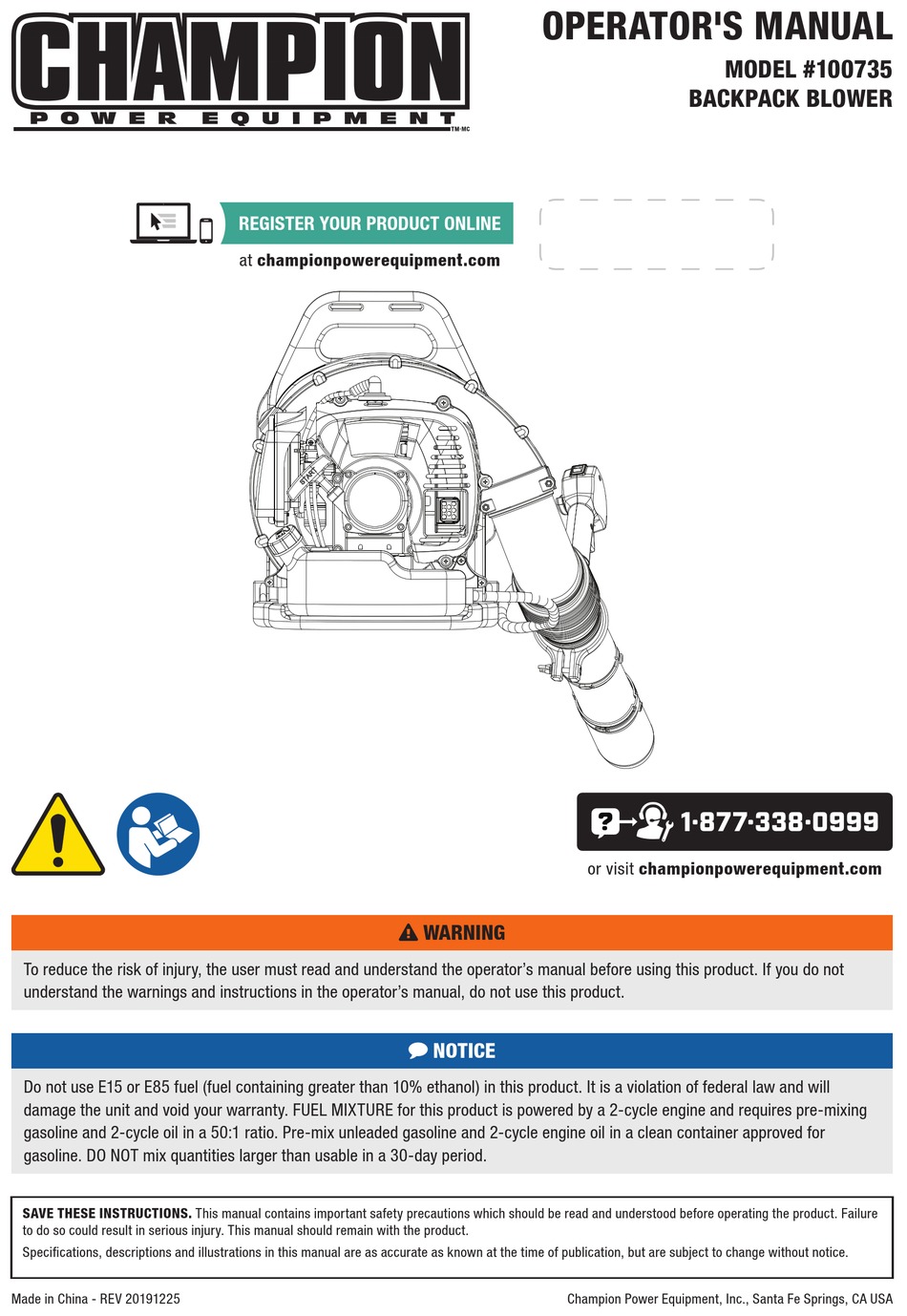

To reduce the risk of injury, the user must read and understand the operator's manual before using this product. If you do not
understand the warnings and instructions in the operator's manual, do not use this product.
Do not use E15 or E85 fuel (fuel containing greater than 10% ethanol) in this product. It is a violation of federal law and will
damage the unit and void your warranty. FUEL MIXTURE for this product is powered by a 2-cycle engine and requires pre-mixing
gasoline and 2-cycle oil in a 50:1 ratio. Pre-mix unleaded gasoline and 2-cycle engine oil in a clean container approved for
gasoline. DO NOT mix quantities larger than usable in a 30-day period.
SAVE THESE INSTRUcTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure
to do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
Made in China - REV 20191225
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
OPERATOR'S MANUAL
or visit championpowerequipment.com
wARNING
NOTIcE
Champion Power Equipment, Inc., Santa Fe Springs, CA USA
MODEL #100735
BAckPAck BLOwER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100735 and is the answer not in the manual?

Questions and answers

Related Manuals for Champion Power Equipment 100735

Summary of Contents for Champion Power Equipment 100735

  • Page 1 This manual should remain with the product. Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice. Made in China - REV 20191225 Champion Power Equipment, Inc., Santa Fe Springs, CA USA...

  • Page 2: Table Of Contents

    TABLE Of cONTENTS 100735 - BAckPAck BLOwER TABLE Of cONTENTS Specifications ..........

  • Page 3: Introduction

    INTRODUcTION 100735 - BAckPAck BLOwER INTRODUcTION SAfETY DEfINITIONS Congratulations on your purchase of a Champion Power The purpose of safety symbols is to attract your attention to Equipment (CPE) product. CPE designs, builds, and supports possible dangers. The safety symbols, and their explanations, all of our products to strict specifications and guidelines.

  • Page 4: Important Safety Instructions

    IMPORTANT SAfETY INSTRUcTIONS 100735 - BAckPAck BLOwER IMPORTANT SAfETY INSTRUcTIONS – Inspect the unit before each use for loose fasteners, fuel leaks, etc. Replace damaged parts. – Do not allow children or untrained individuals to use this – Do not use on a ladder, rooftop, tree, or other unstable unit.

  • Page 5: Fuel Safety

    IMPORTANT SAfETY INSTRUcTIONS 100735 - BAckPAck BLOwER fuel Safety – Fuel is highly flammable. Take precautions when using to reduce the chance of serious personal injury. – Do not smoke while handling fuel. – Store fuel in a cool, well-ventilated area, safely away from spark and/or flame-producing equipment.

  • Page 6: Safety Labels

    2mm safe margin. rev B: dieline changed This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for outside parties without the explicit consent of Champion Power Equipment.

  • Page 7: Safety Symbols

    IMPORTANT SAfETY INSTRUcTIONS 100735 - BAckPAck BLOwER Safety Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 8: Operation Symbols

    3b. For warm starts, DO NOT press primer bulb. This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for 4. Set cruise control lever to about 1/2 throttle position.

  • Page 9: Controls And Features

    AND fEATURES 100735 - BAckPAck BLOwER cONTROLS AND fEATURES Read this operator’s manual before operating your backpack blower. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Backpack Blower 1. Lower blower tube 10.

  • Page 10: Parts Included

    AND fEATURES 100735 - BAckPAck BLOwER Parts Included Blower tubes ................. 3 Accessories Spark plug wrench ..............1 Lower Reversible flathead and cross-head screwdriver ....1 2-cycle oil ............2.6 fl .oz.(76 ml) Middle Upper Assembly Parts Blower body ................1 Clamps ..................

  • Page 11: Assembly

    ASSEMBLY 100735 - BAckPAck BLOwER ASSEMBLY Your blower requires some assembly. If you have any questions regarding the assembly of your blower, call our Technical Support Team at 1-877-338-0999. Please have your serial number and model number available. 1. Attach flex tube to elbow on blower body. Tighten the clamp fully.

  • Page 12: Operation

    ASSEMBLY 100735 - BAckPAck BLOwER OPERATION fueling and Refueling Fuel Mixture This product is powered by a 2-cycle engine and requires pre-mixing gasoline and 2-cycle oil in a 50:1 ratio. Pre-mix unleaded gasoline and 2-cycle engine oil in a clean container approved for gasoline.

  • Page 13: Starting And Stopping

    ASSEMBLY 100735 - BAckPAck BLOwER Starting and Stopping 4. Set the cruise control lever to the half throttle position. NOTIcE  To avoid breaking the starter rope, do not pull the whole length or let it slide along the edge of the rope guide. Allow the starter rope to rewind gradually.

  • Page 14: To Stop The Engine

    ASSEMBLY 100735 - BAckPAck BLOwER Proper Blower Operation To Start a Warm Engine: 1. Set the cruise control lever to the half throttle position. SAFETY: – Fully familiarize yourself with the IMPORTANT SAFETY INSTRUCTIONS section. – To keep from scattering debris, blow around the outer edges of a debris pile.

  • Page 15: Cruise Control Feature

    MAINTENANcE 100735 - BAckPAck BLOwER NOTIcE wARNING   In some State and local jurisdictions and to comply with local Before inspecting, cleaning, or servicing the machine, shut noise ordinances, operate power equipment during reasonable off engine, wait for all moving parts to stop, and disconnect hours.

  • Page 16: Fuel Cap

    SPEcIfIcATIONS 100735 - BAckPAck BLOwER 3. Inspect and replace or clean the air filter. To reassemble EVERY 25 HOURS make sure the filter fits in the cavity and reinstall the — Clean cylinder fins and intake cooling vent. filter as shown. Fasten the air filter cover by turning the fasteners clockwise.

  • Page 17: Parts Diagram (A)

    SPEcIfIcATIONS 100735 - BAckPAck BLOwER Parts Diagram (A)

  • Page 18: Parts List (A)

    SPEcIfIcATIONS 100735 - BAckPAck BLOwER Parts List (A) Part Number Description Qty. Part Number Description Qty. Screw 5 × 16, Black Nut M6, Black 2320029397 2310004833 zinc-plating zinc-plating 2320119991 Engine Cover 2320107502 Flex Tube Screw M6 × 30, Black 2320120452...

  • Page 19: Parts Diagram (B)

    SPEcIfIcATIONS 100735 - BAckPAck BLOwER Parts Diagram (B)

  • Page 20: Parts List (B)

    SPEcIfIcATIONS 100735 - BAckPAck BLOwER Parts List (B) Part Number Description Qty. Part Number Description Qty. Winding 32 2320007021 Piston Ring 2320121560 33 2320006273 2320007039 Spark Plug 34 10302863 Back Crankcase 2320121561 Ignition Cold Assembly 35 2320008504 Sealing Gasket Magnet Rotor...

  • Page 21: Parts Diagram (C)

    SPEcIfIcATIONS 100735 - BAckPAck BLOwER Parts Diagram (c)

  • Page 22: Parts List (C)

    SPEcIfIcATIONS 100735 - BAckPAck BLOwER Parts List (c) Part Number Description Qty. 2320117338 Cruise Control Lever 2320119431 Handle Case 2320117347 Rotating Block Washer Ø5, 2310000764 Zinc-plating Screw St4.8 × 16, 2310001702 Zinc-plating 2320117340 Block 2320117339 Throttle Trigger 2320107510 Handle cover Screw St2.9 ×...

  • Page 23: Troubleshooting

    TROUBLESHOOTING 100735 - BAckPAck BLOwER TROUBLESHOOTING Problem Cause Solution Fuel mixture is too rich. Open choke. Fuel strainer clogged. Clean fuel strainer. Fuel line clogged. Clean fuel line. Engine does not start. Let unit sit for 15 minutes or remove spark Flooded engine.
  • Page 24 Consequential Damage CPE warrants to the original purchaser that the mechanical Champion Power Equipment disclaims any obligation to and electrical components will be free of defects in material cover any loss of time, use of this product, freight, or any...
  • Page 25 THE UNITED STATES ENVIRONMENTAL PROTECTION AGENCY (U.S. EPA) EMISSION CONTROL SYSTEM WARRANTY Your Champion Power Equipment (CPE) engine complies with U.S. EPA emissions regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: The U.S. EPA and CPE are pleased to explain the Federal Emission Control System’s Warranty on your 2020 small off-road engine and engine powered equipment.
  • Page 26 EMISSION CONTROL SYSTEM WARRANTY 1. APPLICABILITY: This section applies to Emissions Control Systems on small off-road engines or equipment that use small off-road engines subject to the emission standards in this Article. The warranty period begins on the date the new engine or equipment is delivered to an ultimate purchaser and shall continue for 24 consecutive months thereafter.
  • Page 27 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during normal business hours.
