Avtec XFD057 Owner's Manual

Full hd on-camera monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual_V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XFD057 and is the answer not in the manual?

Questions and answers

Related Manuals for Avtec XFD057

Summary of Contents for Avtec XFD057

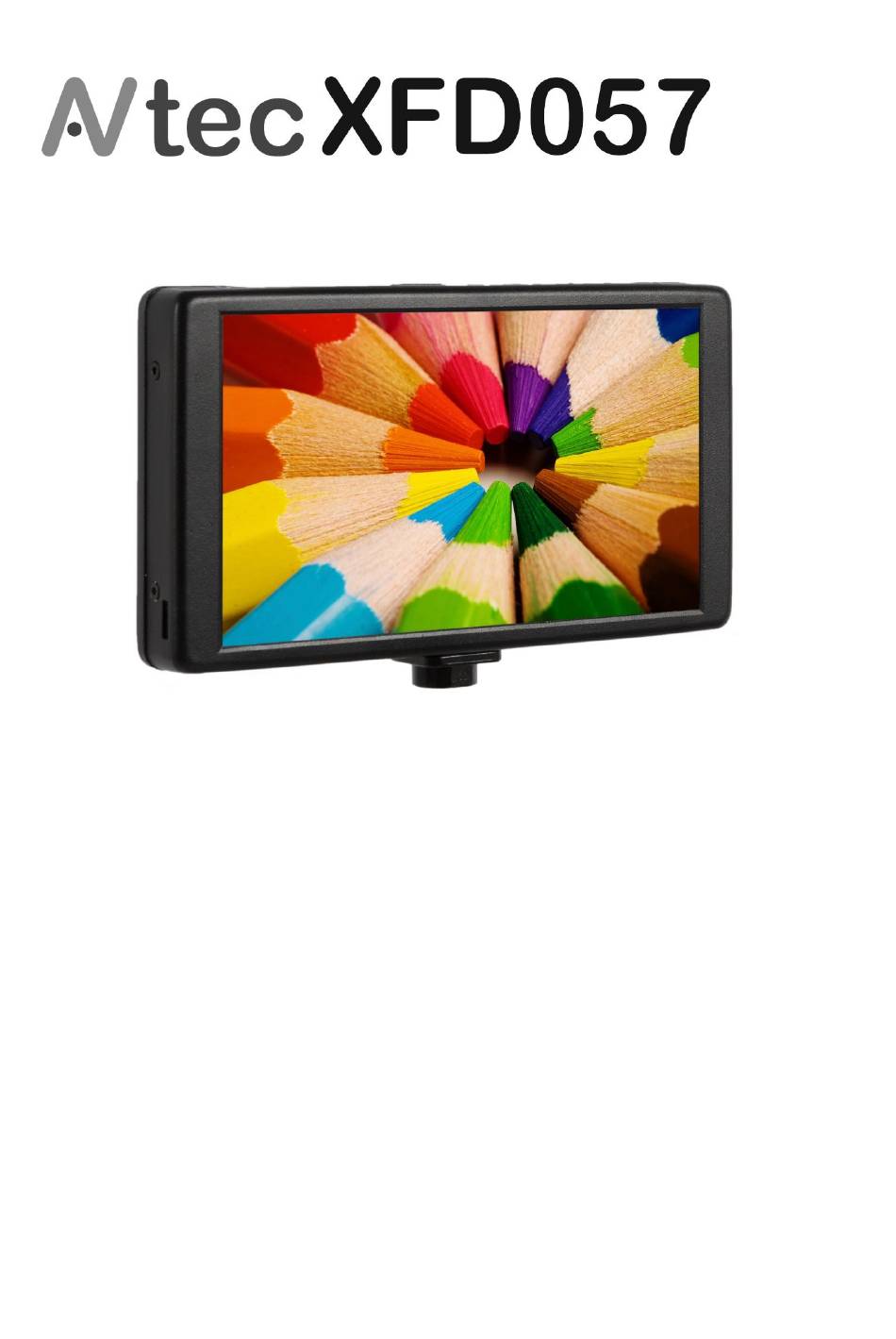

  • Page 1 Owner’s Manual_V1.0...
  • Page 3 Operation of this equipment in a residential to correct the interference at his own expense CAUTION: Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. AVtec LCD Monitors Page: 3/20...
  • Page 4 It is conveniently sized for easy transportation, and it is perfect for difficult shooting situations. To obtain the best results with your new XFD057, please take the time to read this manual. 2. Features • 5.7” IPS LCD Panel •...
  • Page 5 XFD057 Owner’s Manual_V1.0 3. Included in this box 1x AVtec XFD057 Full HD Monitor 3x Battery bracket for NP-F, BP-U & LP-E6 batteries 1x AC/DC Combi adapter with EU, US, UK & AU plugs 1x Sun hood attachment & detachable sun hood 1x Ball head with 1/4"...
  • Page 6 NP-QM91, NP-QM90D, NP-QM90, NP-QM71D, NP-QM71, NP-QM70D, NP-QM70, NP-QM51D, NP-QM51, NP-FM71 & NP-FM70 series. BP-U bracket Sony BP-U30, BP-U60 & BP-U90 LP-E6 bracket Canon LP-E6 NOTE: Please remove the battery from the bracket before changing the battery bracket itself. AVtec LCD Monitors Page: 6/20...
  • Page 7 Four power plugs are supplied for EU, US, UK and AU. Slide the selected plug on to the adapter until you hear a soft click. AVtec LCD Monitors Page: 7/20...
  • Page 8 Slide the ball head into a hot shoe and fasten it by turning the wheel on the bottom of the ball head to the right. AVtec LCD Monitors Page: 8/20...

  • Page 9: Panel & Controls

    XFD057 Owner’s Manual_V1.0 4. Panel & Controls AVtec LCD Monitors Page: 9/20...
  • Page 10 XFD057 Owner’s Manual_V1.0 Screw lock installation AVtec LCD Monitors Page: 10/20...
  • Page 11 3. After selecting the items in the secondary menu, then press ◄ or ► button to adjust the item parameters. 4. Press ▼ or ▲ button to choose another parameter adjustment after confirming the item adjustment. 5. Press MENU button to exit the menu. AVtec LCD Monitors Page: 11/20...

  • Page 12: Menu Instructions

    (0～100). Color Temp. 6500 K, 9300 K or User. The User option allows you to adjust Red, Green & Blue. Tint To adjust the cool and warm hue of the image. (0～100). AVtec LCD Monitors Page: 12/20...

  • Page 13: Settings Menu

    To adjust the brightness of screen backlight. (0～100). Power On Manual or Auto setting. USB Upgrade To update the firmware via USB. Please check the firmware page on AVtec.tv. Reset Restore factory settings by pressing ► button. AVtec LCD Monitors Page: 13/20...

  • Page 14: Function Menu

    Use one of the ▼ button to enter the Function menu. Press ▲ or ▼ to navigate through the settings. Once the desired setting is highlighted, use the ◄ or ►buttons to navigate through the sub-menu functions. Press the MENU button to activate the function. AVtec LCD Monitors Page: 14/20...
  • Page 15 Red, Green, Blue, Black, White. Mark Width To select the above mark color display width; 1~7 Modified Marker Adjust the brightness of the image outside tag line to highlight the inside tag line of the image; AVtec LCD Monitors Page: 15/20...
  • Page 16 “Focus Assist”, and press MENU button to confirm. So when you exit menu, you could press F1 directly on the front of panel to turn on “Focus Assist” function. Same settings for F2 AVtec LCD Monitors Page: 16/20...

  • Page 17: Technical Specifications

    280/310g (with F970 battery plate) 9.88/10.93oz 1/4 inch bracket screw holes, can be easily Installation Method connected to the hot shoe mount, tripod fixed installation Working Temperature -20°C~55°C / -4°F~131°F Storage Temperature -30°C~65°C / -22°F~149°F AVtec LCD Monitors Page: 17/20...

  • Page 18: Troubleshooting

    If power is supplied by battery, please check if the battery is fully charged. 3. No sound ① Check Volume control; press the volume button, and try to increase the volume. If other issues with the device may occur, please contact us. http://www.AVtec.tv AVtec LCD Monitors Page: 18/20...
