Summary of Contents for EVO GEARS EG11CC

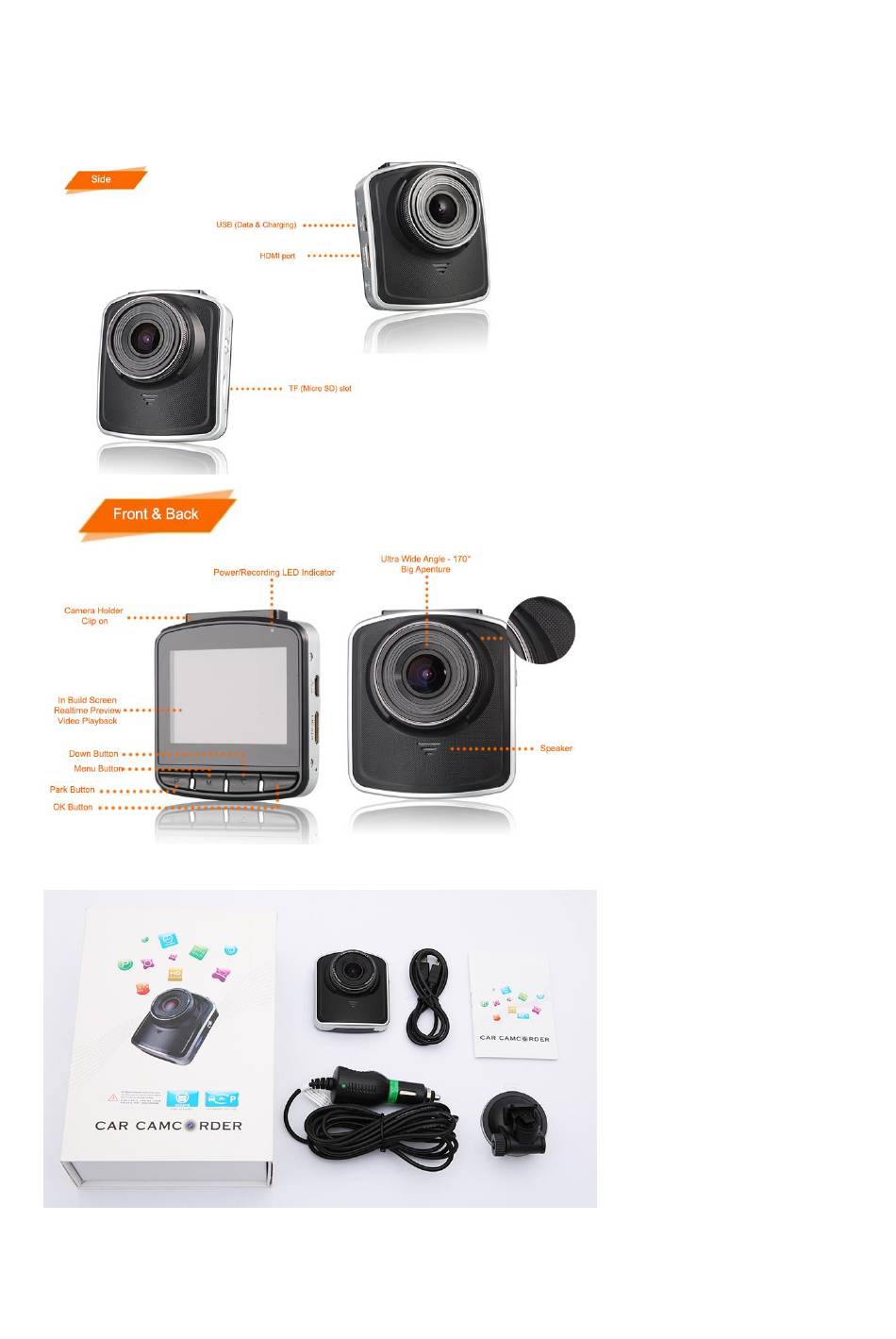

- Page 1 EG11CC What’s in the package?
-
Page 2: Initial Setup
Initial set up: Make sure the device as least has 50% of battery before use, if less the 50% please charge the device for 3-4 hours using a USB socket before use. The device uses a TF (Micro SD) memory card, maximum size allowed is 32GB. -
Page 3: Setting Date/Time
* When the device is connected to USB charging cable or Cigarette Lighter, the camera will switched on automatically, and will start recording if the memory card is inserted. * Please press OK button to stop the recording. Basic Configuration – when device is powered on, press menu button to enter the configuration menu. -
Page 4: Operation
Operation: Connect the cigarette light charger into the cigarette lighter slot. Connect the charging cable to the camera. Turn on the Ignition, cigarette lighter start to supply power (you can see camera car charger red indicator will lights up.) - Page 5 Camera will turn on automatically and will start recording in default. When your switch off the ignition, cigarette lighter will stop supplying power, the device will detect this and automatically stop the recording and switch itself off. Parking Mode – This feature allow the camera to wake up and record a short video, when it detect any collision.
- Page 6 When the device has detected the cigarette lighter stop supply power. It will activate the Parking mode automatically. All the components of the device will be turned off (normally take around one minute) except for the collision sensor. When a collision is detected, device will wake up and start recording.
-
Page 7: While Recording
After you have entered the menu by pressing the menu button, the P button will become Up button allow you the navigate during the menu selection. While recording, you can press OK button to stop recording, and Press it again to start recording. When the camera is powered, Press and hold the power button will ... -
Page 8: Led Indicator
(Normal) Video Playback Mode is all other videos are recorded when you are driving in normal scenario. After you have selected the playback mode, you are able to see the recorded videos that is listed on the screen as below: Select the video and press OK button allows you to playback the video. - Page 9 Solid blue indicates the device is switch on. Flashing blue indicates the device is in recording mode. You will normally see both solid red flashing blue, this mean the device is in recording mode and the device is charging the temporary battery. Quick tips on the setting: Movie Size: This options allows you to select the resolution for the recording video Exposure: This option allows you to set the exposure...
- Page 10 Battery On the device - Please be advised the battery that is installed in the device is for saving the device setting only and it is not designed for Standalone recording. The device will need to always connect to a power source for it to function. Video playback on a Windows PC or MAC.
