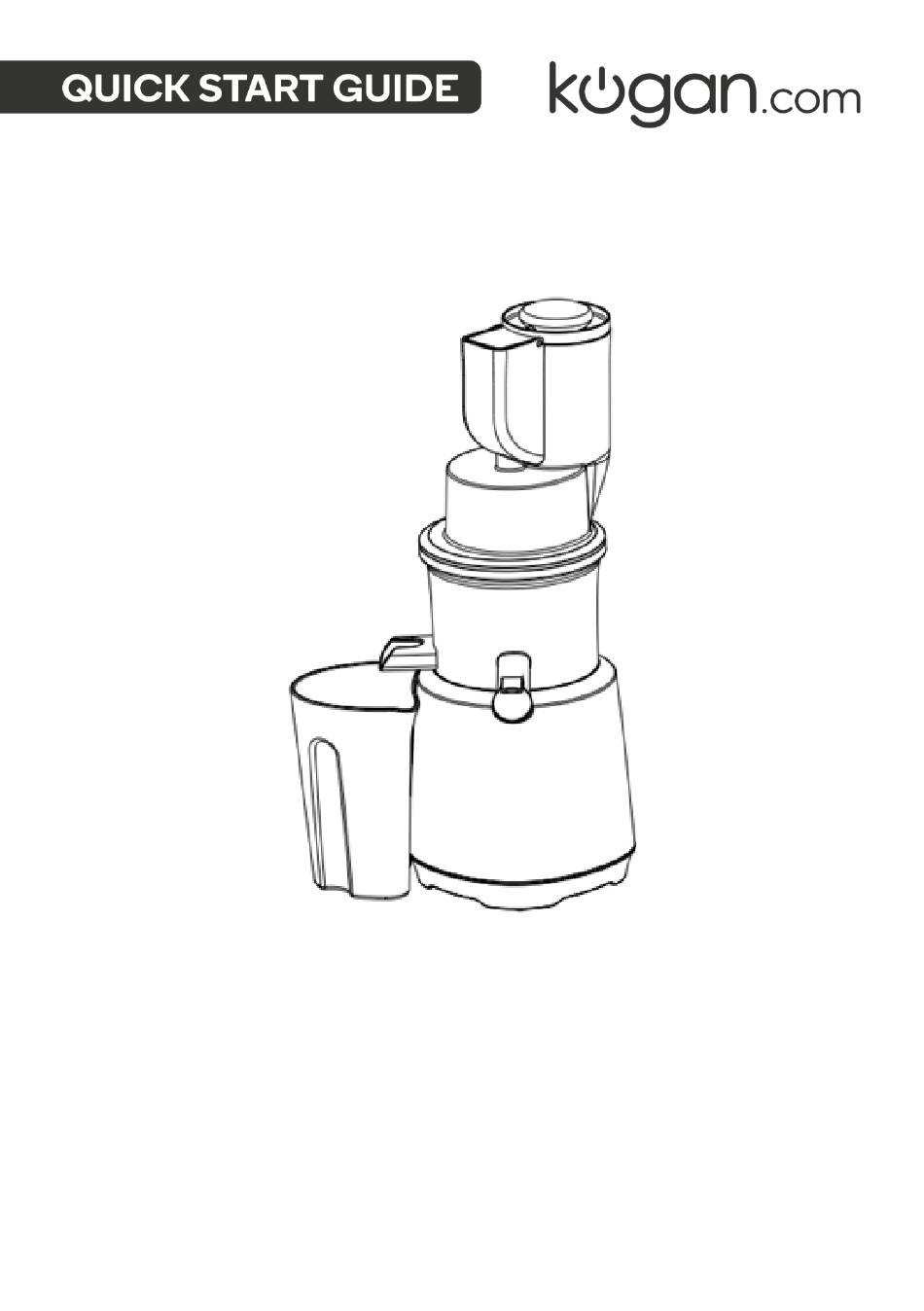

- Page 1 COLD PRESS SLOW JUICER KA12SLWJCRA...
-
Page 2: Safety And Warnings
SAFETY & WARNINGS • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 3 • When using, if there are any abnormal sounds, smells, overheating, smoke, etc., immediately turn off the power and contact Kogan.com. • Never scrub or wash the machine body on a wet surface or pour water to wash the inside of the machine to avoid electric shock or damage to machine body, etc.
- Page 4 OVERVIEW Top cover Pusher Juicing bowl Smart cap Screw Fine strainer Container Cleaning brush Note: The illustrations above are for reference only and the product may differ slightly in appearance.
- Page 5 ASSEMBLY STEP 1 Topset assembly Align the red dots on each part and ● assemble in the order shown. Once assembled, turn the drum lid clockwise to close. STEP 2 Topset and base assembly Place the bowl on the base, the 3 holes of bowl lock into the 3 feet at the base.
- Page 6 For safe operation • Operating the juicer without ingredients can cause damage to the screws. • Do not continuously operate the juicer for more than 10 minutes. This can damage the motor from overheating. • After continuous use, let the juicer rest for 10 minutes before starting another session. •...
- Page 7 2. Place the juicing screw into the strainer. Turn and press down on it until it clicks into place. Note: • The juicer may leak if not assembled properly. • Ensure that the compression silicone and silicone ring are assembled properly. •...
- Page 8 4. Place the drum lid on to the juicing bowl aligning the red dot on the drum lid with the red dot on the juicing bowl. Turn clockwise to close, aligning the red on the drum lid with the lock mark.
- Page 9 1. Place the bowl on the base, the 3 holes of bowl lock into the 3 feet at the base. 2. To lock the juicer in-place, turn it clockwise. To unlock, turn the juicer counterclockwise.
- Page 10 3. Place the pulp cup under the pulp spout and place the juice cup under the juice spout as shown in the illustration. Note: • Juicer will not operate if parts are not assembled properly, or may leak during operation. •...
- Page 11 Disassembly Step 1: Switch OFF and unplug the power cord from the wall outlet. Note: • Extract all the remaining pulp in the juicing bowl before stopping the juicer. • For easy clean up, operate the juicer for an additional 30 seconds after the juice is extracted.
-
Page 12: Operation
OPERATION Step 1: After preparing the ingredients, plug the power cord into a wall outlet. Note: • Do not touch the power cord with wet hands, it may cause electrical shock, short-circuit or fire. • Check the safety of the wall outlet. Step 2: Press the ON button to operate. - Page 13 Step 4: Use the smart cap to make mixed juices. Stop juice from dripping or rinse between different juices. • Juicing with the smart cap closed creates various mixed juices when different fruits and vegetables, milk, banana, beans etc., are selected. •...
-
Page 14: Tips On Ingredients
TIPS ON INGREDIENTS Figure 2 Figure 1 Double size food chute: One for whole apple, another for strip shaped vegetables. Open the lid to feed the whole round fruits like apples, oranges (figure 1). Feed the strip shaped vegetables like carrots (figure 2). - Page 15 DO NOT put the following ingredients into the juicer Peach, nectarines, apricot, plum, mango, etc. Hard seeds Remove hard seeds from the ingredients before juicing. Pineapple, melon, mango, orange, etc. Hard or inedible skins Peel the skins from the ingredients before juicing. Frozen strawberry, blueberry, raspberry, etc.
- Page 16 INGREDIENT PREPARATION Before operating • If the juicer is jammed or if the drum lid does not open, press the REVERSE button and hold until it becomes dislodged. Repeat REVERSE-OFF-ON as needed. • Continue operating the juicer until all the ingredients in the juicing bowl are extracted.
- Page 17 • Leave the smart cap open when juicing ingredients that create excessive foam during extraction. Foam can accumulate if operated with the smart cap closed. • It is recommended that the extracted juice be consumed within 48 hours after extracting. Depending on the density of the ingredients, the extracted juice can gradually show layers over time.
- Page 18 Hard fruits and vegetables (e.g. carrots, potato, beets & spinach): ½ -1" 6" 1" To increase the Hard fruits and Soak in cold water juice yield, juice vegetables may put prior to juicing and fruits and excess strain onto cut to appropriate vegetables with the motor and cause sizes.
- Page 19 • For pomegranate, discard the skin and juice only the inner part. Extraction tips • Depending on the size of the grapes, insert 3-5 grapes at a time while monitoring the extraction result. • Thaw frozen ingredients like pomegranate and raspberry then insert about 1 tablespoon (5g) at a time.
- Page 20 Extraction tips • One at a time, slowly insert the prepared ingredients. • Roll leaves into spiral as inserting into the juicer. • Insert the leafy part of the ingredients first then alternate between leafy parts and stems. • For ingredients like wheatgrass, grab a handful and insert a bundle. Caution: The fibres from tough ingredients like celery can wrap around the juicing screw and affect the juicer’s performance.
-
Page 21: Cleaning And Care
CLEANING & CARE 1. Remove the juicing screw and strainer from the juicing bowl. Clean with provided brush. Note: • Immediately clean the juicer after each use. If remaining residue in the juicer dries up, it can make disassembling and clean-up difficult. The excess build-up can cause poor performance in future uses. -
Page 22: Troubleshooting
TROUBLESHOOTING • Check if the power cord is properly plugged in. • Check if the drum lid and the juicing bowl are properly assembled. When there is no power to • Ensure that the topset and base of the juicer have the juicer been assembled correctly, following the step by step instructions in the Assembly portion of this guide. - Page 23 • Make sure the juicing screw is pushed all the way into the strainer for the drum lid to close properly. The drum lid doesn’t close • If the juicing screw is not properly in position, the drum lid may not close. •...
- Page 24 • Check the power cord and make sure it is plugged in correctly. • Ensure that the juicer has been assembled correctly, following the step by step instructions in the Assembly portion of this guide. • If too many ingredients are inserted at one time, this can cause the juicer to stop.
- Page 25 • After juicing, if the juicer is not cleaned right away, the remaining pulp inside the topset can dry up, which can make disassembling and cleaning hard. This can also affect the juicer’s performance and colour. • Ingredients that are rich in carotenoids such as carrots and spinach may dye plastic parts.
- Page 26 Note: • REVERSE: Pushes the ingredients back up to dislodge them. The REVERSE button only works while holding down the switch. • Switch OFF ensuring that the juicer comes to a complete stop. Then press REVERSE. Hold the REVERSE button for 2 - 3 seconds and release. Repeat as needed.
-
Page 27: Specifications
SPECIFICATIONS Rated voltage AC 220~240V Rated frequency 50Hz Rated power 240W Speed 60RPM... - Page 28 This is a Quick Start Guide and we hope that this has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
