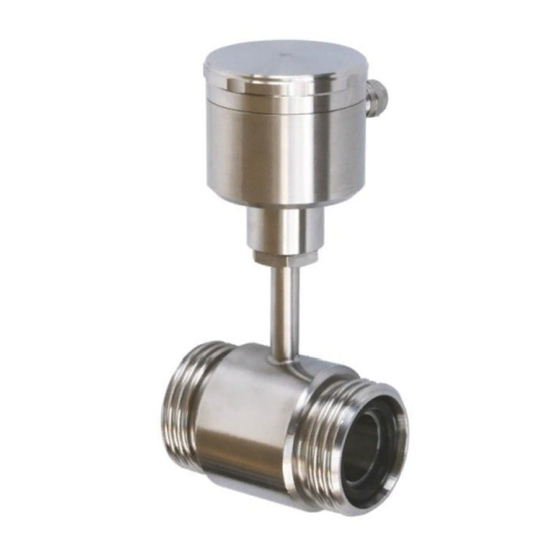

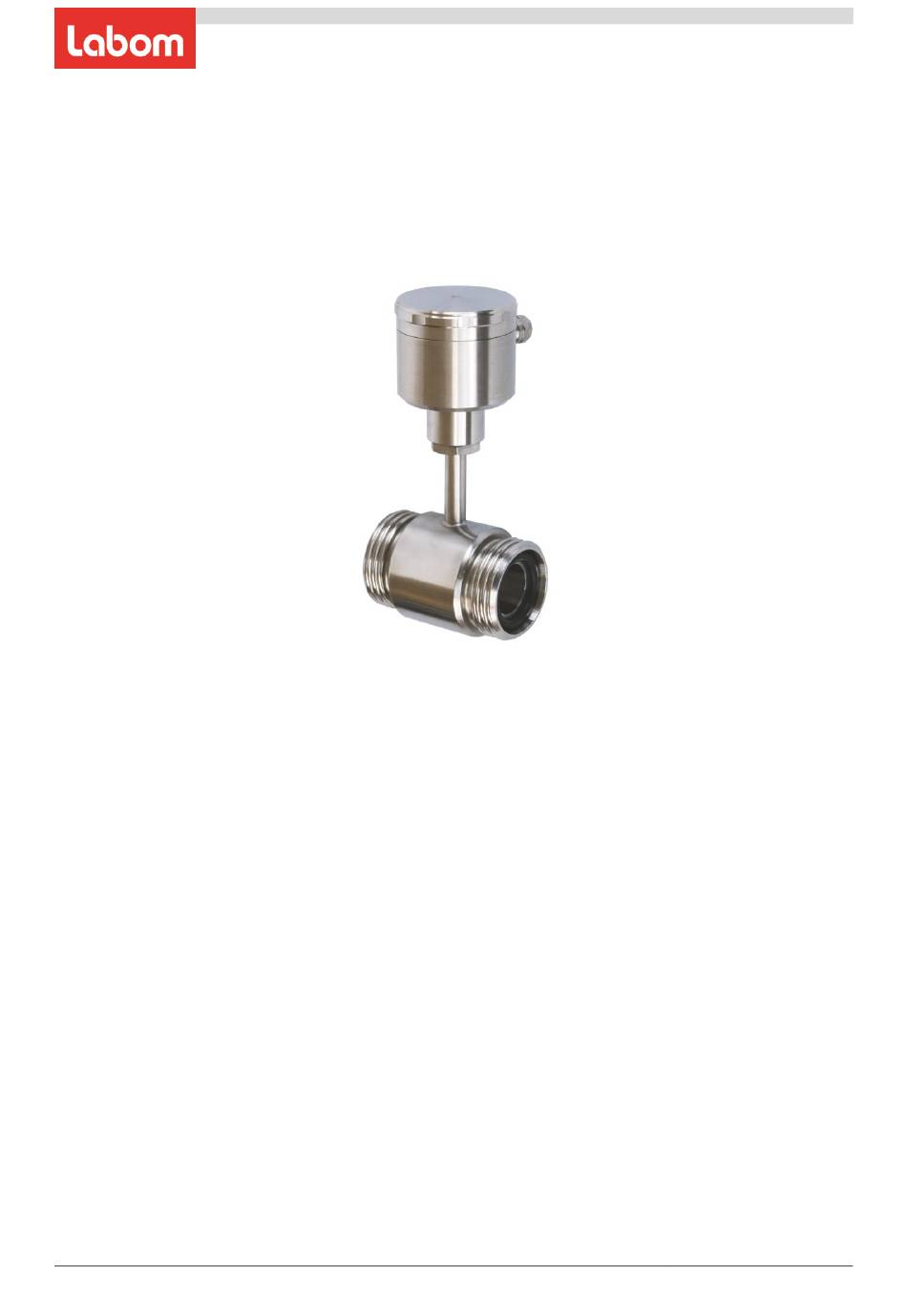

Inline resistance thermometer
Type series GA22xx
Operating Instructions
1 General Information....................................................................................................... 2
1.1 General Safety Notes .............................................................................................. 2
1.2 Intended Use ........................................................................................................... 2
1.3 Conformity with EU Regulations .............................................................................. 2
1.4 EX Approval ............................................................................................................ 2
2 Transportation and Storage .......................................................................................... 2
3 Installation and Commissioning .................................................................................. 2
3.1 Mechanical Installation ............................................................................................ 3
3.2 Electrical Connection .............................................................................................. 3
4 Operation ........................................................................................................................ 4
4.1 Maintenance / Service ............................................................................................. 4
5 Disassembly ................................................................................................................... 4
LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany
Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com
BA_067_2019-05_10.00
Page 1/4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Labom GA22 Series
Summary of Contents for Labom GA22 Series
- Page 1 3.2 Electrical Connection ....................3 4 Operation ........................4 4.1 Maintenance / Service ..................... 4 5 Disassembly ........................4 LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany BA_067_2019-05_10.00 Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com Page 1/4...
- Page 2 In addition to this instruction, be sure to observe all statutory requirements, appli- cable standards, the additional technical specifications on the accompanying data sheet (see www.labom.com) as well as the specifications indicated on the type plate. General Safety Notes The installation, set up, service or disassembly of this device must only be done by trained, qualified personnel using suitable equipment and authorized to do so.
- Page 3 Mechanical Installation Use gaskets, if required, that are suitable for the process connection and resistant to the media. The process connection determines the permissible process pressure. Operating the de- vice beyond its nominal pressure limit, e.g. clamp-connections, requires specially designed and approved mounting elements.
- Page 4 Operation During operation, take care that the device remains within its intended pressure and tem- perature ranges. No other monitoring is necessary. -20…200 °C Permissible media temperature: -40…100 °C Permissible ambient temperature: When supplied with a transmitter, the permissible ambient temperature is reduced to 85°C. Restricted ambient conditions may apply in explosion protected environments (see XA_004 for GA2201 or XA_002 for GA2211).
