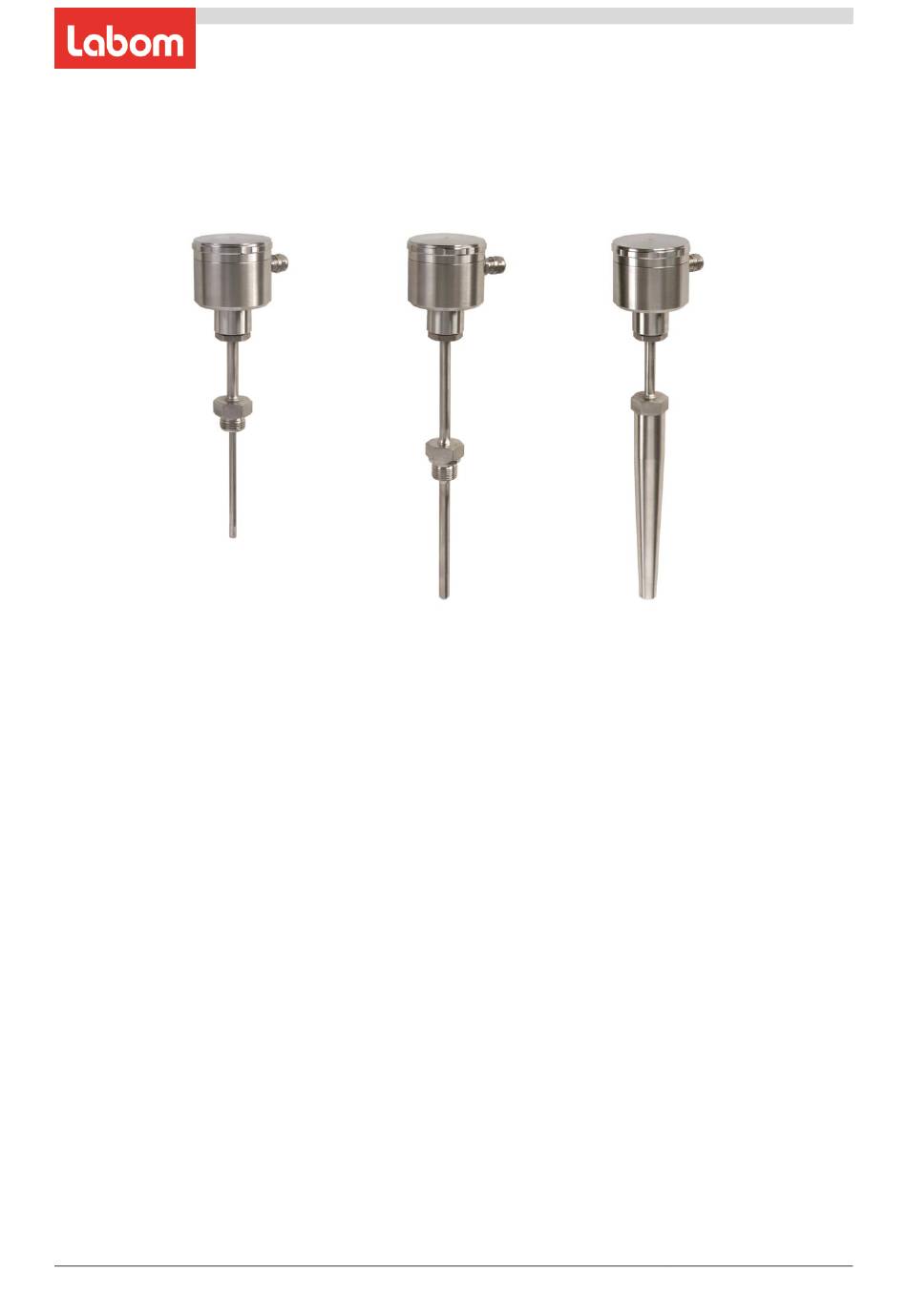

Resistance thermometer with Pt100
Type series GA25xx and GA9130
Operating Instructions
1 General Information....................................................................................................... 2
1.1 General Safety Notes .............................................................................................. 2
1.2 Intended Use ........................................................................................................... 2
1.3 Conformity with EU Regulations .............................................................................. 2
1.4 ATEX Approval ........................................................................................................ 2
2 Transportation and Storage .......................................................................................... 2
3 Installation and Commissioning .................................................................................. 2
3.1 Mechanical Installation ............................................................................................ 3
3.2 Electrical Connection .............................................................................................. 3
4 Operation ........................................................................................................................ 4
4.1 Calibration in the field .............................................................................................. 4
4.2 Maintenance / Service ............................................................................................. 4
5 Disassembly ................................................................................................................... 4
LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany
Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com
BA_015_2019-05_10.00
Page 1/4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Labom GA25 Series
Summary of Contents for Labom GA25 Series
- Page 1 4.1 Calibration in the field ....................4 4.2 Maintenance / Service ..................... 4 5 Disassembly ........................4 LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany BA_015_2019-05_10.00 Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com...
- Page 2 In addition to this instruction, be sure to observe all statutory requirements, appli- cable standards, the additional technical specifications on the accompanying data sheet (see www.labom.com) as well as the specifications indicated on the type plate. General Safety Notes The installation, set up, service or disassembly of this device must only be done by trained, qualified personnel using suitable equipment and authorized to do so.
- Page 3 Mechanical Installation Before starting operation, check the process connection carefully for leaks under pressure. Use gaskets, if required, that are suitable for the process connection and resistant to the media. The process connection determines the permissible process pressure. Operating the de- vice beyond its nominal pressure limit, e.g.
- Page 4 Operation During operation, take care that the device remains within its intended pressure and tem- perature ranges. No other monitoring is necessary. The permissible ambient and media temperature depends on the type of device and its design. This information can be found in the relevant data sheet. Calibration in the field Type GA250x, GA254x and GA9130 allow you to remove the measuring insert when cali- brating the instrument.
