Page 1
Control Port. Serial Adapters (for NRC only): A and B Alternate Wiring: If you do not have the optional Eiki serial adapter cable, terminate the SP Controls control cable directly on a male 8-pin mini-DIN as follows: GND to 8...
Page 2

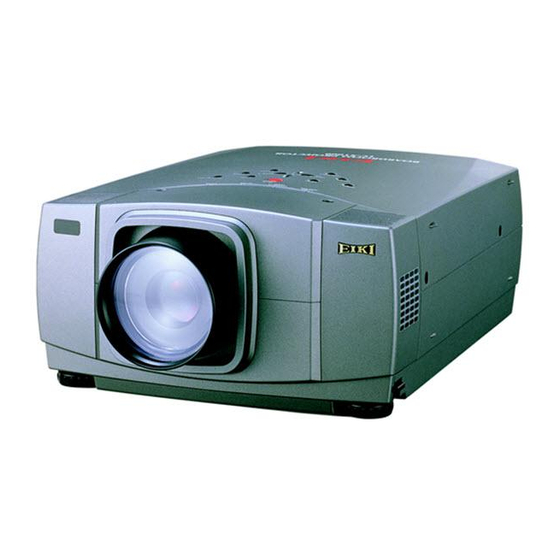

SP Controls Application Note Eiki LC-X1100 Revision B III. Projector Configuration To ensure the projector stays in sync with the control system, set the DISPLAY feature to OFF in the projector's on screen menus. Scroll over to the menu to the SETTING menu whose first item is LANGUAGE and toggle down to DISPLAY.
