- Page 1 Product Code: 1895T OWNER’S MANUAL PRODUCT CODE: 1895T 800kg ENGINE STAND Maximum Length Height Width Weight Capacity 800kg 1300mm 1100mm 940mm 136kg Made in China to TQB Brands Pty Ltd specifications. Visit us at www.tqbbrands.com.au...
-
Page 2: Table Of Contents
Product Code: 1895T WARNING IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE WARNING The instructions and warnings contained in this manual should be read and understood before using or operating this equipment. Do not allow anyone to use or operate this equipment until they have read this manual and have developed a thorough understanding of how this equipment works. Failure to observe any of the instructions contained in the manual could result in severe personal injury to the user or bystanders, or cause damage to the equipment and property. Keep this manual in a convenient and safe place for future reference. Whilst every effort has been made to ensure accuracy of information contained in this manual, the TQB Brands Pty Ltd policy of continuous improvement determines the right to make modifications without prior warning. -
Page 3: Safety Instructions
Product Code: 1895T SAFETY INSTRUCTIONS SAFETY OPERATING INSTRUCTIONS Before using the stand ensure it is in sound condition, and good working order. ü Replace or repair damaged parts. Use recommended parts only. Non-authorised parts ü may be dangerous and will invalidate the warranty. Keep the stand clean for best and safest performance. ü Locate the stand in an adequate working area for its function, keep area clean and tidy ü and free from unrelated materials, and ensure there is adequate lighting. Use on a firm, level surface capable of sustaining the stand and the load. ü Maintain correct balance and footing. Ensure the floor is not slippery and wear non- ü slip shoes. Ensure all non-essential persons keep a safe distance whilst the stand is in use. ü Lock mounting plate in position before fixing a load, and ensure the load is centred ü and securely mounted on the locking plate. Ensure the Stand and the load is stable. ü To move a loaded stand, push it from the load side, above the two fixed wheels. DO ü NOT move the stand from the castor end and never pull the stand towards yourself. Also ensure surface over which the stand is to travel is strong enough to take the stand load and that it is not cracked, uneven or obstructed. DO NOT operate unit if damaged. û DO NOT allow untrained persons to operate the stand. û DO NOT exceed the rated capacity of 800kg. û DANGER: DO NOT work under an engine mounted on the stand. Made in China to TQB Brands Pty Ltd specifications. Visit us at www.tqbbrands.com.au Page | 3... -
Page 4: Assembly, Operation, Preventitive Maintenance

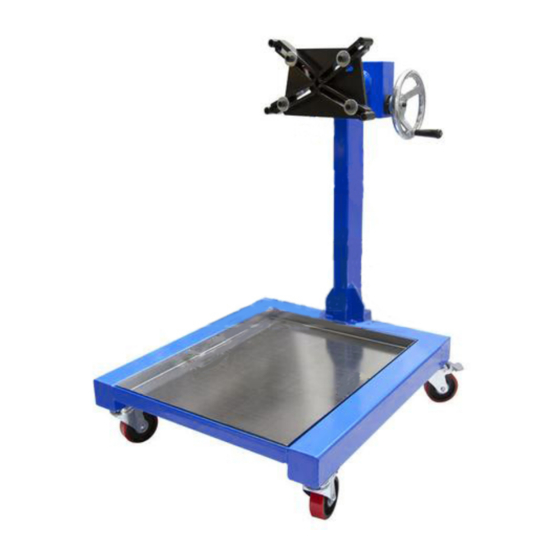

Product Code: 1895T ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE 1. FEATURES The Tradequip 1895T Engine Stand accepts a wide variety of engines and transmissions. The head easily swivels 360º via the ratio gear box for convenient accessibility to all parts of the engine. It has fully adjustable mounting arms. Swivel castors provide excellent manoeuvrability. This model also offers oil drip tray for cleaner disassembly. 2. ASSEMBLY Attach Column (3) to Base (6) using Bolt (14), Washer (15) and Nut (16) Mount Turntable (2) to Column (3) using Bolt (9), Washer (10) and Flat Washer (11) Loosely attach Fingers (1) to Turntable (2) using Bolt (12) and Washer (13) Slowly tilt the assembly onto its back Mount Swivel Castors (7) to the back (Bottom) of the Base (6) using Bolt (18), Washer (19) and Nylock Nut (20) Mount Directional Wheels (7) to the front (Top) of the Base (6) using Bolt (18), Washer (19) and Nylock Nut (20) Slowly tilt the assembly onto its wheels Attach Hand Wheel (4) to the drive on the side of the gearbox using Bolt (23), Washer (22) and Flat Washer (21) Mount Handle (24) to the Column (3) using Nut (26) and Washer (25) 10. Attach Oil Drip Tray (5) using Bolt (16) and Washer (17) Made in China to TQB Brands Pty Ltd specifications. Visit us at www.tqbbrands.com.au Page | 4... - Page 5 Product Code: 1895T 3. BEFORE USE Prior to each use always conduct a visual inspection by checking for abnormal conditions, such as cracked joints and damaged, loose, or missing parts. BEFORE USING THIS DEVICE, READ THIS MANUAL COMPLETELY AND THOROUGHLY, UNDERSTAND ITS OPERATING PROCEDURES, SAFETY WARNINGS AND MAINTENANCE REQUIREMENTS. FAILURE TO DO SO COULD CAUSE ACCIDENTS RESULTING IN SERIOUS OR FATAL PERSONAL INJURY AND/OR PROPERTY DAMAGE. The use of portable engine stands is subject to certain hazards that cannot be prevented by mechanical means, but only by the exercise of intelligence, care, and common sense. It is therefore essential to have owners and personnel involved in the use and operation of equipment who are careful, competent, trained, and qualified in the safe operation of the equipment and its proper use. Examples of hazards are dropping, tipping, or slipping of...
- Page 6 Product Code: 1895T Make sure the setup is stable and then, slowly and carefully remove the workshop crane or engine lifting device. REMOVING ENGINES Attach an engine lifting bar or sling to the engine. Connect the bar or sling to a workshop crane or lifting device and slowly lift the engine just enough to take pressure off the engine stand. Remove the bolts and lock washers that secure the mounting plate to the stand’s drive shaft. Slide the drive shaft out of the mounting plate receiver and slowly and carefully manoeuvre the engine away from the stand. Unscrew the four bolts that secure the adapter arms to the engine. 5. STORAGE This Engine Stand should always be stored in a dry location on a level surface. 6. MAINTENANCE Replace or repair damaged parts. Use recommended parts only. Non-authorised parts may be dangerous and will invalidate the warranty. Keep the stand clean for best and safest performance. 7. SERVICE & REPAIR Any Engine Stand found damaged in any way, or found to be worn or operates abnormally should be removed from service until repaired by an authorised service agent. Owners and / or operators should be aware that repair of this product may require specialised equipment and knowledge. Only authorised parts, labels and decals shall be used on this...
-
Page 7: Parts Diagram
Product Code: 1895T PARTS DIAGRAM Made in China to TQB Brands Pty Ltd specifications. Visit us at www.tqbbrands.com.au Page | 7... -
Page 8: Parts List
Product Code: 1895T PARTS LIST Part Description Qty Part Description Qty Finger Bolt M12x25 Turntable Washer Ø12 Stand Column Nut M6 Hand Wheel Flat Washer Ø6 Drip Pan Bolt M8x16 Base Washer Ø8 Swivel Castor Wheel Ny-lock Nut M8 Directional Wheel Washer Ø8 Allen Bolt M10x20 Washer Ø8 Washer Ø10 Bolt M8x16 Flat Washer Ø10x48 Handle Bolt M14x35 Washer Ø10 Washer Ø14 Nut M10 Made in China to TQB Brands Pty Ltd specifications. Visit us at www.tqbbrands.com.au Page | 8... -
Page 9: Warranty
Product Code: 1895T WARRANTY Tradequip products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase. Should the machine develop any fault, please return the complete tool to your nearest authorised warranty repair agent or contact TQB Brands Pty Ltd Warranty team –...
