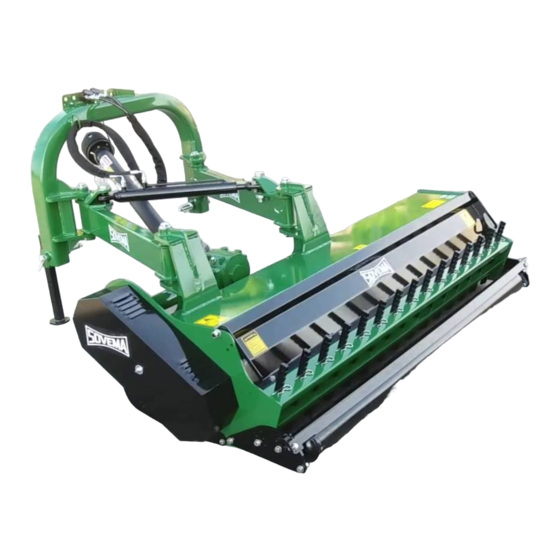

Dear Owner,
Thank you for buying a SOVEMA manufactured product.
Your new machine has been carefully designed and manufactured to give you superior
performance and dependable service, if properly operated and maintained.
You will find this machine to be rugged and reliable when matched to the suggested
horsepower operating range.
Much time has been invested in providing safety and protection. Please carefully read
this manual. It tells you how to safely and easily assemble, operate and maintain your
machine.
Be sure that you and any other operator carefully follow the
recommended safety practices at all times. Failure to do so could result in personal injury
or property damage.
Of course, should you ever have any problems or questions, please contact your local
SOVEMA dealer or contact us at the addresses or numbers indicated in this manual.
SOVEMA manufactures a variety of innovative equipment. If you are interested in
reviewing our full line, please contact us.
Thanks for your choice.
Pier Silvio Mayer
President
INSTRUCTION MANUAL
Page 1
Revised 2013
Advertisement
Table of Contents
Related Manuals for Sovema BTH 250
Summary of Contents for Sovema BTH 250
- Page 1 Of course, should you ever have any problems or questions, please contact your local SOVEMA dealer or contact us at the addresses or numbers indicated in this manual. SOVEMA manufactures a variety of innovative equipment. If you are interested in reviewing our full line, please contact us.
-
Page 2: Table Of Contents
OPERATING THE IMPLEMENT ................... 16 TROUBLESHOOTING....................18 DISCONNECTING THE MACHINE................20 STORAGE ........................21 MAINTENANCE......................23 SPARE PARTS LIST ..................... 29 LIMITED WARRANTY POLICY..................40 SOVEMA PRODUCT LINE.................... 44 DECLARATION OF COMPLIANCE CE ................ 47 INSTRUCTION MANUAL Pag. 2 Revised 2013... -
Page 3: Symbols
SYMBOLS These symbols appear throughout the manual. Remember their meaning and advice. CAUTION! YOUR SAFETY IS IN DANGER! READ CAREFULLY USE PROTECTIVE GLOVES INSTRUCTION MANUAL Page 3 Revised 2013... -
Page 4: General Information
GENERAL INFORMATION All implements with moving parts are potentially hazardous. The manufacturer has designed the implement to be used with all the safety equipment properly attached. The purpose of this manual is to assist you in safely maintaining and operating the implement. These instructions have been compiled from our experience. -
Page 5: Safety Decals
SAFETY DECALS Safety decals on the implement contain important safety warning messages. To prevent injuries we invite the operator to read them carefully and keep them clean. Check that all the decals are on the machine. If not, DO NOT USE the machine and report to the Dealer immediately to get the decals. - Page 6 Danger. Hands and feet can be injured by moving knives. Keep away from the implement. Danger. Your feet can be injured. Keep away from the implement. Danger. Your hands can be injured. Do not remove safety protection and keep away from moving parts.. Danger.
-
Page 7: Safety Instructions
Before using the implement you must be sure to know the main safety precautions; in fact many accidents are caused by not observing these simple rules. Sovema S.r.l. declines to the full extent allowed by the applicable laws all liability and responsibility for any damages of any kind resulting from the breach rules and guidelines expressed in this manual PRE-OPERATIONAL AND OPERATIONAL RULES. - Page 8 • Make sure the PTO shaft is firmly attached to the tractor and the implement and that the locking pins have snapped shut. • To connect and disconnect the PTO shaft, please refer to the manufacturer’s instruction manual and to your tractor’s instruction manual. •...
- Page 9 • Before performing maintenance on this machine, drive to a level area, turn off the engine, disengage the PTO, lower the machine, set the brakes and remove the ignition key . • Keep all persons away from the service area while performing maintenance. •...
-
Page 10: Main Checks
MAIN CHECKS Before connecting the machine to the tractor, read the following instructions: • Make sure the weight and power of the tractor is correct for the machine you want to connect. If you have any doubt, refer to the technical specifications. •... -
Page 11: Technical Specifications
R PM R PM inch i nch inc h c m 128 cm 128 inc h 50 inc h 50 BTH 250 70-110 51-81 540 / 1000 1845 / 1950 109 11 4 880 1936 cm 71 cm 185 inc h 28... -
Page 12: Hitching The Machine
HITCHING THE MACHINE The machines described in this manual do apply to any kind of tractor provided of universal three-point hitch. The characteristics (length, diameter of the holes for the lifting pins) of the tractor's lifting arms depend on the type of tractor, therefore it is necessary to prepare the machine in order to properly hitch the machine. - Page 13 • Connect the 3rd point of the tractor to the high plates of the mower by using a pin and an hair pin (fig. 1). • Lift the mower and fix the stand support high in its socket with the supplied pin. •...
-
Page 14: Cutting Height Regulation
CUTTING HEIGHT REGULATION Rear roller adjustment Rear roller adjustment is carried out by regulating the two roller support plates as follows (fig. 1): • Unscrew and remove screws “a” from the roller’s plates • Adjust the wheel as preferred. • Place screws “a”... - Page 15 Wheel-equipped machines If your mower is equipped with two front wheels, the cutting height adjustment is carried out by adjusting the spacers of each wheel. (fig. 2) • remove the split pin. • Adjust the skid as needed. • Insert again the split pin. For each wheel, please adjust the two support at the same height.
-
Page 16: Operating The Implement
OPERATING THE IMPLEMENT After having completed all safety checks and made sure the mower is parallel to the ground, proceed as follows:: • Raise the machine off the ground in order to let the knives start moving without touching ground to avoid damages. •... - Page 17 The machine must be used only if equipped with all its components as supplied by the Manufacturer (safety devices included). The implement must not operate without the rear shield or modified as to leave the rear shield open. No other component can be modified. INSTRUCTION MANUAL Page 17 Revised 2013...
-
Page 18: Troubleshooting
TROUBLESHOOTING During work several problems can happen. UNUSUAL NOISES. During operations, if the implement produces loud, unusual noises, the operator must immediately stop it and follow these instructions:: • Make sure there are no broken mechanical parts. • Verify that the gearbox contains the correct amount of oil. If the oil level is too low (please see the chapter on maintenance), the gears of the conic couple are not adequately lubricated and will overheat the remaining oil if operations continue. - Page 19 CUTTING ANOMALIES. If after the operations the mower failed to obtain a clean, even cut, the operator must follow these instructions: • Check knives conditions. The knives can be worn and less effective. Please replace them. • Check if the cutting height has been properly set up. The regulation of the implement may be uneven.
-
Page 20: Disconnecting The Machine
DISCONNECTING THE MACHINE The disconnection of the machine from the tractor must be carried out on a flat surface. It a dangerous operation. Please read the following instruction carefully. • While remaining in the tractor seat, put the tractor PTO in neutral. •... -
Page 21: Storage
STORAGE The mower represents an investment for the operator. If left unused for a long time, we suggest to follow these simple rules: • Wash and dry the machine • Check all moving parts. In case of excessive wear replace the parts or contact your local dealer. - Page 22 FIRST USE OR USE AFTER A LONG PERIOD OF INACTIVITY. Before using the implement for the first time or after a long period of inactivity, follow these steps: • Make sure the machine is not damaged; • Verify all mechanical parts They must be in good state and they must not present signs of rust;...
-
Page 23: Maintenance
MAINTENANCE The efficiency and lifetime of this mower strongly depend on the observance of its maintenance schedule. The schedule reported below is subject to change since it refers to a normal usage scenario and does not take into consideration heavier working conditions which require a more frequent maintenance. - Page 24 EVERY 20 WORKING HOURS. • Check belt tensioning by measuring belt tightness. Correct tightness results when belt deflection along the front side of the belt is 1 cm, as a result of the pressure applied with the index finger to the centre of the belt length (see fig. 1). MAX 10 mm FIG.
- Page 25 Belt Cover Transmission tube Fig.2 A high number of worn belts in a short time is not normal. Please check that the rotor rotates freely without obstacles blocking its movement. • Make sure the knives are still sharp and that they do not show signs of breakages or excessive wear.
- Page 26 EVERY 50 WORKING HOUR. • Proceed greasing rear roller’s lateral supports. Before greasing, clean the grease nipple correctly to avoid the entrance of dirt, grass and mud. Use lithium type grease NLGI2 • For versions equipped with rear wheels, lubricate the wheel’s articulated supports. Be- fore lubricating, clean the grease nipple correctly to avoid the entrance of dirt, grass and mud.
- Page 27 FIRST 100 WORKING HOURS. • When the machine has done its first 100 hours, change the oil from the gearbox. To proceed, remove the plug located under the box, drain all the oil through the discharg- ing hole, then fill in with new oil through the filler hole. This substitution is necessary because the gears are new and so are subject to quicker worn.
- Page 28 TOXICOLOGICAL INFORMATION ABOUT LUBRICANTS. PROTECTIVE TYPE OF DANGER FIRST CARE EQUIPMENT Possible rash after Wash thoroughly with SKIN Safety gloves or lotion prolonged exposure soap and water Possible irritation on EYES Protective glasses Rinse with running water contact Maintain an oil mist level Expose to fresh air and Possible irritation after INHALATION...
-
Page 30: Limited Warranty Policy
The judgement of SOVEMA S.r.l. in all cases of claims under this warranty shall be final and conclusive and the original purchaser agrees to accept its decisions about all questions as to defects and/or to the exchange of any part or parts. - Page 31 • The machine was tested and operates correctly. (Address) (Address) ___________________________________ ___________________________________ ___________________________________ ___________________________________ ___________________________________ ___________________________________ Date: Signature: Date: Signature: DELIVER TO SOVEMA S.R.L. INSTRUCTION MANUAL Page 41 Revised 2013...
- Page 32 INSTRUCTION MANUAL Page 42 Revised 2013...
- Page 33 Sovema S.r.l. Via Olmo 6/10 41013 Gaggio In Piano (MO) ITALY Tel: 0039 (0)59 93 85 85 Fax: 0039 (0)59 93 85 12 e-mail: sovema@sovema.com www.sovema.com WARRANTY REGISTRATION This warranty will become valid only if this form is completed and signed by both the Purchaser and the Deal- er and is returned within 8 days of purchase date! IF NOT WARRANTY IS INVALID.
-
Page 34: Sovema Product Line
SOVEMA PRODUCT LINE HIFT OTARY ILLERS • 15 different models • for tractors from 12 to 70 HP • working width from 80 to 200 cm. IXED OTARY ILLERS • More than 45 different models • for tractors from 15 to 130 HP •... - Page 35 LAIL OWERS HREDDERS • more than 50 different models • for tractors from 15 to 100 HP • working width from 100 to 290 cm. LAIL OWERS OLLECTORS • 6 different models • for tractors from 30 to 60 HP •...
- Page 36 OTARY AKES • 3 different models • for tractors from 30 to 50 HP • working width from 340 to 450 cm. EDDERS • 6 different models • for tractors from 10 to 40 HP • working width from 250 to 750 cm. ICKLE OWERS •...
-
Page 37: Declaration Of Compliance Ce
: 059-938512 E-MAIL : sovema@sovema.com WEB site : http://www.sovema.com DECLARATION OF COMPLIANCE CE The undersigned company, Sovema S.r.l., Via Olmo 6, 41013 Gaggio di Piano (MO) Italia Hereby declares the machine Model :……………………………………………… Serial Nr : ……………………………………………… Year : …………...
