DHP Maven 4124429 Instruction Booklet

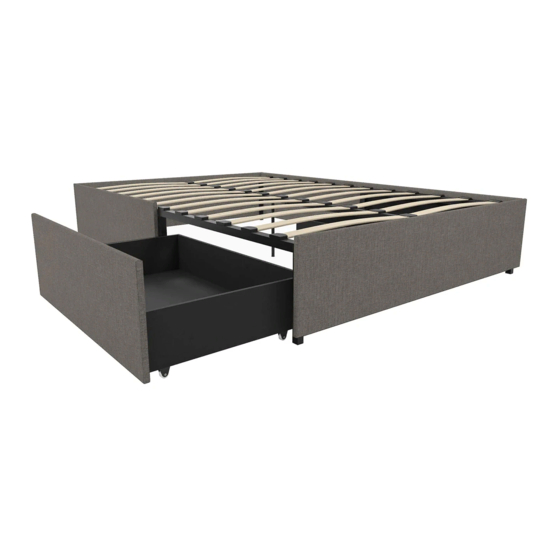

Platform bed with storage, full, grey linen
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
TM
Weight Limit: 450 Lb / 204 Kg
N.C. - 4/6/2017
© 2014 Dorel Home Products All Rights Reserved
Maven Platform Bed With Storage
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4124429
Grey Linen
Lot Number
B34412442900 - 10125-M
Full
1
