DHP 5440196 Manual

DHP 5440196 Manual

Silver metal x-loft bed - mx
Hide thumbs Also See for 5440196:

Advertisement

Available languages

Available languages

Quick Links

150 Lbs

Weight Limits:

68 Kgs
WARNING
• WARNING FOR YOUNG CHILDREN - This product contains small components, please ensure that they are kept away from small children.Children under the age of 6,
small infants and babies must not sleep on this bed for safety reasons. To prevent injury and damage to this unit, PROHIBIT jumping on it.
• Recommended # of people needed for assembly 2 (however it is always better to have an extra hand.) Estimated assembly time is 2 hour.
• THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE
0
29986 54402
5
100 Lbs
45 Kgs
5440196

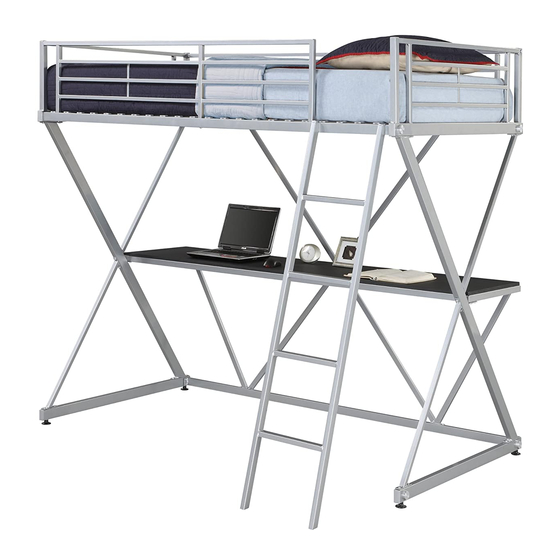

SILVER METAL X-LOFT BED - MX
DO NOT RETURN PRODUCT TO THE
STORE
STOP
Individual stores do not stock parts.
If a part is missing or damaged, call our
toll-free customer service line. We will
gladly ship your replacement parts FREE
of charge.
1-800-267-1739
Need Parts or Assistance?
or access our website
www.dhpfurniture.com
For prompt, reliable service; please have your assembly
manual ready.
Date of Purchase
___ / ___ / ___
Lot Number
_________
B34544019600

Advertisement

loading

Summary of Contents for DHP 5440196

  • Page 1 5440196 29986 54402 SILVER METAL X-LOFT BED - MX 150 Lbs DO NOT RETURN PRODUCT TO THE Weight Limits: 68 Kgs STORE STOP Individual stores do not stock parts. If a part is missing or damaged, call our toll-free customer service line. We will gladly ship your replacement parts FREE of charge.
  • Page 3 HARDWARE LEFT BASE RIGHT BASE T905880 KING SUPPORT T905820 QTY: 1 T905790 UPPER BRACE QTY: 1 QTY: 2 BOTTOM BRACE T905810 T905800 QTY: 2 QTY: 2 HOLE AGUJERO NO HOLES 0 AGUJEROS HOLE AGUJERO UPPER SIDE RAIL T905850 QTY: 1 HOLE AGUJERO HOLE...
  • Page 4 HARDWARE DESK SUPPORT REAR GUARD RAIL SLATS PACK FRONT GUARD RAIL T905920 T905900 T905910 T905890 QTY: 1 QTY: 1 QTY: 1 QTY: 1 Please respect the direction of the arrow when assembling DESK REAR STRETCHER T905760 REAR BRACE T905930 QTY: 1 T905940 QTY: 2 QTY: 2...
  • Page 5 HARDWARE BOLT M6 X 15 mm T136140 QTY: 48 BOLT M6 X 35 mm BOLT T136060 M6 X 40 mm BOLT QTY: 2 T136080 M6 X 45 mm QTY: 1 T136100 BOLT QTY: 3 M6 X 60 mm T136120 QTY: 6 BOLT M6 X 25 mm T136040...
  • Page 6 ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH, TO HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS. TO PREVENT INJURY, DHP RECOMMENDS ONE TWIN SIZE MATTRESS AND ONE FULL SIZE MATTRESS TO BE USED. USE ONLY A TWIN MATTRESS WHICH IS 74"-75" LONG AND 37 1/2"-38 1/2" WIDE ON UPPER BUNK.
  • Page 7 As shown in detail (1 & 2), attach the Right Base (D) to the King Support (A) & Bottom Brace (B). As shown in detail (3 & 6) attach the Upper Brace (C) and Safety Bracket (V) to the King Support (A). Attach the Right Guard Rail (E) to the Upper Brace (C) &...
  • Page 8 As shown in detail (1 & 2), attach Side Rails (H , G & I) to the Left and Right Guard Rails (E & F) with bolts (5). As shown in details (1, 3, 4 & 5), attach the Front & Rear Guard Rails (K & L) to Left and Right Guard Rails (E & F) with bolts (2), and to Side Rails (H &...
  • Page 9 As shown in detail (1), insert, by hand, the slats (M) into the Upper Side Rails (H & G). Attach the ends of the belt (M) to the Right & Left Guard Rails (E & F) with Screw (7), as shown in detail (2). As shown in detail (3), attach the Ladder (R) to the Ladder Side Rail (H) with Bolts (4).
  • Page 10 Attach the Desk (Q) to the Desk Support (N) with Bolts (6), as shown in the details below. Hardware Required 10 /15 B34544019600...
  • Page 11 As shown in detail (1), attach the desk "assembled in step 4" to the Upper Brace (C) with Bolts (5). STARTING FROM THE TOP as shown in detail (2), attach the Rear Stretchers (O) to the Upper Side Rail (G), Desk Support (N) and the Lower Stretcher (I) with Bolts (9 &...
  • Page 12 5440196 PLATA CAMA DE METAL- MX Limites Del Peso: 150Lbs\68Kgs , ESCRITORIO : 100 Lbs\45 kgs NO REGRESE ESTE PRODUCTO A LA TIENDA ALTO ALTO Las tiendas no tienen partes. Si faltan partes o las partes están dañadas llame gratis al servicio al cliente. Con gusto mandamos las partes. Sin cargo alguno.
  • Page 13 PROBABILIDAD DE QUEDAR ATRAPADO O DE CAÍDAS. * PARA PREVENIR LESIÓN, DHP RECOMIENDA QUE SE UTILICE UN COLCHÓN DE TAMAÑO INDIVIDUAL Y UN COLCHÓN DE TAMAÑO MATRIMONIAL. * UTILICE SOLAMENTE UN COLCHÓN INDIVIDUAL QUE SEA 74"-75"DE LARGO Y 37 ½"-38 1/2" DE ANCHO EN LA CAMA SUPERIOR.
  • Page 14 PÁGINA 07 Según las indicaciones del detalle (1 & 2), ata la base correcta (D) al & de rey Support (A); Apoyo inferior (B). Según las indicaciones del detalle (3 & 6) ata el apoyo superior (C) y el soporte de seguridad (V) al rey Support (A). Ate el carril de protector derecho (E) al & superior del apoyo (C);...
