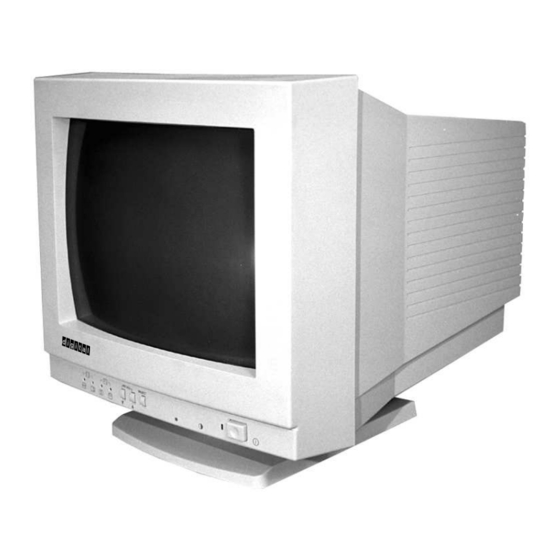

- Page 1 PCXBV-Rx Multimode 15- inch Color Monitor Installation and Operating Information Order Number: EK–PCXBV–RX. A01...
- Page 2 Radio Interference Regulations of the Canadian Department of Communications. DEC and the DIGITAL logo are trademarks of Digital Equipment Corporation. VGA is a registered trademark of International Business Machines Corporation. SVGA and VESA are registered trademark of the Video Electronic Standards Association.
-
Page 3: Table Of Contents
Contents ......About This Guide 1 Installation Install the tilt/swivel stand....1–1 Monitor Installation . - Page 4 Figures PCXBV-Rx Monitor (Control Panel) ..1–1 1–2 Tables User Controls and Functions ... 1–1 1–3 Identifying and Correcting Problems ..
-
Page 5: About This Guide
About This Guide Overview The PCXBV-Rx Monitor is a 15-inch multi-mode color monitor with VGA, SVGA and 1024 768/60Hz non-interlaced modes. The PCXBV-Rx offers the following features: • Anti-glare screen with unlimited display colors • Automatic selection of horizontal and vertical frequencies •... - Page 6 This product has been designed and manufactured to minimize the impact to the environment. Audience This guide is intended for users who wish to install the monitor. Conventions The following conventions are used in this document: Convention Meaning Note Provides general information. Caution Provides information to prevent damage to equipment.
- Page 7 Installation/Operating Guidelines Observe the following basic rules for installation and use. Do . . . • Use the power cord supplied with the monitor, which is UL- and CSA-approved, designed for a grounded outlet. • Turn the monitor off when you clean the monitor or if you do not use it for an extended period of time.
-
Page 9: Installation
Installation 1.1 Install the tilt/swivel stand. 1. Insert the hooks on the stand into the slots in the bottom of the monitor. 2. Apply pressure near the latch so it is secure. Installation 1–1... -
Page 10: Monitor Installation
The power indicator LED to the right of this switch should light green. Figure 1–1 PCXBV-Rx Monitor (Control Panel) Contrast – Turn this control to adjust the contrast. Brightness—Turn this control to adjust the brightness. - Page 11 Installation 1.2 Monitor Installation Table 1–1 User Controls and Functions Control Screen Adjustment Vertical Center – Turn this control for correct vertical display position. Vertical Size – Turn this control for correct vertical display size. Horizontal Center – Turn this control for correct horizontal display position.
-
Page 13: Servicing
Servicing 2.1 Cleaning the Monitor To clean the monitor: 1. Unplug the monitor. 2. Clean the monitor with a soft, slightly damp cloth. Do not use an aerosol cleaner directly on the screen. Caution Do not use benzene, thinner, or any volatile substance to clean the monitor, as these product may discolor the monitor’s cabinet. -
Page 14: Troubleshooting Table
Servicing 2.2 Maintenance and Troubleshooting 2.2.2 Troubleshooting Table Use Table 2–1 to identify and correct any problem areas. Table 2–1 Identifying and Correcting Problems Symptom Possible Cause Suggested Solution Display does not Brightness or Contrast Increase the brightness appear. control is set too low. and contrast control setting. -
Page 15: Specifications
Specifications 3.1 Monitor Specifications Monitor 38.1 cm (15 in) non-glare, non-static Active area 26.0 19.5 cm Height 38.0 cm (14.9 in) Width 37.3 cm (14.7 in) Depth 38.7 cm (15.2 in) Swivel 135° Tilt -5° to +15° Weight 13.2 Kg (29 lbs) Video Signal 0.7V p-p R, G, B color (positive) 75 ¡... -
Page 16: Scanning Modes
Specifications 3.2 Scanning Modes 3.2 Scanning Modes To minimize adjustment needs, the monitor has seven factory pre-set display standards, shown in Table 3–1. When the monitor detects any of these display standards, it automatically adjusts the picture size and centering. Table 3–1 Factory Pre-set Resolution and Frequencies Pre-set Addressability Vertical... -
Page 17: Environment
Ozone Depleting Substances (ODS) The PCXBV-Rx is in full compliance with the labeling requirements in the U.S. Clean Air Act Amendments of 1990. It does not contain, nor is it manufactured with, a Class 1 ODS, as defined in Title VI Section 611 of this act.
