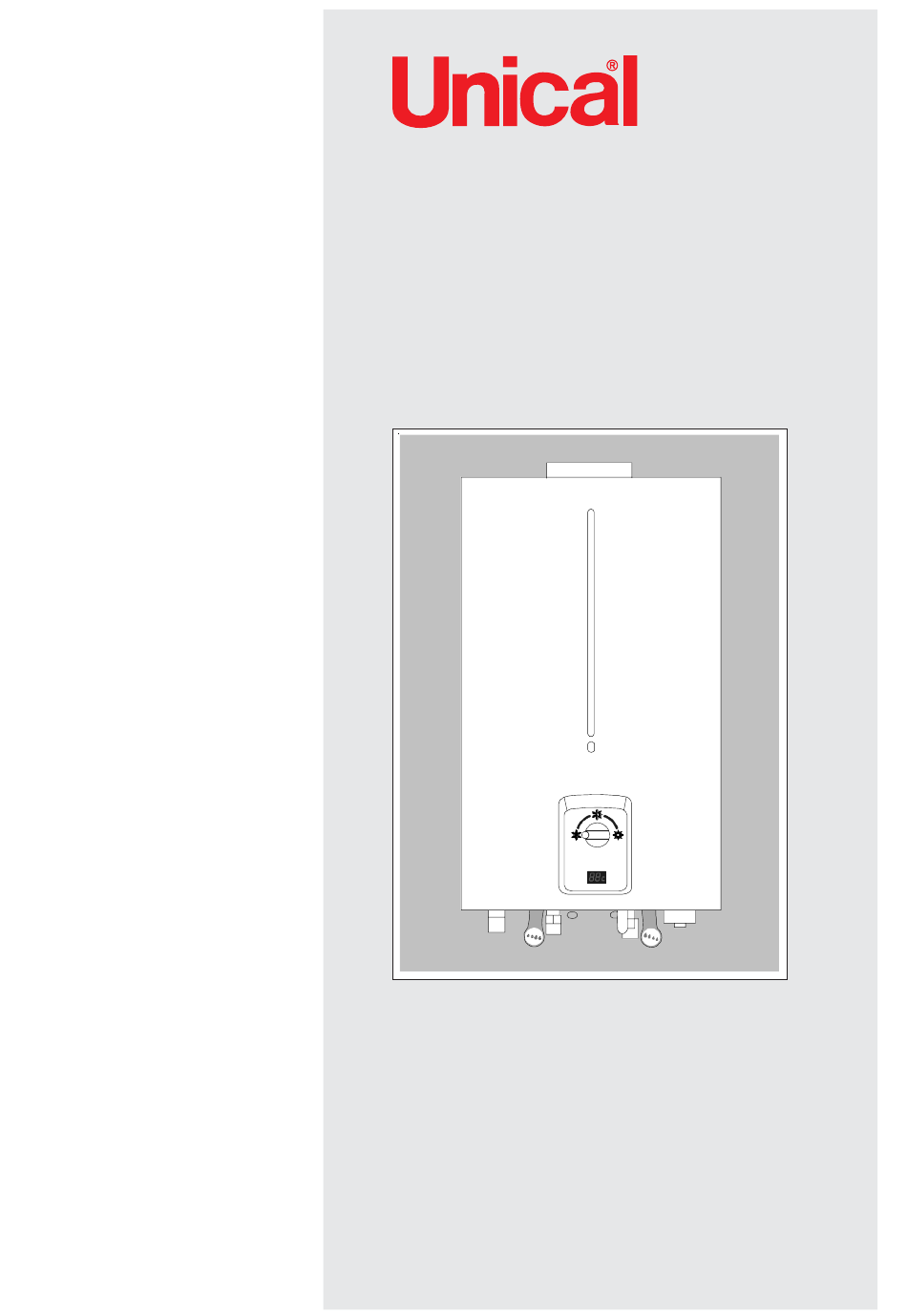

- Page 1 IDRONIK TN 14 Instantaneous gas water heater, type B. INSTRUCTIONS FOR INSTALLER, USER AND SERVICE MAN 00333640 - 2 edition - 04/2011...
-
Page 2: Table Of Contents
Failure to follow the instructions indicated in this manual, which is supplied with the appliance, could cause injury to persons, animals or damage to property. UNICAL shall not be held liable for any injury and/or damage. INDICE GENERAL INFORMATIONS ..................................... -
Page 3: General Informations
Any other use of this appliance will be considered improper.UNICAL declines any responsibility for any damages or injuries caused by an improper use; in this case the risk is completely at the user’s responsibility.In order to use the appliance according to the scopes it was designed for it is essential to carefully follow the instructions indicated in this guide. -
Page 4: Safety Warnings
Servicing or repairs of the appliance must be carried out by UNICAL authorised service technicians; UNICAL recommends drawing up a service contract. Bad or irregular servicing could compromise the safe operation of the appliance, and could cause injury to persons, animals or damage to property for which UNICAL shall not be held liable. -
Page 5: Data Badge
General information 1.6 - DATA BADGE CE marking The CE marking certifies that the appliance complies with: The essential safety requirements of the relevant gas appliances directive 2009/142/EC. The label is positioned on the external part of the frontal shell (to the left side). KEY: 1 = CE surveillance Notified ®... -
Page 6: General Warnings
Please read carefully the instructions contained in this manual Any repairs must be carried out by Unical authorized as they provide important indications regarding the safe technicians and using only original spare parts. Non- installation, use and servicing of this appliance. -
Page 7: Technical Features And Dimensions

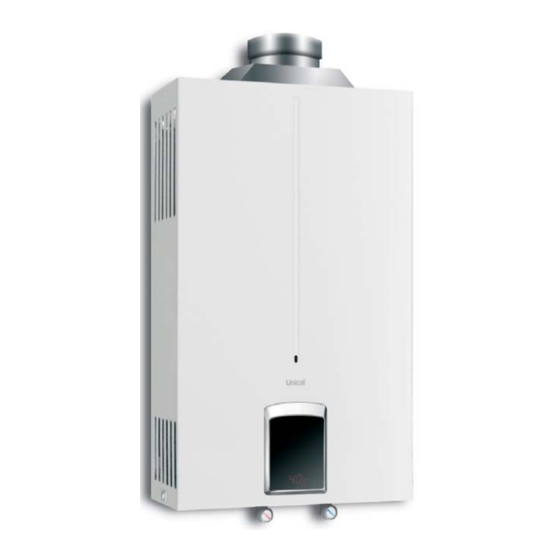

Technical features and dimensions TEHNICAL FEATURES AND DIMENSIONS 2.1 - TECHNICAL FEATURES The water heater IDRONIK TN 14 is an appliance operating COMPONENTS DESCRIPTION: on gas, with atmospheric burner and ultra-flat wet chamber • Atmospheric burner heat exchanger which distinguishes for its extremely redu- •... -
Page 8: Main Components
12 Water heater drain cock 13 Gas inlet 1/2’’ 14 Flame output adjuster 2.4 - OPERATIONAL DATA 2.5 - GENERAL FEATURES IDRONIK TN 14 Nominal input Qn D.H.W. drawing range l/min. da 3 a 14 D.H.W. production with Δt 25 K Minimum input l/min. -
Page 9: Instructions For The Installer
Instruction for the installer INSTALLATION ISTRUCTIONS 3.1 - GENERAL WARNINGS WARNING! WARNING! The appliance must be installed only on a This appliance has to be destined for the vertical flat wall, made of non combustible use for which it has been expressly material. -
Page 10: Installation Standards
UNICAL refuses all liability for injury to persons, animals or damage to property deriving from not having respected the above mentioned recommendations. In the packaging, in addition to the water heater, you can... -
Page 11: Water Heater Location
Instruction for the installer 3.5 - WATER HEATER INSTALLATION 3.4 - WATER HEATER LOCATION Before connecting the water heater the following When selecting the position for the installation of the boiler requirements must be carried out by competent and qualified please comply to the following safety requirements: engineers: a) The system is flushed out with water in order to... -
Page 12: Gas Connection
Instruction for the installer 3.6 - GAS CONNECTION As a safety measure against gas leaks, DANGER! Unical recommends installing a surveillance The gas connection must be carried out and protective system composed of a gas only by a qualified engineer who will have... -
Page 13: Room Ventilation Requirements
Instruction for the installer 3.8- ROOM VENTILATION REQUIREMENTS The appliance has to be installed in a convenient room in - A correct ventilation can be optained also through the conformity with the rules in force, and particularly: addition of more openings, provided the addition of the different sections is not less than that really needed. - Page 14 Instruction for the installer 2 Ø min. 2 Ø min. Slope Slope min. 3% min. 3% Ø Ø 1 m max. 1 m max. DIMENSIONS FOR THE MINIMUM CLEARANCES CONNECTION OF THE SMOKE EVACUATION DUCT Ø 120...
-
Page 15: Electrical Connections
Instruction for the installer 3.10 - ELECTRICAL CONNECTIONS General warnings The use of any power supplied equipment implies the observance of several fundamental rules, such as: - Do not touch the appliance with any wet part of your body and/or barefooted; - Do not pull the supply cables;... -
Page 16: Commissioning
Instruction for the installer 3.11 - INITIAL LIGHTING Preliminary checks Informations to be passed on to the user The user must be instructed on the use and operation of his water heater and in particular: Before the initial lighting of the water heater it •... -
Page 17: User's Instructions
User’s operating instructions 4.2 - USEFUL SUGGESTIONS AND SETTING IN OPERATION If the water heater has some troubles, verify Open the water gate valves the following: Open the gas cock Set the seasonal selector ‘‘A‘‘ in one of its three positions, - close the water tap and then re-open it according to the actual season. -
Page 18: Ordinary Maintenance
User’s operating instructions 4.3 - ORDINARY MAINTENANCE The dust, in time, could cause the lockout of the water heater and compromise the combus- tion with increase of the carbon monoxide. It is Maintenance then necessary to call a qualified technician - Clean monthly the water inlet filter. -
Page 19: Inspection And Service
Unical spare parts facturer cannot be considered responsible. have to be used. Before proceeding with the maintenance operations, follow... - Page 20 - info@unical-ag.com The Unical declines every responsibility for the possible inaccuracies if owed to errors of transcript or press. Also reserves the right to bring those changes that it will hold necessary to it own products or profits, without jeopardizing its...
