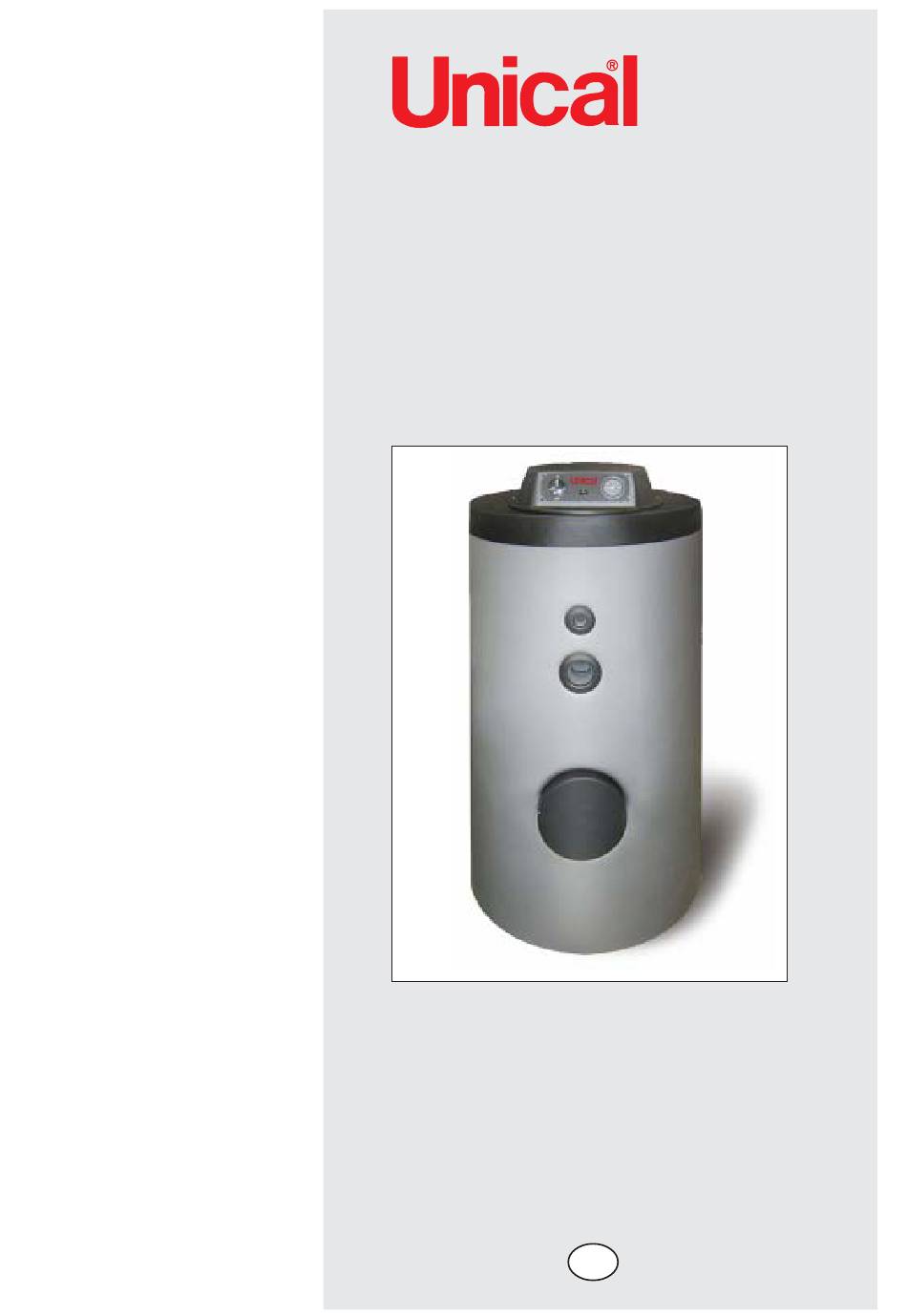

- Page 1 SANICAL SC 150 - 200 - 300 - 400 500 - 600 - 800 - 1000 INSTALLATION, USE AND SERVICING INSTRUCTIONS 00332907 - 2 edition - 09.2008...
-
Page 2: Table Of Contents
The user is NOT allowed to intervene on the appliance . In case of damages to persons, animals or goods, deriving from the non respect of the instructions given in this manual, Unical cannot be conside- red responsible. CONTENT 1 GENERAL INFORMATIONS ..................................... -
Page 3: General Informations
D.H.W. storage cylinder. Any other use of this appliance will be considered improper. UNICAL declines any responsibility for any damages or injuries caused by an improper use; in this case the risk is completely at the user’s responsibility. -
Page 4: Warnings For The Safety
NEVER try to Service or repair the appliance your self. Servicing and repairs of the appliance must be carried out by authorised service technicians; UNICAL recommends drawing up a service contract. Bad or irregular servicing could compromise the safe operation of the appliance, and could cause injury to persons, animals or damage to property for which UNICAL shall not be held liable. -
Page 5: Data Plate
For all the appliances with options or kit (inclusive those A wrong installation or a bad maintenance can cause dama- electric) only original accessories have to be used. ges to people, animals or things, for which Unical is not re- sponsible and they invalidate the guarantee of the product. -
Page 6: Technical Characteristics And Dimensions
Technical characteristics and dimensions TECHNICAL CHARACTERISTICS AND DIMENSIONS 2.1 - TECHNICAL CHARACTERISTICS The vertical storage tanks SANICAL SC serves for the pro- COMPONENTS DESCRIPTION AND CHARACTERISTICS: duction and the accumulation of the warm water. They have to Coil in carbon steel, with elliptic section and large exchange be connected to a heating system and to the distribution water surface, glass lined according to DIN 4753 with double layer net. - Page 7 Technical characteristics and dimensions SANICAL SC 300 - SC 400 - SC 500 - SC 600 - SC 800 - SC 1000 MODEL SANICAL SC 1005 1215 1390 1165 1390 1615 1195 1185 1460 1425 1170 1415 1690 1695 1065 1340 1685 1960...
-
Page 8: General Characteristics
Technical characteristics and dimensions 2.3 - GENERAL CHARACTERISTICS SANICAL SC Total water content PU insulation hard type Soft insulation External diametre with 50 mm hard PU insulation External diameter with soft insulation Lower heat exchanger m² Absorbed output Water flow rate necessary for the coil DHW product with prim.@ 80°/60°... -
Page 9: Instructions For The Installation
Instructions for the installer INSTRUCTIONS FOR THE INSTALLER 3.1 - GENERAL WARNINGS Before connecting the appliance an accurate washing of all the pipes of the heating system has to be performed, in order to remove possi- ATTENTION! ble residues or impurity that could jeopardize This appliance must be destined only to the the good operation of the storage tank. -
Page 10: Packing
The Unical declines any responsibility in the case of damages procured to people, animals or things produced by non-observance of the instructions given in this manual. -
Page 11: Hydraulic Connections
Instructions for the installer 3.6 - HYDRAULIC CONNECTIONS SANICAL SC 150 - 600 SANICAL SC 800 - 1000 Ric. Ric. Description SANICAL SC 150÷600 SANICAL SC 800÷1000 Hot water outlet Rp 1 R 1 ¼ Flow from the boiler Rp 1 Rp 1 ¼... -
Page 12: Basi Installation Scheme
Attention. towards which the Unical cannot be consi- The hydraulic scheme shown in this manual dered responsible. is only explanatory; for its sizing and the configuration of the system it is necessary to consult a trained thermician office. -
Page 13: Diagrams Of The Pressure Losses
Instructions for the installer 3.9 - DIAGRAM OF PRESSURE LOSSES SANICAL SC 150 - 200 - 300 SANICAL 150 inf. SANICAL 200 inf. SANICAL 300 inf. - Page 14 Instructions for the installer SANICAL SC 400 - 500 - 600 SANICAL 400 inf. SANICAL 500 inf. SANICAL 600 inf.
- Page 15 Instructions for the installer SANICAL SC 800 - 1000 SANICAL 800 inf. SANICAL 1000 inf.
-
Page 16: First Utilisation
Unical cannot be are fitted. considered responsible. - Page 17 - Clean the inside with a strong water jet. If necessary, to original spare parts from Unical have to be used. eliminate scaling deposits use a proper plastic or wooden tool and rinse.
- Page 18 Unical, with attached copy of the records of the maintenance made on the storage tank by an authorised 3) Lack of service according to the instructions indicated in technician.
-
Page 19: Rekord Of The Servicing
Installation site:..........User name: ............® Model:..............Serial No.: ............... Installation date:..........SERVICE REKORD Stamp ANODE INSPECTION: REPLACEMENT FLANGE GASKET REPLACEMENT CLEANING AND GENERAL CONTROL Date............OTHER............................Signature............. Stamp ANODE INSPECTION: REPLACEMENT FLANGE GASKET REPLACEMENT Date............CLEANING AND GENERAL CONTROL Signature............. - Page 20 - info@unical-ag.com La Unical declina ogni responsabilità per le possibili inesattezze se dovute ad errori di trascrizione o di stampa. Si riserva altresì il diritto di apportare ai propri prodotti quelle modifiche che riterrà necessarie o utili, senza pregiudicarne le caratteristiche essenziali.
