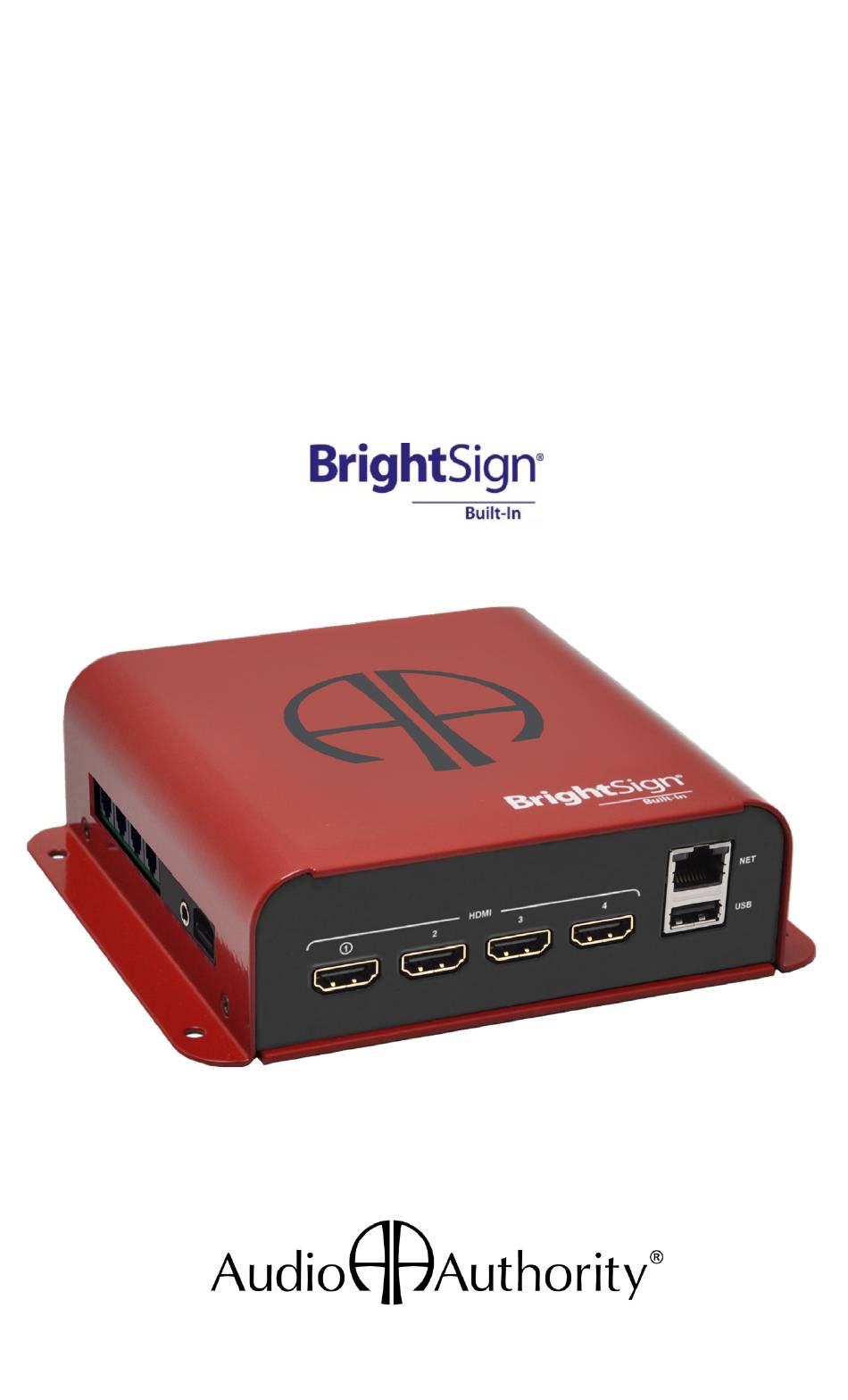

- Page 1 User Manual MediaHub With 4-way Video Distribution Model MH4-HD...
- Page 3 Introduction The Model MH4-HD adds multiple video outputs to the MediaHub platform. For demo systems that require multiple video sinks, the Model MH4-HD acts as its own 1:4 distribution amplifier. Connect up to four HDMI sinks (televisions, soundbars, A-V receivers, etc.) to the player; each output provides identical 1080p video signal, and individual CEC control of the sink.
- Page 4 Four HDMI Outputs The four HDMI outputs deliver video, and 5-channel digital audio via HDMI cables to four HDMI display screens, AVRs or sound bars. CEC commands can be used to control the sync device. Video File Information The MH4-HD supports multiple video codecs including MPEG4, with maximum video resolution up to 1080p.
- Page 5 The RS-485 control bus allows the MH4-HD to interact with devices such as the Audio Authority TouchSelect panels or the 1895 Visual Volume knob. The MH4-HD can also control switch modules or amplifiers that are linked via the Control Bus.
- Page 6 Sample Button Commands STRUCTURE EXAMPLE RESULT [PRESS#=#] [PRESS0_2] MH4-HD PSB 2 PRESS SENT [RELEASE#] [RELEASE0_2] MH4-HD PSB 2 RELEASE SENT [BLINK#_#] [BLINK0_4] MH4-HD PSB 4 LED BLINKS [BLINK#_#,#,#,#] [BLINK0_1,2,3,4] MH4-HD PSB 1,2,3,4 LEDS BLINK [LEDON#_#] [LEDON0_6] MH4-HD PSB 6 LED ACTIVATES [LEDON#_#,#,#,#] [LEDON0_3,4,5,6] MH4-HD PSB 3,4,5,6 LEDS ACTIVATE...
- Page 8 2048 Mercer Road, Lexington, KY 40511-1071 USA 800-322-8346 • 859-233-4599 • Fax: 859-233-4510 E-183 support@audioauthority.com • www.audioauthority.com Rev.20190628...
