Page 1: User Manual

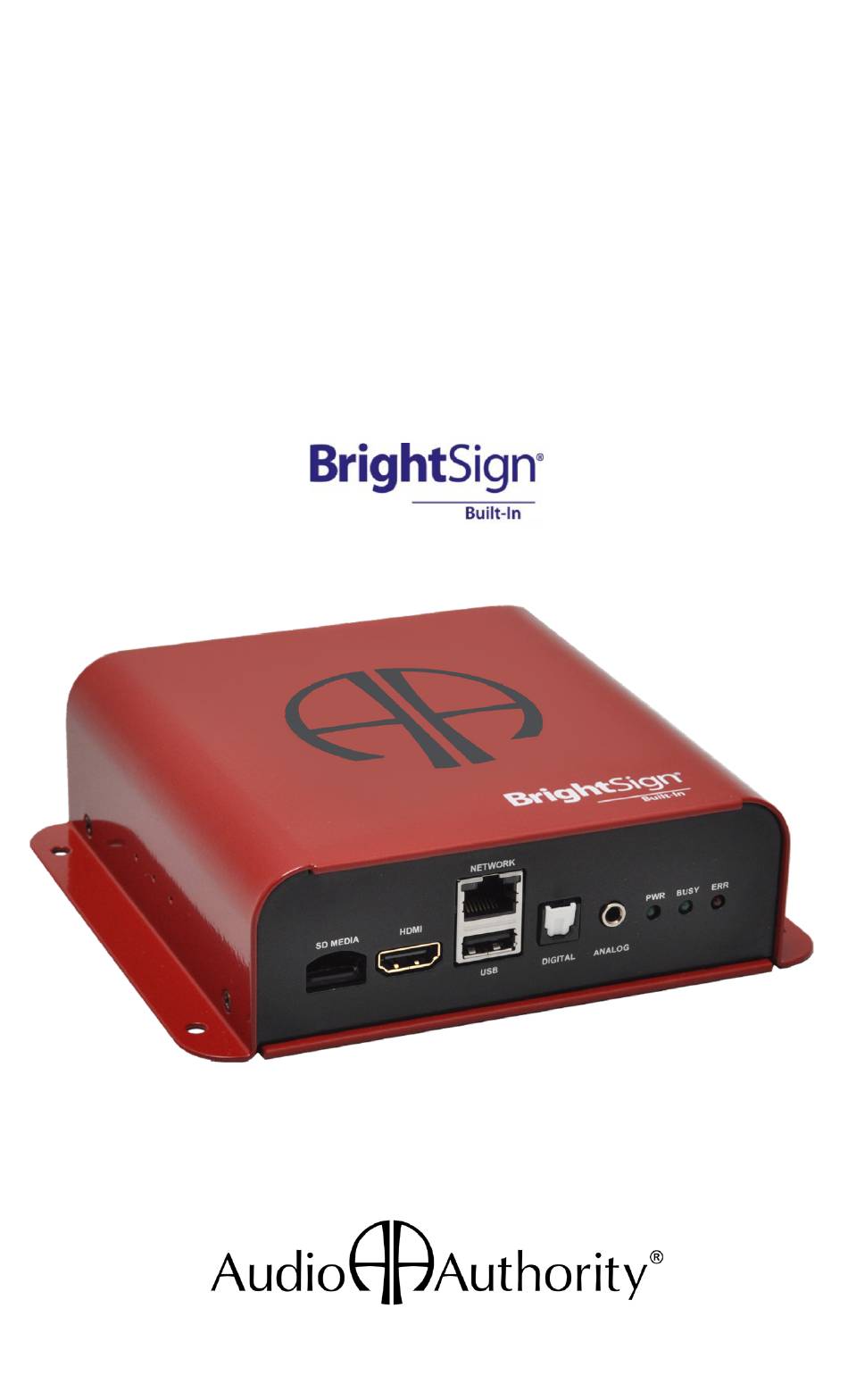

User Manual MediaHub Model MH2-HD... - Page 3 Introduction With a BrightSign player built-in, the Model MH2-HD produces native 1080p video and high fidelity audio, with all the custom behaviors made possible by BrightAuthor software. Multiple ports on the MH2-HD link interactive peripherals like push-buttons and serial control devices including touch screens and touch panels. Update media content and BrightAuthor programming via Ethernet, or update the SD card locally.
-
Page 4: Hdmi Output
HDMI Output The MH2-HD HDMI output delivers 1080p video, and multiple audio formats via an HDMI cable to HDMI display screens, AVRs or sound bars. CEC commands can be used to control the sync device. Video File Information The MH2-HD supports multiple video codecs including MPEG4, with maximum video resolution up to 1080p. - Page 5 The RS-485 control bus allows the MH2-HD to interact with devices such as the Audio Authority TouchSelect panels or the 1895 Visual Volume knob. The MH2-HD can also control switch modules or amplifiers that are linked by the Control Bus.
-
Page 6: Firmware Update
Sample Button Commands STRUCTURE EXAMPLE RESULT [PRESS#=#] [PRESS0_2] MH2-HD PSB 2 PRESS SENT [RELEASE#] [RELEASE0_2] MH2-HD PSB 2 RELEASE SENT [BLINK#_#] [BLINK0_4] MH2-HD PSB 4 LED BLINKS [BLINK#_#,#,#,#] [BLINK0_1,2,3,4] MH2-HD PSB 1,2,3,4 LEDS BLINK [LEDON#_#] [LEDON0_6] MH2-HD PSB 6 LED ACTIVATES [LEDON#_#,#,#,#] [LEDON0_3,4,5,6] MH2-HD PSB 3,4,5,6 LEDS ACTIVATE... - Page 7 Example System: Sound Bars The MH2-HD does more than play media in this engaging sound bar demo - it coordinates a complex audio demo with video and lighting effects. Customers can audition sound bars, select media, add rear speakers, compare TV speakers to sound bars, and adjust volume. Push a button on the right to hear a sound bar, which also triggers the first media file to play, and the shelf to light up.
- Page 8 2048 Mercer Road, Lexington, KY 40511-1071 USA 800-322-8346 • 859-233-4599 • Fax: 859-233-4510 E-182 support@audioauthority.com • www.audioauthority.com Rev.20190628...
