Page 1: User Manual

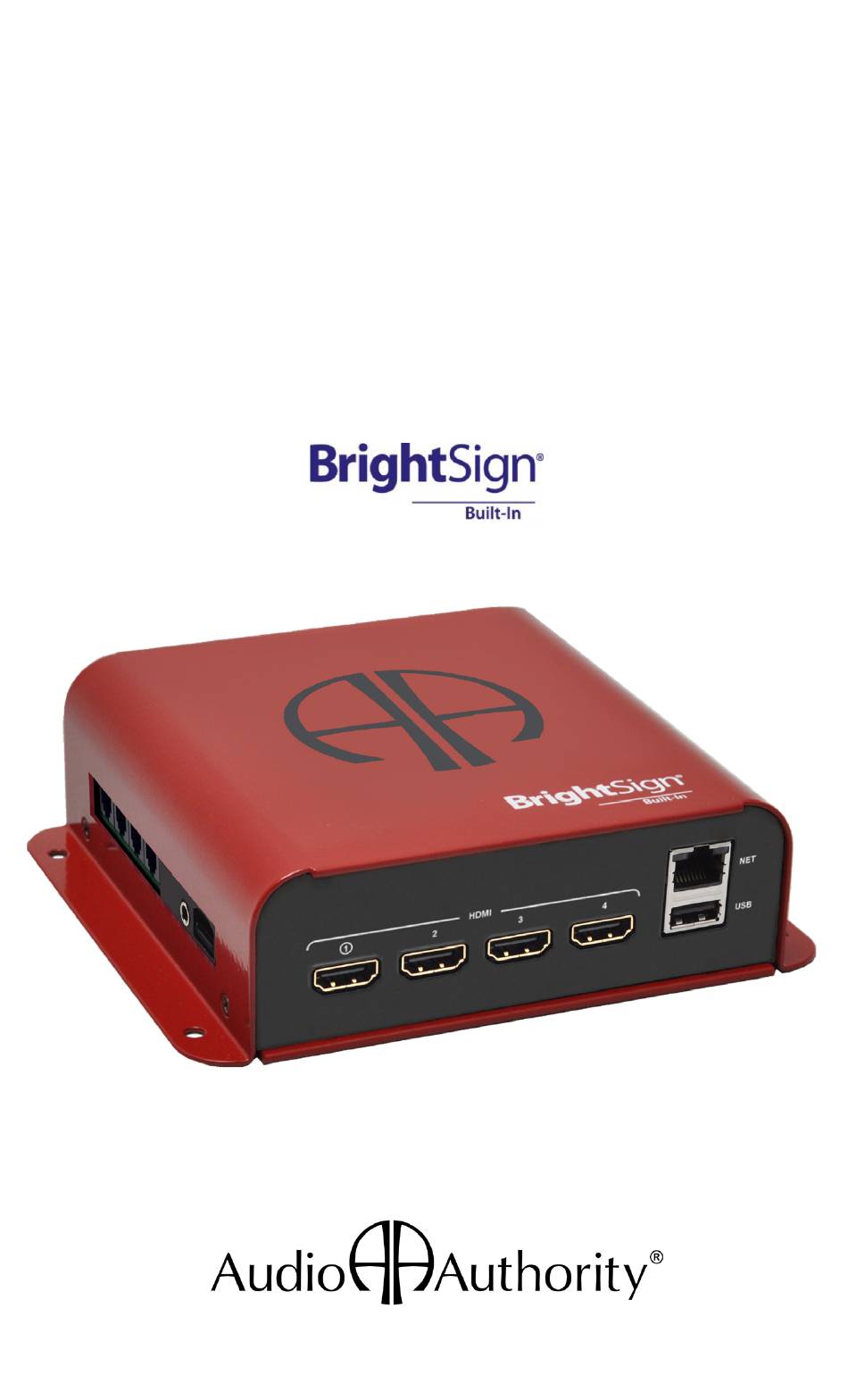

User Manual MediaHub With 4-way Video Distribution Model MH4-4K... - Page 3 Introduction The Model MH4-4K adds multiple video outputs to the MediaHub platform. For demo systems that require multiple video sinks, the Model MH4-4K acts as its own 1:4 distribution amplifier. Connect up to four HDMI sinks (televisions, soundbars, A-V receivers, etc.) to the player; each output provides identical 4K@60 video signal, and individual CEC control of the sink.
-
Page 4: Audio Output
Four HDMI Outputs The four HDMI outputs deliver video via HDMI cables to four HDMI display screens, AVRs or sound bars. CEC commands can be used to control the sync device. Video File Information MPEG-4 encoded videos are supported with maximum video resolution up to 4K@60. - Page 5 The RS-485 control bus allows the MH4-4K to interact with devices such as the Audio Authority TouchSelect panels or the 1895 Visual Volume knob. The MH4-4K can also control switch modules or amplifiers that are linked via the Control Bus.
-
Page 6: Firmware Update
Sample Button Commands STRUCTURE EXAMPLE RESULT [PRESS#=#] [PRESS0_2] MH4-4K PSB 2 PRESS SENT [RELEASE#] [RELEASE0_2] MH4-4K PSB 2 RELEASE SENT [BLINK#_#] [BLINK0_4] MH4-4K PSB 4 LED BLINKS [BLINK#_#,#,#,#] [BLINK0_1,2,3,4] MH4-4K PSB 1,2,3,4 LEDS BLINK [LEDON#_#] [LEDON0_6] MH4-4K PSB 6 LED ACTIVATES [LEDON#_#,#,#,#] [LEDON0_3,4,5,6] MH4-4K PSB 3,4,5,6 LEDS ACTIVATE... - Page 8 2048 Mercer Road, Lexington, KY 40511-1071 USA 800-322-8346 • 859-233-4599 • Fax: 859-233-4510 E-186 support@audioauthority.com • www.audioauthority.com Rev.20190625...
