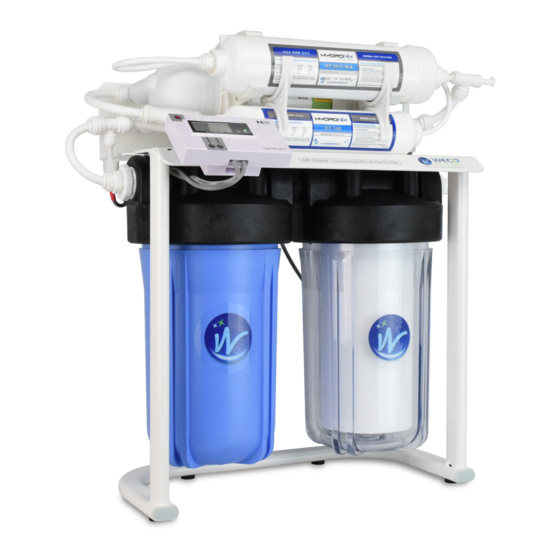

- Page 1 WECO Reverse Osmosis Drinking Water Filter System Manual MX Series www.wecofilters.com Water Engineering Corporation Long Beach, CA U.S.A 1 (888) 675-5187 sales@wecofilters.com...
- Page 2 It is recommended to change the 2 pre-filters at least every 3-5 months. It is advised to change them on time to avoid any damages to the RO System. It is advised to use WECO replacement filters. Using ‘non-WECO’ and poor quality filters may clog the RO system and will also damage the membrane.
- Page 3 5th Stage Filter ALKALINE OR WECO PRODUCT UV SYSTEMS ONLY WATER TANK Product Water AUTO SHUT-OFF VALVE Check Valve Flow Restrictor 3rd Stage WECO COMMERCIAL RO MEMBRANE INLET Feed Water 2nd Stage 1st Stage Fig. #1 CARBON SEDIMENT PRE-FILTER PRE-FILTER...
- Page 4 UV SYSTEMS ONLY 4th Stage Filter WECO PRODUCT WATER TANK Check Valve High-Pressure Flow Restrictor Switch Product Water Inlet Water Solenoid Valve 3rd Stage WECO COMMERCIAL RO MEMBRANE INLET Low-Pressure PUMP Switch 2nd Stage 1st Stage Feed Water Fig. #2 CARBON SEDIMENT...
- Page 5 UV SYSTEMS ONLY WATER TANK Product Water PERMEATA PERMEATA AUTO SHUT-OFF Check Valve VALVE Flow Restrictor BRINE BRINE 3rd Stage WECO COMMERCIAL RO MEMBRANE INLET INLET Feed Water 2nd Stage 1st Stage Fig. #4 CARBON SEDIMENT PRE-FILTER PRE-FILTER Water supply adapter valve...
-
Page 6: Installation Instructions
MX Manual INSTALLATION INSTRUCTIONS Tapping into the cold water line (Using the water supply adapter model FW 1) NEEDLE VALVE NOTE: The drinking water system must be connected to the COLD water supply only. 1. Turn off the cold water supply to the sink faucet by locating the Round or oblong handle on the right side of the sink cabinet and Turning clockwise until the water supply is off. -
Page 7: Mounting The Faucet
MX Manual Mounting the faucet Your unit comes complete with a long reach faucet. NOTE: Air gap option installation instructions are available upon request. The following instructions is for non-air gap option. 1. Slide chrome cover plate and rubber gasket onto stem of faucet and place faucet onto sink with the stem going through the hole. -
Page 8: Positioning The System
MX Manual 3. Make sure to align drain saddle to drilled hole. Attach drain clamp to drain pipe and tighten the two screws evenly. (Fig. # 9) NOTE: The center hole on the sponge must be removed. 4. Connect the Black tubing to the drain clamp. Fig. -
Page 9: Start-Up Procedure
MX Manual START-UP PROCEDURE 1. Check to see all connections are made 2. Check that the pre-filter and pre-carbon sumps are secure using the housing wrench provided. 3. Slowly turn on the water by turning the needle valve counterclockwise. 4. The valve handle on top of the tank should be in the open position, parallel to the valve body 5. - Page 10 AUTO SHUT-OFF Dual TDS meter 2 Usage The DM-2 is an ideal monitor to know if the membrane in WECO reverse osmosis is functioning effectively. Activate the DM-2 so you’ll always know how the water purification system is performing. 1. Press the “POWER” button.
-
Page 11: Care And Maintenance
MX Manual Calibration Your monitor was factory calibrated to 342 ppm. This level is suitable for most tap water/filtered water applications, so it is ready to use out of the box. However, you may need to re-calibrate based on your needs, as well as from time-to-time to ensure best results. To calibrate: 1. -
Page 12: Changing The Batteries
(appears if over 999 ppm) TDS Level Parts per million (equivalent to mg/L) RECOMMENDED SYSTEM MAINTENANCE To properly maintain your WECO drinking water system, please use only genuine WECO water replacement filters at www.wecofilters.com or call us at 1 (888) 675-5187... - Page 13 Return the faucet handle to the closed position and the tank will refill in 2 hours. It is best to drain the system before retiring for the evening. Complete Replacement Filter Kits Available. Contact WECO for more details. Reverse Osmosis Systems Replacement Cartridges System...
-
Page 14: Changing The Membrane
MX Manual CHANGING THE PRE-FILTERS 1. Turn OFF cold water supply to RO system. Turn OFF tank’s ball-valve. Lift up RO faucet lever briefly to relief the built-up pressure inside the RO system. This will make opening the housings easier. 2. -
Page 15: Operating Limits
MX Manual OPERATING LIMITS Water Water Max. TDS pH Range Temperature Pressure Standard 2000 ppm 40 - 85 F 2 - 11 45 - 85 PSI RO System RO with 2000 ppm 40 - 85 F 2 - 11 5 -30 PSI Booster Pump TF-3012 Reverse Osmosis Membrane Specifications AXEON TF-3012-500 Reverse Osmosis (RO) Membrane for light commercial membrane systems is one of... - Page 16 MX Manual Membrane Temperature Correction Factor Temperature Temperature Temperature Temperature Temperature Temperature Temperature Temperature Temperature Temperature Correction Correction Correction Correction Correction °F (°C) °F (°C) °F (°C) °F (°C) °F (°C) Factor Factor Factor Factor Factor 50.0 (10.0) 1.711 57.2 (14.0) 1.475 64.4 (18.0) 1.276...
- Page 17 MX Manual CUSTOMER SATISFACTION IS OF PRIMARY CONCERN, PLEASE CALL IN THE EVENT THERE IS A SERVICE PROBLEM. Notice: Your RO system has been thoroughly tested and inspected for production, rejection, leaks and shut-off functions at our factory. Therefore, it might have some water in it. Warning: Do not use this system if feed water has biological contamination or of unknown source.
- Page 18 MX Manual This page is intentionally left blank © 2017 Water Engineering Corporation...
- Page 19 WECO MX Series Reverse Osmosis Drinking Water Filter System Manual WECO www.wecofilters.com Water Engineering Corporation Long Beach, CA U.S.A 1 (888) 675-5187 sales@wecofilters.com...
