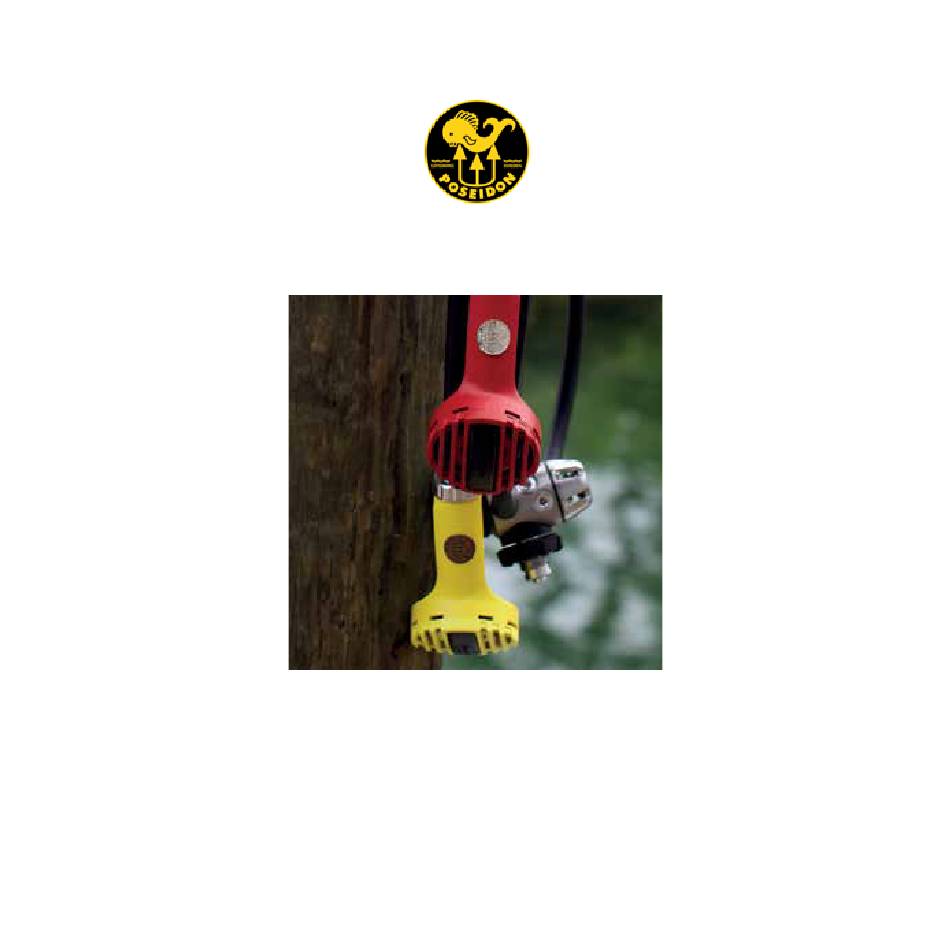

- Page 1 JETSTREAM USER MANUAL 4.0...
-
Page 3: Table Of Contents
JETSTREAM USER MANUAL Table of Contents Table of Contents ....................1 Conventions Used in this Guide ................3 Introduction ......................5 Approvals/Certifications ..................6 Definitions/Abbrevations ..................7 Jetstream ......................8 General safety regulations .................9 Preparations ....................11 Regular maintenance service on your regulator ........12 Assembly ....................13 Mounting the regulator on a tank ............... -
Page 5: Conventions Used In This Guide
This User’s Guide is NOT intended for use as a training manual, or in any way as a substitute for proper training through a legitimate training agency approved by Poseidon AB. It is only intended to provide basic information concerning the Poseidon Jetstream Regulators. - Page 6 ALL RIGHTS RESERVED Manual Version 4.0 - February 2019 DANGER: Do not attempt to use the Poseidon Jetstream without proper training, or without a thorough working knowledge of the material contained in this manual. Careless can cause serious injury or death.
-
Page 7: Introduction
Your new regulator has been designed to provide you with a life time of pleasure as a POSEIDON diver. Our objective is that the equipment you use should not be noticeable, instead it should be at one with the experience and give you total freedom to achieve what every diver dreams about, the ultimate dive. -
Page 8: Approvals/Certifications
00250 HELSINKI Finland Notified body 0403 Production quality assessment according to article 11 B of 89/686/EEC is assessed by: SGS United Kingdom Ltd., Ellesmere Port, CH65 3EN, Notified body number 0120 Poseidon Diving Systems AB is certified according to ISO 9001... -
Page 9: Definitions/Abbrevations

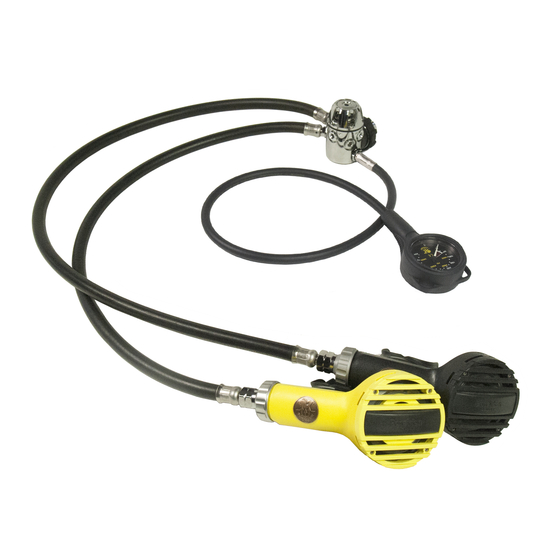

JETSTREAM USER MANUAL Jetstream POSEIDON JETSTREAM MK3 (ART. NR 0100-005 ) The first thing you should do, when you’ve bought a new Jetstream Mk3 regulator, is to check and make sure that all parts are included in the package. Save all reciepts, as you will need those for any future warranty claim. -
Page 10: Jetstream
JETSTREAM USER MANUAL POSEIDON JETSTREAM CLASSIC (ART. NR 3960) Poseidon discontinued the classic Jetstream regulator in 2010, when Jetstream Mk3 was introduced. To high light any differences between the two models, we’ve included the classic model in this user guide. -
Page 11: General Safety Regulations
JETSTREAM USER MANUAL General Safety Instructions Poseidon only warrants the regulator performance as specified herein, and cannot be held responsible for improper preparations, incorrect gas mixing and planning, or diving beyond individual medical, psychological and physical limitations. LIMITATIONS OF USAGE: “Jetstream Mk3 and Jetstream Octopus are Nitrox ready and can be used with... - Page 12 JETSTREAM USER MANUAL may be increased by conditions such as cold water, poor visibility, hard work, and increased depth. Always try to exercise prudent judgement when determining whether or not to dive. Never dive when tired or in poor health. Diving deeper than 50m (164 ft) using gasses other than air is more demanding on the equipment.
-
Page 13: Preparations
Poseidon equipment. • The Poseidon Low pressure hoses are equipped with an inspection hole, allowing you to verify that the hose and connection are properly assembled. Before each use, verify that you can see the rubber hose in the inspection hole. -
Page 14: Regular Maintenance Service On Your Regulator
We recommend that maintenance service should be performed about once every 100 dives or biannual, whatever comes first. Maintenance service should be performed by a service technician that is certified to service Poseidon equipment and only Poseidon original parts should be used. -
Page 15: Assembly
JETSTREAM USER MANUAL Assembly Before you assemble your Jetstream regulator, please pay attention to the following: • The first stage on a Jetstream Classic has four (4) low pressure ports and two (2) high pressure ports. These different types of ports are marked with R/LP for the low pressure ports and HP for the high pressure ports. -
Page 16: Mounting The Regulator On A Tank
JETSTREAM USER MANUAL IMPORTANT! Inspect the o-ring, and make sure it is absolutely free from particles and/or grease. Do not touch the o-ring. Grease and particles can cause a fire. MOUNTING THE REGULATOR ON A TANK The procedure below only describes the way you mount the regulator and it does not replace all the steps you’ve learnt during your dive training. -
Page 17: During A Dive
JETSTREAM USER MANUAL During a Dive What is most distinctive about the Jetstream is that they are easy to use – there aren’t any valves or knobs to change the flow of air, breathing resistance, etc., only a switch that makes freeflowing more difficult when jumping in to the water. You can leave the function and performance of the regulator in our hands and concentrate on what you want to do - dive. -
Page 18: After Diving
If you suspect water has entered the first stage we recommend that you let a service technician, certified to service/repair Poseidon equipment, disassemble your first stage to dry and clean it. • The regulator should be rinsed in fresh water after every dive so as to avoid salt crystal formation around the functional parts. - Page 19 After every dive the equipment should be cleaned according to the instructions in ”After diving.” The regulator does not have to be lubricated beyond what is done by Poseidon. It is how ever recommended that you regularly lubricate the o-rings located on the low- and high pressure hoses and the first stage DIN connection.
-
Page 20: Product Markings
• Interstage pressure (IP) and safety valve opening pressure is preset by Poseidon and readjustment is prohibited. Readjustment of IP will never boost performance. • The use of accessories which have not been recommended can seriously impair the function of your equipment. -
Page 21: Accessories
Thus Poseidon has created a working infrastructure for warranty case handling, If you have a warranty claim on a Poseidon product, please contact the dive shop where you purchased your product. If this isn’t possible, contact the Poseidon representative in the country/market where you reside. -
Page 22: Technical Data
JETSTREAM USER MANUAL Technical data First stage 0110-000 Connection DIN: Connection fixed Yoke: No Technology: Membrane Valve technology: Ball Wheel mounted: Side Low pressure ports: High pressure ports: Jetstream Mk3, art. nr 0100-005 Flow rate 5500 / 194 (l / min / cft/min): Regulator 0100-005 Oxygen clean: Approved to depth... - Page 23 JETSTREAM USER MANUAL First stage 3790 Connection DIN: Connection fixed Yoke: Yes (3790 10) Technology: Membrane Valve technology: Piston Wheel mounted: Side Low pressure ports: High pressure ports: Flow rate 5100 / 180 Jetstream Classic, art. nr 3960 (l / min / cft/min): Oxygen clean: Regulator 3960 Built-in over pressure...
- Page 24 JETSTREAM USER MANUAL Jetstream Mk3 Octopus Color: Yellow Material: ASA, Stainless steel, Brass Weight (gram/oz): 190 gr / 6,7 Oz VVolyme (ml / fl. oz) 80 ml / 2,7 fl. oz Valve technology: Upstream Flow rate 1800 l/min (l / min / cft/min): 63,5 cft/min Jetstream Mk3 Octopus, Oxygen clean:...
- Page 25 Poseidon Diving Systems AB Åkeredsvägen 1, SE-421 63 Västra Frölunda, Sweden Phone: +46 31 734 29 00 E-mail: info@poseidon.com www.poseidon.com...
