2.6 1PPS
1PPS signal is an output pulse signal used for timing application, its electronic characteristic are
list below:

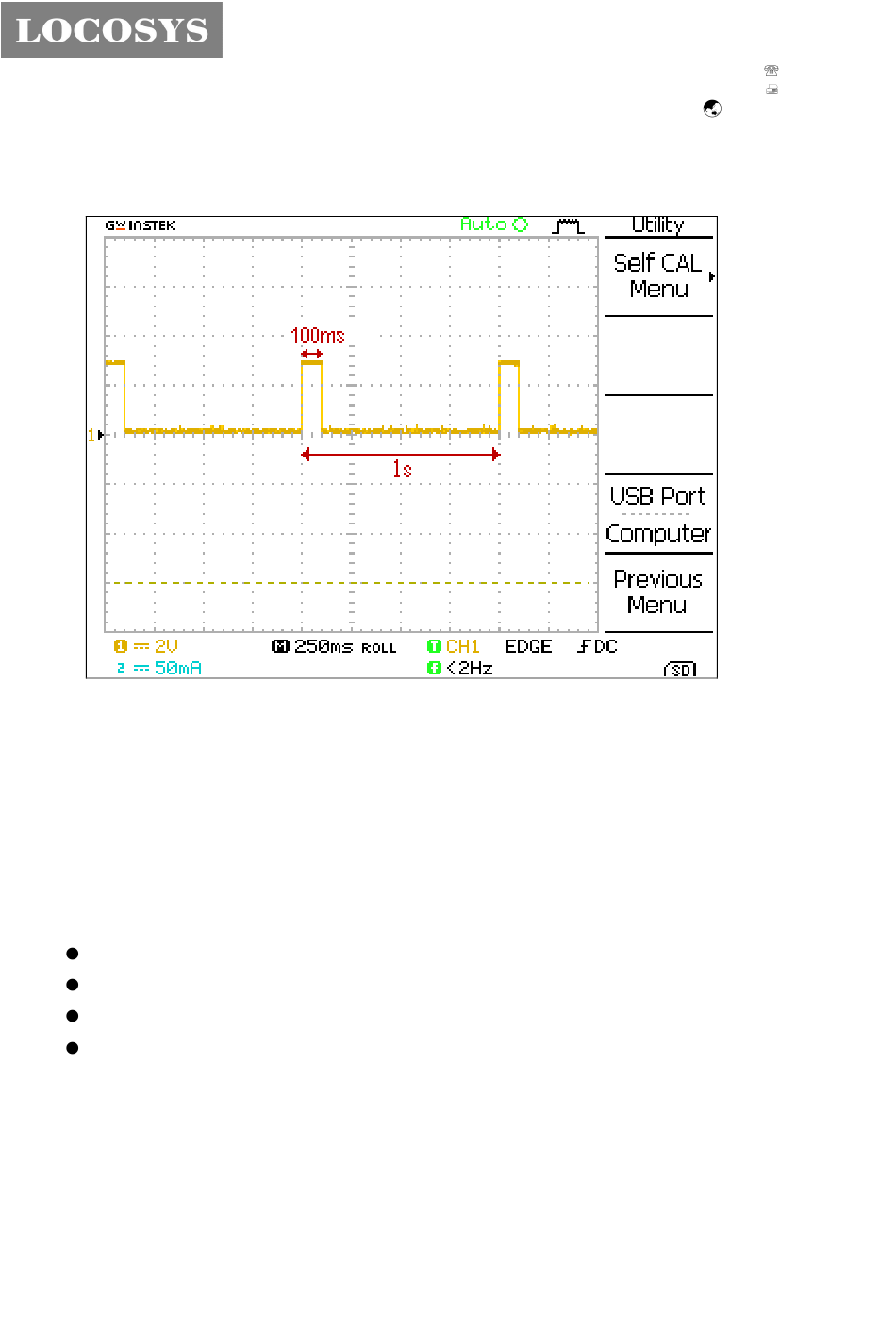

1PPS signal and its pulse width with 100ms duration
Low Voltage level: 0~0.4V
High Voltage level: 2.8~3.1V
Duration: 100ms (Firmware customization for duration is available)
Period: 1s
LOCOSYS provides following 1pps signal output mode for customer selections
Standard GPS module will output the 1pps after the module is 3D_FIX.
Free run 1PPS output after 3D_FIX
GPS module will output the 1pps after the module is 2D_FIX.
A customize firmware also could set the 1PPS plus out as soon as power-on disregard to
3D_Fix or not.
