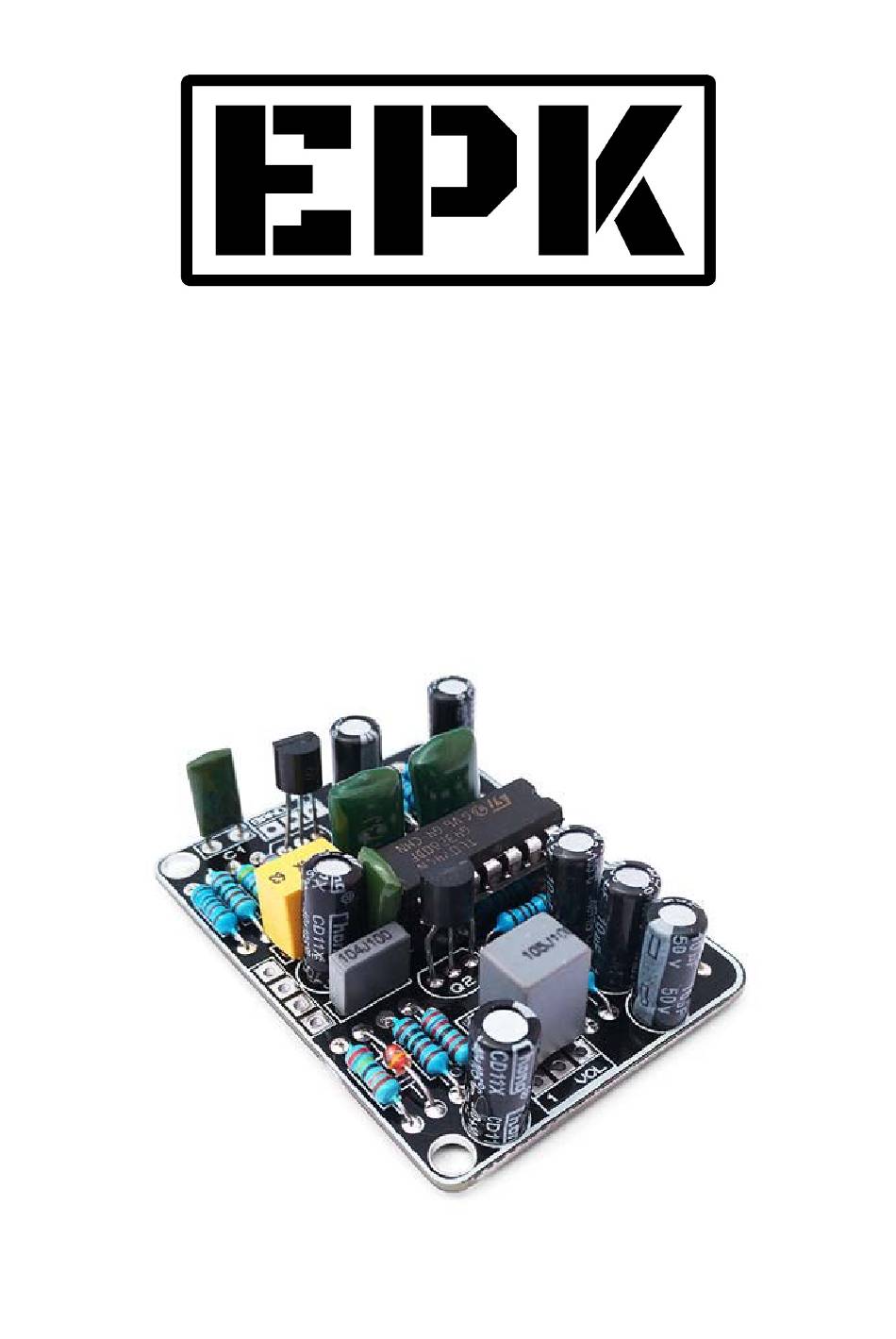

- Page 1 Harmonic Energizer Kit Building Manual...
- Page 2 Effect Pedal Kits: Harmonic Energizer The Harmonic Energizer Kit lets you build your own Systech Harmonic Energizer ™ replica. The Harmonic Energizer is a wide range notch filter: this pedal lets you dial ultra-narrow and resonant filtering, way beyond the range of most wahs. With extreme settings, the Harmonic Energizer even produces some overtones in weird ways well worth experimenting with.
- Page 3 BOM (1/2) Resistors (18) Capacitors (14) R1, R7, R8, R16 2.2n 4.7M C2, C6 1u (electrolytic) R3, R9, R14, R15 C3, C7 R4, R17 C4, C5, C8, C9, C12, C13 10u (electrolytic) 100u (electrolytic) 5.1k 100n 2.2k 100k 240k...
- Page 4 BOM (2/2) Diodes, Transistors and ICs Generic Parts and Potentiometers TL074 Battery clip J113 DC Jack 2N5088 RLED 1k LED resistor 1N914 LED Bezel 3PDT IN, OUT 6.35mm Jacks 5k Linear (B) Potentiometer Band 50k Logarithmic (A) Potentiometer Freq, Gain 100k Logarithmic (A) Potentiometer...
-
Page 5: Component Placement
Component Placement... -
Page 6: Board Layouts
Board Layouts 3PDT PCB Effect PCB... - Page 7 Building Tips 1- Pay attention to the orientation of the 3PDT! In the following picture you can see how the 3PDT pins should be positioned (inserting the pins in the holes can be a bit tight to avoid movement while soldering): 2- For a proper soldering you just have to apply the right amount of solder wire.
- Page 8 Building Tips 5- Pay attention to the parts that have a polarity and make sure they are connected as in the component placement picture: - ICs (they have a small dot or indication that must fit the indication in the board - Electrolytic capacitors (longer pin is connected to the “+”...
- Page 9 Schematic...
