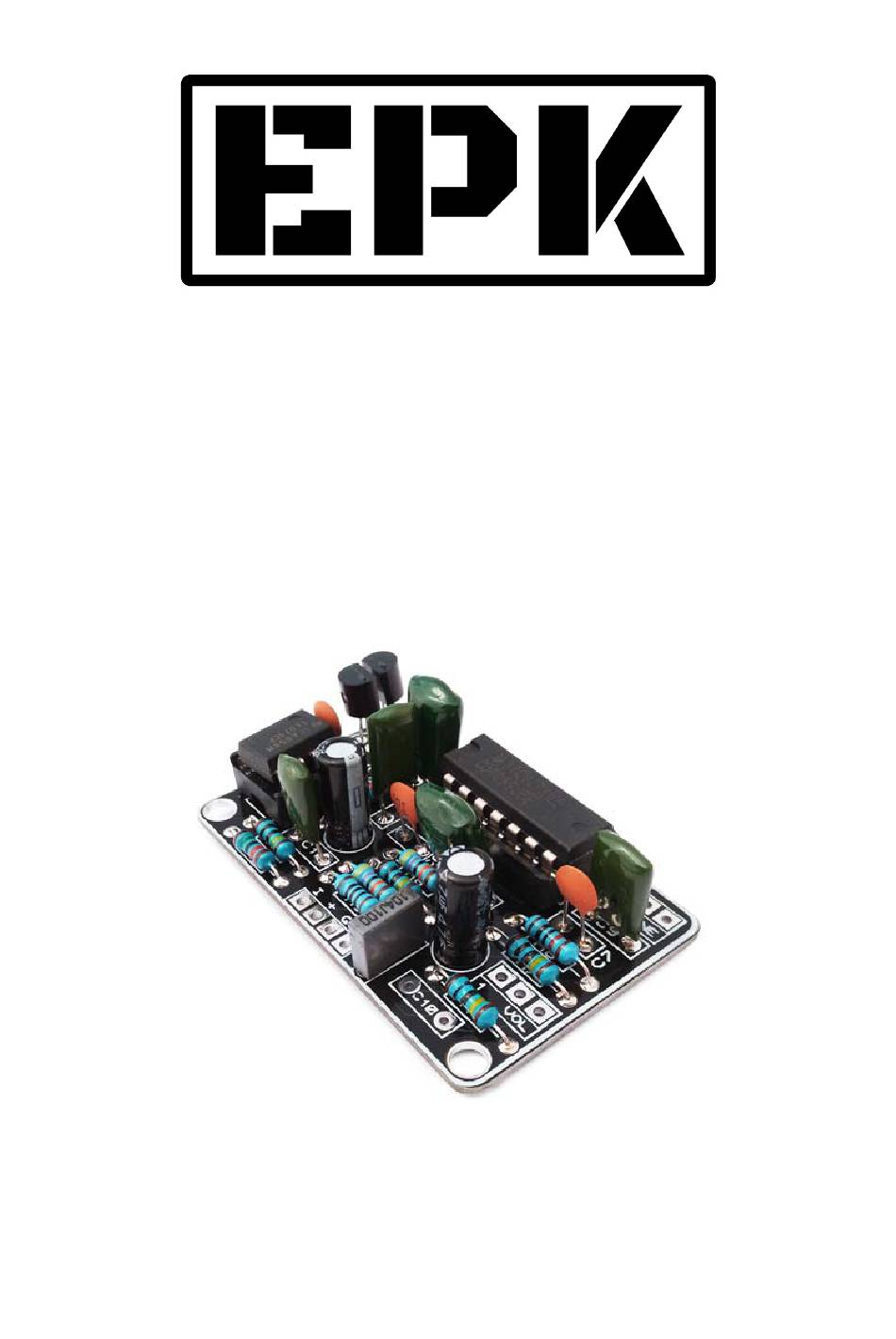

- Page 1 Stoning Distortion Kit Building Manual...
- Page 2 Besides, the Tone knob in the Stoning Distortion works nicely and lets you shape your sound without any other knob or equalizer. Get our Stoning Distortion kit and build your own Stone Grey Distortion, the ultimate distortion pedal!
- Page 3 BOM (1/2) Resistors (11) Capacitors (12) R1, R7, R10, R11 2.2n C2, C6, C7 100p (ceramic) R3, R6 470k C3, C5 4.7k 200k 4.7u (electrolytic) 100u (electrolytic) 100n...
- Page 4 BOM (2/2) Diodes, Transistors and ICs Generic Parts and Potentiometers TL071 Battery clip 4069 DC Jack Q1, Q2 J113 RLED 1k LED resistor LED Bezel 3PDT IN, OUT 6.35mm Jacks 1M Logarithmic (A) Potentiometer Dist 50k Logarithmic (A) Potentiometer Tone, Vol...
-
Page 5: Component Placement
Component Placement... -
Page 6: Board Layouts
Board Layouts 3PDT PCB Effect PCB... - Page 7 Building Tips 1- Pay attention to the orientation of the 3PDT! In the following picture you can see how the 3PDT pins should be positioned (inserting the pins in the holes can be a bit tight to avoid movement while soldering): 2- For a proper soldering you just have to apply the right amount of solder wire.
- Page 8 Building Tips 5- Pay attention to the parts that have a polarity and make sure they are connected as in the component placement picture: - ICs (they have a small dot or indication that must fit the indication in the board - Electrolytic capacitors (longer pin is connected to the “+”...
- Page 9 Building Tips 6- With the kit we include plastic PCB supports with an adhesive bottom. You can use them to anchor the PCB to your enclosure for a better stability. Just insert the PCB support tip into the 3.5mm holes and remove the adhesive protective film.
- Page 10 Schematic...
