Summary of Contents for EPK Phase 45

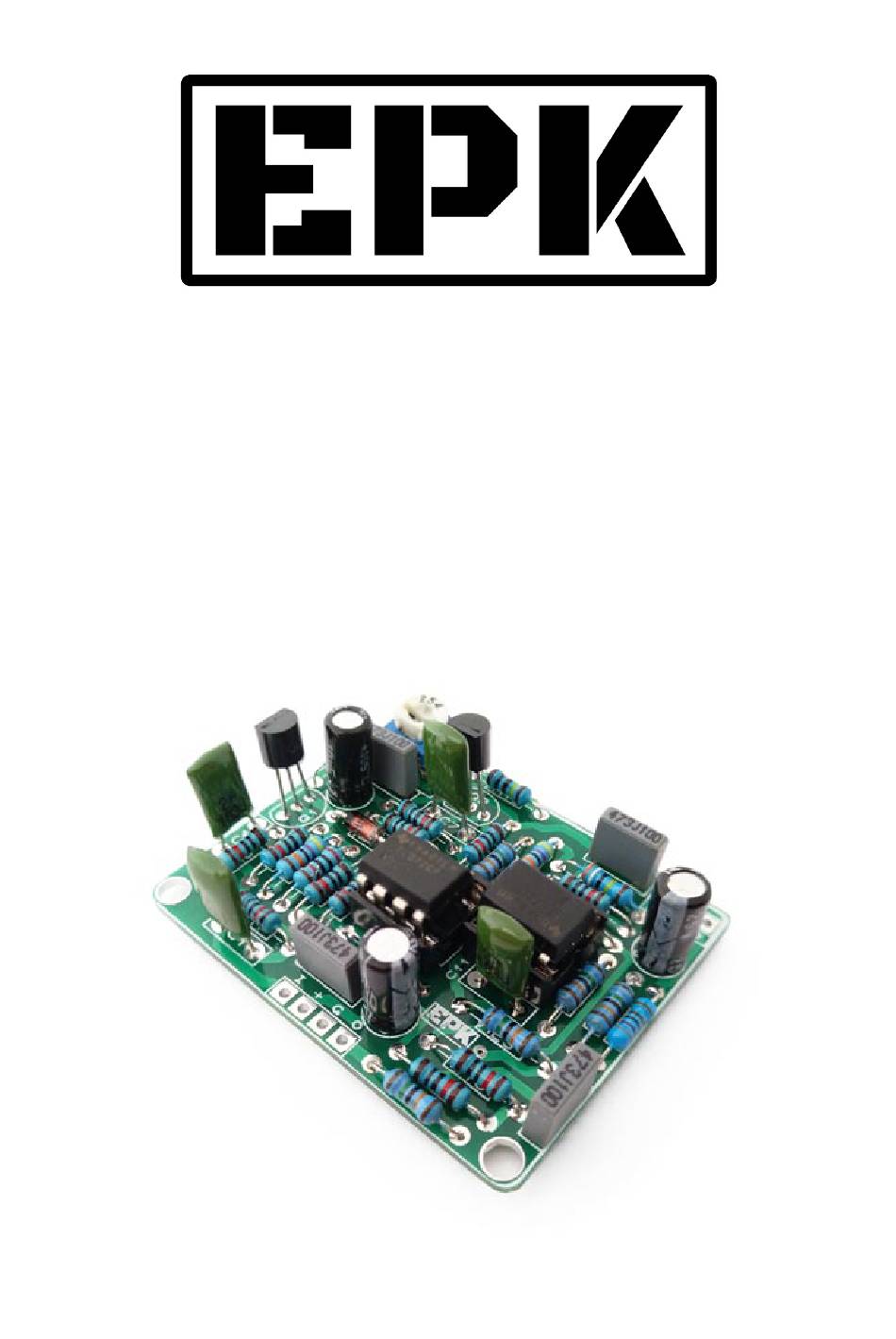

- Page 1 Phase 45 Kit Building Manual...

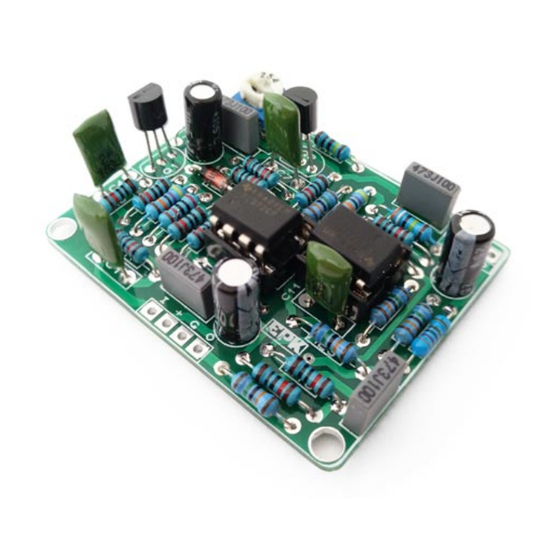

- Page 2 Effect Pedal Kits: Phase 45 The Phase 45 kit lets you build the 2-stage version of the Phase 90, and is great to get a warm phase shifter sound. While its big brother has a deeper sweep, the Phase 45 more subtle and organic tone works wonders for creating a light psychedelic atmosphere.
- Page 3 BOM (1/2) Resistors (25) Capacitors (11) R1, R3, R5, R6, R7, R8, R9, R11, R12, R14, R15, R16, R17 C1, C4, C7, C11 R2, R10, R13 470k C2, C9, C10 10u (electrolytic) C3, C5, C6, C8 R18, R21, R23, R24, R25 150k 3.9M 7.5k...
- Page 4 BOM (2/2) Diodes, Transistors and ICs Generic Parts and Potentiometers U1, U2 TL072 Battery clip Q1, Q2 J113 DC Jack 250k Trimmer RLED 1k LED resistor 4.7V Zener diode LED Bezel 3PDT IN, OUT 6.35mm Jacks 500k Logarithmic (A) Potentiometer Speed...
-
Page 5: Component Placement
Component Placement... -
Page 6: Board Layouts
Board Layouts 3PDT PCB Effect PCB... - Page 7 Building Tips 1- Pay attention to the orientation of the 3PDT! In the following picture you can see how the 3PDT pins should be positioned (inserting the pins in the holes can be a bit tight to avoid movement while soldering): 2- For a proper soldering you just have to apply the right amount of solder wire.
- Page 8 Building Tips 5- Pay attention to the parts that have a polarity and make sure they are connected as in the component placement picture: - ICs (they have a small dot or indication that must fit the indication in the board - Electrolytic capacitors (longer pin is connected to the “+”...
- Page 9 Schematic...
