Summary of Contents for Green-Go Dante Interface X

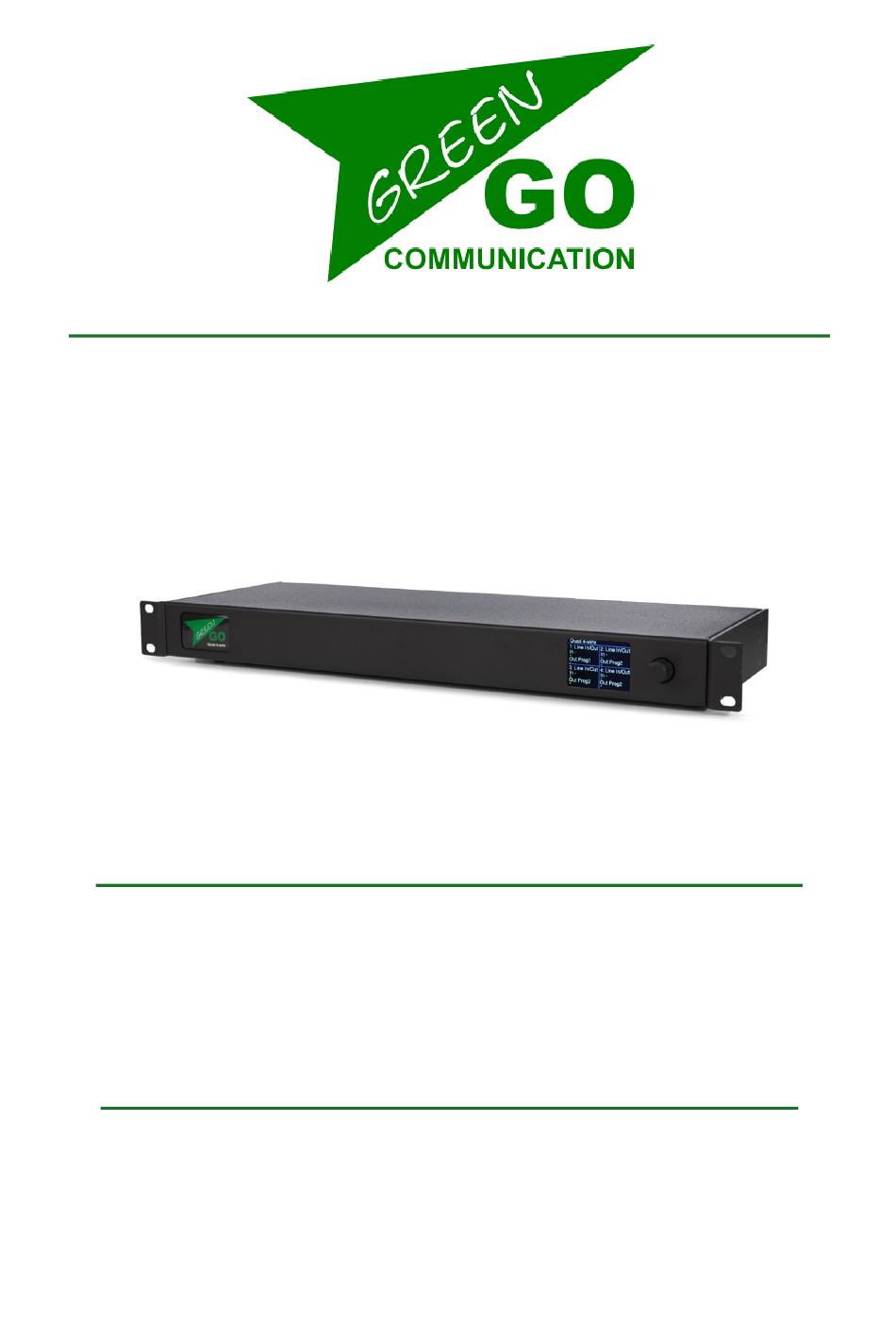

- Page 1 Dante Interface X Quick Start Guide...
- Page 2 Dante Interface X Quick Start Guide The Green-GO Dante Interface X allows you to interface with external Dante Audio systems. The Dante interface will directly convert digital audio streams from Dante or AES67 to Green-GO and vice-versa, without the conversion losses that occur during analog to digital...
-
Page 3: Setup Menu Navigation
Setup menu navigation Pressing the encoder will open the setup menu of the Green-GO Dante Interface X. Once in the menu, the encoder will allow you to navigate through the menu and set a parameter. Pushing the encoder will confirm your selection. - Page 4 Set up a Dante connection as General-purpose line In/Out Set up a Dante connection as General-purpose Line in/out. This is a simple Line in and out to feed Dante audio streams into and out of the Green-GO network. for example, Program audio or an Announcement system.
- Page 5 à 7kHz bandwidth is used for this input Enhanced à 14kHz bandwidth is used for this input An à Assign group to be handled as Announce Channel Em à Assign group to be handled as Emergency Channel __________________________________________________________________________________ Green-GO Dante Interface X – Quick Start Guide...
- Page 6 Mode à Select Normal or Local IFB. Normal mode will allow you to select. one of the available Groups in the Green-GO network on the Program audio channel. Local IFB will send the input of the Dante connection to the Program audio of this port. This audio stream is not Available on the Green-GO network.
- Page 7 Set up the connection type of a Dante connection Connection à Set up the connection for this Dante connection Local connection à Set up this port as a normal Green-Go device in a local network. Remote connection à Set up this port as the passive side of a bridge connection.
- Page 8 Generic device settings Configuration cloning All devices on the local Green-GO network need to have the same configuration to be able to communicate with each other. Clone Config à Clone a configuration file from the network Configuration File A à Load configuration file A Configuration File B à...
- Page 9 Device information Info à Shows general information about the Dante Interface X Config : à The current config of the Dante Interface X SN: xxx à Serial number of the Dante Interface X Dante interface 4a61 à Firmware information Dante interface 4a61 à Firmware version Nov 16 2018 à...
-
Page 10: Technical Specifications
In all of the previous conditions, disconnect the main plug immediately and call your distributor or technical support! WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE __________________________________________________________________________________ Green-GO Dante Interface X – Quick Start Guide... - Page 11 All signal input- and output connections must be shielded and the shielding must be connected to the ground of the corresponding plug. Gemert, 21 mei 2019 ing. Joost van Eenbergen __________________________________________________________________________________ Green-GO Dante Interface X – Quick Start Guide...
