Summary of Contents for Green-Go GGO-SI2WR

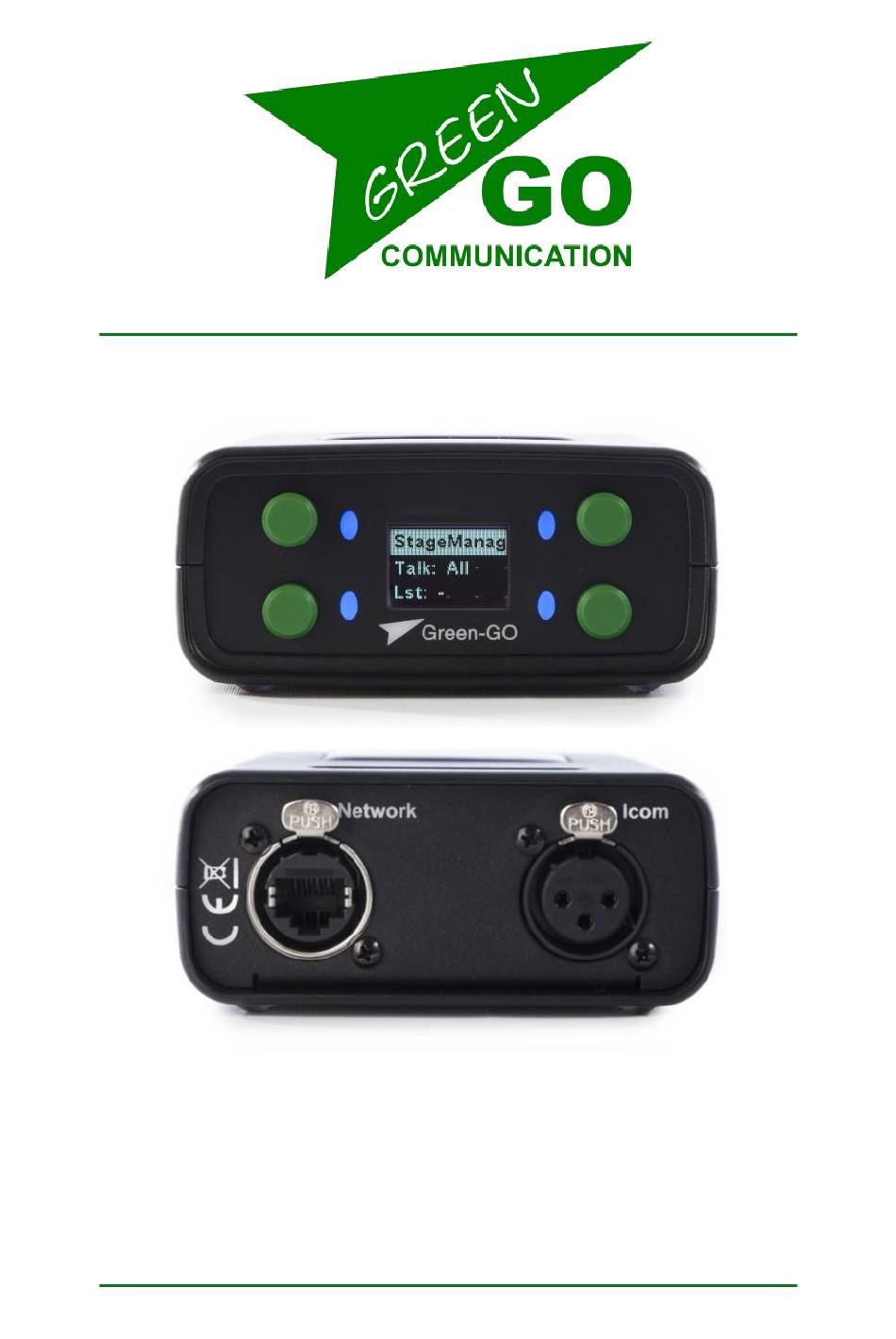

- Page 1 Slim Audio Interface 2-Wire Quick Start Guide...
- Page 2 __________________________________________________________________________________ Green-GO Slim Audio Interface 2-Wire – Quick Start Guide...
- Page 3 Slim Audio Interface 2-Wire Quick Start Guide The Green-GO Slim Audio 2-Wire Interface enables you to integrate the basic analog party-line systems into the GreenGO network, complete with announcements and program audio. Features • Assign users or groups to up to 32 available channels •...
-
Page 4: Setup Menu Navigation
Pressing the two buttons on the left-hand side of the screen simultaneously will open the setup menu of the Green-GO Slim Audio 2-Wire Interface. Once in the menu, the button on the top left will act as the selection and confirmation button. The button on the bottom left will take you one step back out of the currently selected option or menu. - Page 5 Call Receive Enabled / Disabled → Enables or disables the ability to receive calls on the channel An → Assign group to be handled as Announce Channel Em → Assign group to be handled as Emergency Channel __________________________________________________________________________________ Green-GO Slim Audio Interface 2-Wire – Quick Start Guide...
-
Page 6: General Options
/ Range: 0dB to -24db, MUTE Direct Volume → Set volume for direct channels / Range: 12db to -36dB, MUTE Direct Priority → Set priority for direct channels: Low / Normal / High __________________________________________________________________________________ Green-GO Slim Audio Interface 2-Wire – Quick Start Guide... -
Page 7: User Selection
Latency Connection → Use latency connection Audio Normal / Compressed → Set the Forward Error Correction type used --- / On / Compressed Latency → Save the current Latency Connection setup Save __________________________________________________________________________________ Green-GO Slim Audio Interface 2-Wire – Quick Start Guide... -
Page 8: Configuration Cloning
Scr bright → Set the brightness of the screen / Range: 0 – 15 LED bright → Set the brightness of the LEDs / Range: Off – 1 – 2 – 3 – 4 – 5 - 6 – Max __________________________________________________________________________________ Green-GO Slim Audio Interface 2-Wire – Quick Start Guide... -
Page 9: Device Information
• Make sure that Auto Talk is enabled on the channel to send received audio (normally channel 1) NOTE: If you are experiencing an echo on the Green-GO system, it might be due to the Slim Audio Interface 2-Wire unit not correctly canceling out the audio sent onto the 2-Wire/party line and unintentionally sending it back into the system. -
Page 10: Technical Specifications
In all of the previous conditions, disconnect the main plug immediately and call your distributor or technical support! WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE __________________________________________________________________________________ Green-GO Slim Audio Interface 2-Wire – Quick Start Guide... -
Page 11: Declaration Of Conformity
All signal input- and output connections must be shielded and the shielding must be connected to the ground of the corresponding plug. Gemert, February 16, 2018 ing. Joost van Eenbergen __________________________________________________________________________________ Green-GO Slim Audio Interface 2-Wire – Quick Start Guide...
