Quick Start

Thank you for purchasing the MSI
MPG Z390 GAMING EDGE AC
motherboard. This
®
Quick Start section provides demonstration diagrams about how to install your
computer. Some of the installations also provide video demonstrations. Please link to
the URL to watch it with the web browser on your phone or tablet. You may have even
link to the URL by scanning the QR code.

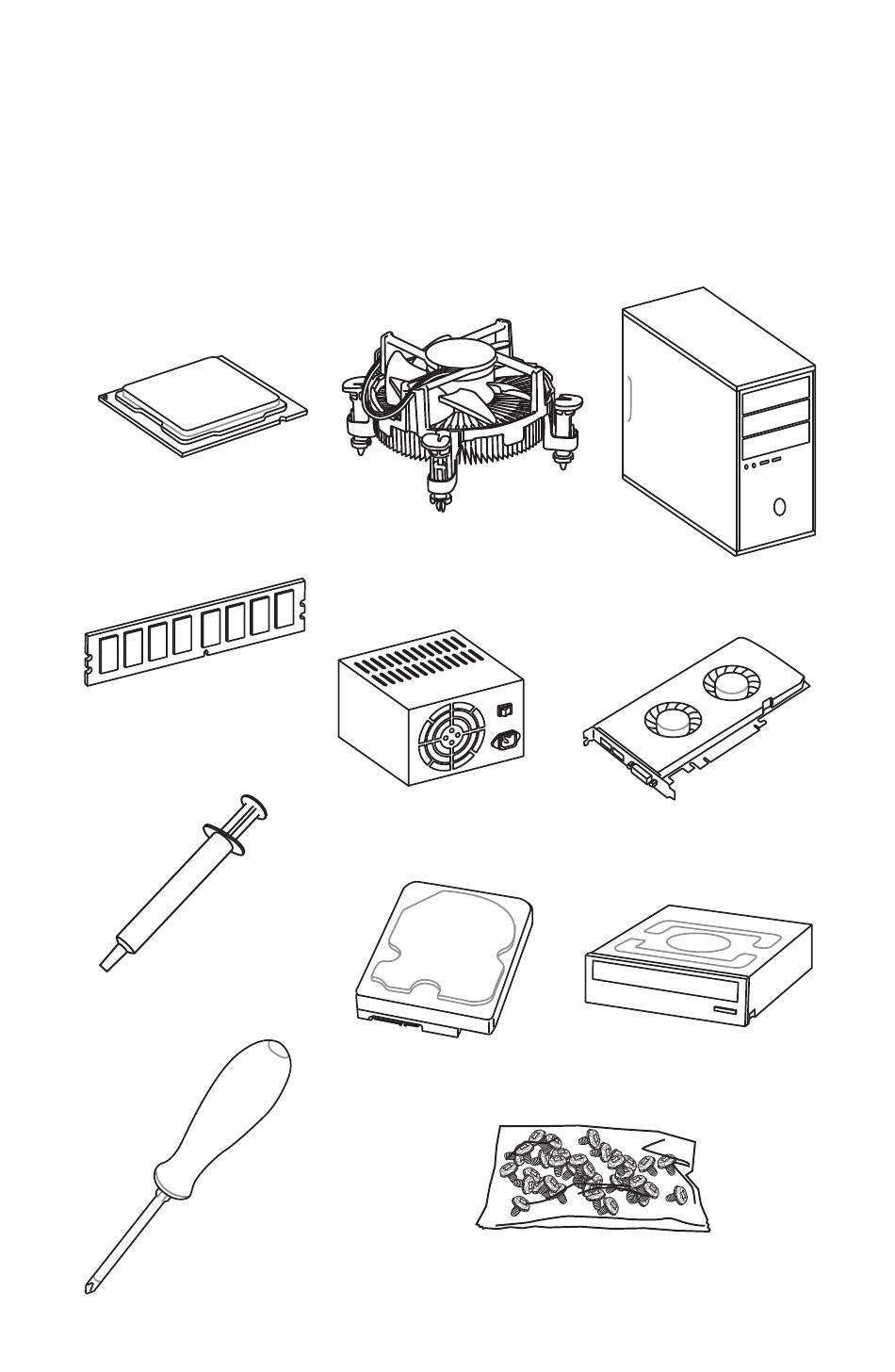

Preparing Tools and Components

Intel
LGA 1151 CPU
®
CPU Fan
Chassis
DDR4 Memory
Power Supply Unit
Graphics Card
Thermal Paste
SATA DVD Drive
SATA Hard Disk Drive
A Package of Screws
Phillips Screwdriver
1
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPG Z390 GAMING EDGE AC and is the answer not in the manual?

Questions and answers

Related Manuals for MSI MPG Z390 GAMING EDGE AC

Summary of Contents for MSI MPG Z390 GAMING EDGE AC

  • Page 1: Quick Start

    Quick Start Thank you for purchasing the MSI MPG Z390 GAMING EDGE AC motherboard. This ® Quick Start section provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code.

  • Page 2: Installing A Processor

    Installing a Processor https://youtu.be/4ce91YC3Oww Quick Start...

  • Page 3: Installing Ddr4 Memory

    Installing DDR4 memory http://youtu.be/T03aDrJPyQs DIMMB2 DIMMB2 DIMMB1 DIMMA2 DIMMA2 DIMMA2 DIMMA1 Quick Start...

  • Page 4: Connecting The Front Panel Header

    Connecting the Front Panel Header http://youtu.be/DPELIdVNZUI Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch Reset Switch Power Switch JFP1 Reserved No Pin HDD LED - HDD LED HDD LED +...

  • Page 5: Installing The Motherboard

    Installing the Motherboard Quick Start...

  • Page 6: Installing Sata Drives

    Installing SATA Drives http://youtu.be/RZsMpqxythc Quick Start...

  • Page 7: Installing A Graphics Card

    Installing a Graphics Card http://youtu.be/mG0GZpr9w_A Quick Start...

  • Page 8: Connecting Peripheral Devices

    Connecting Peripheral Devices Quick Start...

  • Page 9: Connecting The Power Connectors

    Connecting the Power Connectors http://youtu.be/gkDYyR_83I4 ATX_PWR1 CPU_PWR1 CPU_PWR2 Quick Start...

  • Page 10: Power On

    Power On Quick Start...

  • Page 11: Table Of Contents

    Contents Quick Start ......................1 Preparing Tools and Components ................1 Installing a Processor ..................... 2 Installing DDR4 memory ..................3 Connecting the Front Panel Header ............... 4 Installing the Motherboard ..................5 Installing SATA Drives..................... 6 Installing a Graphics Card ..................7 Connecting Peripheral Devices ................
  • Page 12 JRGB1~2, JRAINBOW1: RGB LED connectors ............. 40 JCORSAIR1: CORSAIR Connector ................ 41 Onboard LEDs ...................... 42 EZ Debug LED ....................... 42 DIMM LEDs ......................42 XMP LED ....................... 42 JPWRLED1: LED power input ................42 Installing OS, Drivers & Utilities ................. 43 Installing Windows 10 ..................
  • Page 13 Rebuilding RAID Array ..................78 Installing RAID Driver ................... 79 Installing Intel Rapid Storage Technology Software .......... 79 ® Intel Optane™ Memory Configuration .............. 80 ® System Requirements ..................80 Installing the Intel Optane™ memory ..............80 ® Removing the Intel Optane™...

  • Page 14: Specifications

    * M.2 slots and SATA ports share the bandwidth. Please refer to page 32 for details. ** Before using Intel Optane™ memory modules, please ensure that you have ® updated the drivers and BIOS to the latest version from MSI website. Continued on next page Specifications...
  • Page 15 Continued from previous page Intel Z390 Chipset ® y Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA RAID storage devices y Supports RAID 0 and RAID 1 for M.2 PCIe storage devices 1x Intel I219-V Gigabit LAN controller Intel Wireless-AC 9462 card ®...
  • Page 16 Continued from previous page y 1x 24-pin ATX main power connector y 1x 8-pin ATX 12V power connector y 1x 4-pin ATX 12V power connector y 6x SATA 6Gb/s connectors y 1x USB 3.1 Gen2 Type-C port y 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) y 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • Page 17 Drivers y DRAGON CENTER y MYSTIC LIGHT y Nahimic Audio Software y Open Broadcaster Software (OBS) y CPU-Z MSI GAMING y Intel Extreme Tuning Utility ® y Google Chrome™, Google Toolbar, Google Drive y Norton™ Internet Security Solution y GAME OPTIMIZATION...
  • Page 18 Continued from previous page y LED ƒ Mystic Light ƒ Mystic Light Extension (RGB) ƒ Mystic Light Extension (RAINBOW) ƒ Mystic Light Extension (CORSAIR) ƒ Mystic light SYNC ƒ EZ DEBUG LED y Protection ƒ PCI-E Steel Armor y Performance ƒ...

  • Page 19: Jcorsair1 Connector Specification

    HD120 RGB Fan SP120 RGB Fan LL120 RGB Fan Package contents Please check the contents of your motherboard package. It should contain: Motherboard MPG Z390 GAMING EDGE AC SATA 6Gb/s Cables Cable LED Cable Antenna Set SLI HB BRIDGE M M.2 Screw...

  • Page 20: Block Diagram

    Block Diagram 2 Channel DDR4 Memory Processor Switch PCI Express Bus DMI 3.0 4x SATA 6Gb/s 1x M.2 PCIe x1 slot PCIe x1 slot 2x SATA 6Gb/s Switch PCIe x1 slot 1x M.2 6x USB 3.1 Gen1 Intel I219 6x USB 2.0 3x USB 3.1 Gen2 NV6797 Realtek...

  • Page 21: Rear I/O Panel

    Rear I/O Panel Wi-Fi Antenna connectors Audio Ports PS/2 USB 3.1 Gen2 DisplayPort USB 3.1 Gen1 Optical S/PDIF-Out USB 2.0 USB 3.1 Gen2 Type-C LAN Port LED Status Table Link/ Activity LED Speed LED Status Description Status Description No link 10 Mbps connection Yellow Linked...

  • Page 22: Realtek Audio Console

    Realtek Audio Console After Realtek Audio Console is installed. You can use it to change sound settings to get better sound experience. Application Enhancement Advanced Settings Device Selection Main Volume Connector Settings Jack Status y Device Selection - allows you to select a audio output source to change the related options.
  • Page 23 Audio jacks to headphone and microphone diagram Audio jacks to stereo speakers diagram AUDIO INPUT Audio jacks to 7.1-channel speakers diagram AUDIO INPUT Rear Front Side Center/ Subwoofer Rear I/O Panel...
  • Page 24 Installing antennas 1. Screw the antennas tight to the antenna connectors as shown below. 2. Orient the antennas. Rear I/O Panel...

  • Page 25: Overview Of Components

    Overview of Components DIMMA1 DIMMA2 DIMMB1 CPU_PWR2 DIMMB2 CPU Socket CPU_PWR1 CPU_FAN1 JRGB2 JCORSAIR1 PUMP_FAN1 SYS_FAN1 ATX_PWR1 JUSB1 SYS_FAN2 JUSBC1 M2_1 PCI_E1 JUSB2 PCI_E2 JBAT1 SATA▼1▲2 PCI_E3 JTPM1 SATA▼3▲4 PCI_E4 SATA▼5▲6 PCI_E5 M2_2 PCI_E6 JFP2 JAUD1 JFP1 JRGB1 JTBT1 JUSB4 JRAINBOW1 JUSB3 SYS_FAN3...

  • Page 26: Component Contents

    Component Contents Port Name Port Type Page CPU_FAN1, PUMP_ Fan Connectors FAN1, SYS_FAN1~5 CPU_PWR1~2, ATX_ Power Connectors PWR1 CPU Socket LGA1151 CPU Socket DIMMA1/A2/B1/B2 DIMM Slots JAUD1 Front Audio Connector JCI1 Chassis Intrusion Connector JCOM1 Serial Port Connector JCORSAIR1 CORSAIR Connector JFP1, JFP2 Front Panel Connectors JPWRLED1...

  • Page 27: Cpu Socket

    Always unplug the power cord from the power outlet before installing or removing the CPU. Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket.

  • Page 28: Dimm Slots

    DIMM Slots DIMMA1 DIMMB1 Channel A Channel B DIMMA2 DIMMB2 Memory module installation recommendation DIMMB2 DIMMB2 DIMMB1 DIMMA2 DIMMA2 DIMMA2 DIMMA1 Important Always insert memory modules in the DIMMA2 slot first. Due to chipset resource usage, the available capacity of memory will be a little less than the amount of installed.

  • Page 29: Pci_E1~5: Pcie Expansion Slots

    Multiple graphics cards installation recommendation Important If you install a large and heavy graphics card, you need to use a tool such as MSI Gaming Series Graphics Card Bolster to support its weight to prevent deformation of the slot. Overview of Components...
  • Page 30 Important For a single PCIe x16 expansion card installation with optimum performance, using the PCI_E1 slot is recommended. When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card’...

  • Page 31: M2_1~2: M.2 Slots (Key M)

    M2_1~2: M.2 Slots (Key M) Important Intel RST only supports PCIe M.2 SSD with UEFI ROM. ® Intel Optane™ Memory Ready for all M.2 slots. ® M2_1 Video Demonstration M2_2 Watch the video to learn how to Install M.2 module. http://youtu.be/JCTFABytrYA Installing M.2 SSD 1.

  • Page 32: Sata1~6: Sata 6Gb/S Connectors

    SATA1~6: SATA 6Gb/s Connectors These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. SATA2 SATA1 SATA4 SATA3 SATA6 SATA5 Important Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.
  • Page 33 M.2 slots with examples of various combination possibilities 1xM.2 PCIe SSD + 6xSATA HDDs 1xM.2 SATA SSD + 5xSATA HDDs M.2 PCIe M.2 SATA 2xM.2 PCIe SSDs + 4xSATA HDDs 2xM.2 SATA SSDs + 4xSATA HDDs M.2 PCIe M.2 SATA M.2 PCIe M.2 SATA 1xM.2 PCIe SSD + 1xM.2 SATA SSD +...

  • Page 34: Cpu_Pwr1~2, Atx_Pwr1: Power Connectors

    CPU_PWR1~2, ATX_PWR1: Power Connectors These connectors allow you to connect an ATX power supply. CPU_PWR1 Ground +12V Ground +12V Ground +12V Ground +12V CPU_PWR2 Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground ATX_PWR1 Ground Ground PWR OK 5VSB...

  • Page 35: Jfp1, Jfp2: Front Panel Connectors

    JFP1, JFP2: Front Panel Connectors These connectors connect to the switches and LEDs on the front panel. Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch Reset Switch Power Switch...

  • Page 36: Jusb1~2: Usb 3.1 Gen1 Connectors

    Ground Ground No Pin Important Note that the VCC and Ground pins must be connected correctly to avoid possible damage. In order to recharge your iPad,iPhone and iPod through USB ports, please install MSI DRAGON CENTER utility. Overview of Components...

  • Page 37: Cpu_Fan1, Pump_Fan1, Sys_Fan1~5: Fan Connectors

    CPU_FAN1, PUMP_FAN1, SYS_FAN1~5: Fan Connectors Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. When you plug a 3-pin (Non-PWM) fan to a fan connector in PWM mode, the fan speed will always maintain at 100%, which might create a lot of noise.

  • Page 38: Jaud1: Front Audio Connector

    JAUD1: Front Audio Connector This connector allows you to connect audio jacks on the front panel. MIC L Ground MIC R Head Phone R MIC Detection SENSE_SEND No Pin Head Phone L Head Phone Detection JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis intrusion event...

  • Page 39: Jtpm1: Tpm Module Connector

    JTPM1: TPM Module Connector This connector is for TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages. LPC Clock 3V Standby power LPC Reset 3.3V Power LPC address & data pin0 Serial IRQ LPC address &...

  • Page 40: Jrgb1~2, Jrainbow1: Rgb Led Connectors

    RGB LED strips (5V/Data/Ground) with the maximum power rating of 3A (5V). Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. Please use MSI’ s software to control the extended LED strip. Overview of Components...

  • Page 41: Jcorsair1: Corsair Connector

    The JCORSAIR1 connector allows you to connect the CORSAIR Individually Addressable RGB LED strips 5V or CORSAIR RGB LED fans with the CORSAIR fan hub. Once all items are connected properly, you can control the CORSAIR RGB LED strips and fans with MSI's software. JCORSAIR1 Data...

  • Page 42: Onboard Leds

    Onboard LEDs EZ Debug LED These LEDs indicate the debug status of the motherboard. CPU - indicates CPU is not detected or fail. DRAM - indicates DRAM is not detected or fail. VGA - indicates GPU is not detected or fail. BOOT - indicates the booting device is not detected or fail.

  • Page 43: Installing Os, Drivers & Utilities

    Installing OS, Drivers & Utilities Please download and update the latest utilities and drivers at www.msi.com ® Installing Windows 1. Power on the computer. 2. Insert the Windows ® 10 installation disc/USB into your computer. 3. Press the Restart button on the computer case.

  • Page 44: Mystic Light

    MYSTIC LIGHT MYSTIC LIGHT is an application that allows you to control LED light effects of MSI & partner products. For some earlier products, you can go to product download page to download the applicable LED control software. Device LED effect control screen When you start up MYSTIC LIGHT, there will be a list of auto-detected devices on the top of the screen.
  • Page 45 y LED area selector - allows you to select the LED area on the device. The LED effects vary depending on your LED area selection. y Effect speed level - allows you to adjust the LED light effect switching speed. Please note that this function will only be available if your device supports it.
  • Page 46 ƒ Synchronize all - There is a quick button on the upper right that allows you to synchronize all your devices with one click. Click the All Sync button, then the chain icons under all sync devices will be changed in red-chain icons and the Profile control panel will appear on the left.

  • Page 47: Nahimic 3

    Sound Tracker. Installation and Update Nahimic 3 is included in the audio driver. If you need to install it or update it, please use the Driver Disc with your motherboard or download the driver from MSI’ s official website. Audio Tab From this tab, you can access all of Nahimic 3’...

  • Page 48: Microphone Tab

    ƒ Voices - it boosts (or removes) the speech in movies, video games and incoming communication from -12 to +12 dB. ƒ Bass - increases (or decreases) the energy in low frequencies from -12 to +12 dB. ƒ Treble - increases (or decreases) the energy in high frequencies from -12 to +12 y Reset Button - restores the current profile to its default values.

  • Page 49: Sound Tracker Tab

    Sound Tracker Tab The Sound Tracker is an FPS oriented feature that provides a visual indication localizing the sources of the sounds while in a game. These are represented by dynamic segments pointing the direction of the sounds: the more opaque they are, the stronger the sounds are.

  • Page 50: Bios Setup

    Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot Menu message appears on the screen during the boot process. y In MSI Dragon Center application, click on GO2BIOS button and choose OK. The system will reboot and enter BIOS setup directly.

  • Page 51: Resetting Bios

    Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: 1. Insert the USB flash drive that contains the update file into the USB port.

  • Page 52: Ez Mode

    EZ Mode At EZ mode, it provides the basic system information and allows you to configure the basic setting. To configure the advanced BIOS settings, please enter the Advanced Mode by pressing the Setup Mode switch or F7 function key. XMP switch Setup Mode switch Screenshot...
  • Page 53 y Information display - click on the CPU, Memory, Storage, Fan Info and Help buttons on left side to display related information. y Function buttons - enable or disable the LAN Option ROM, M.2/ Optane Genie, HD audio controller, AHCI/ RAID, CPU Fan Fail Warning Control and BIOS Log Review by clicking on their respective button.

  • Page 54: Advanced Mode

    Advanced Mode Press Setup Mode switch or F7 function key can switch between EZ Mode and Advanced Mode in BIOS setup. XMP switch Setup Mode switch Screenshot Search Language System information GAME BOOST switch Boot device priority bar BIOS menu BIOS menu selection selection...

  • Page 55: Settings

    SETTINGS System Status f System Date Sets the system date. Use tab key to switch between date elements. The format is <day> <month> <date> <year>. <day> Day of the week, from Sun to Sat, determined by BIOS. Read-only. <month> The month from Jan. through Dec. <date>...
  • Page 56 fPEG X - Max Link Speed [Auto] Sets PCI Express protocol of PCIe x16 slots for matching different installed devices. [Auto] This item will be configured automatically by BIOS. [Gen1] Enables PCIe Gen1 support only. [Gen2] Enables PCIe Gen2 support only. [Gen3] Enables PCIe Gen3 support only.
  • Page 57 fIpv4 PXE Support [Enabled] When Enabled, the system UEFI network stack will support Ipv4 protocol. This item will appear when Network Stack is enabled. [Enabled] Enables the Ipv4 PXE boot support. [Disabled] Disables the Ipv4 PXE boot support. fIpv6 PXE Support [Enabled] When Enabled, the system UEFI network stack will support Ipv6 protocol.
  • Page 58 fIGD Multi-Monitor [Disabled] Enables or disables the multi-screen output from integrated graphics and external graphics card. This item appears when Initiate Graphic Adapter set to PEG. [Enabled] Enables multi-screen function for both integrated and external graphics cards. [Disabled] Disables this function. f USB Configuration Sets the onboard USB controller and device function.
  • Page 59 Disables this function. fMSI Fast Boot [Disabled] MSI Fast Boot is the fastest way to boot the system. It will disable more devices to speed up system boot time which is faster than the boot time of Fast Boot. [Enabled] Enables the MSI Fast Boot function to speed up booting time.
  • Page 60 fSecure Boot Sets the Windows secure boot to prevent the unauthorized accessing. Press Enter to enter the sub-menu. This sub-menu will appear when Windows 10 WHQL Support is enabled. fSecure Boot Support [Disabled] Enables or disables secure boot support. [Enabled] Enables the secure boot function and allow you to set the secure boot settings.
  • Page 61 fResume By Onboard Intel LAN [Disabled] Enables or disables the system wake up by Onboard Intel LAN. [Enabled] Enables the system to be awakened from the power saving modes when activity or input signal of Intel LAN device is detected. [Disabled] Disables this function.

  • Page 62: Boot

    Boot Sets the sequence of system boot devices. f Full Screen Logo Display [Enabled] Enables or disables to show the full screen logo while system POST. [Enabled] Shows the logo in full screen. [Disabled] Shows the POST messages. f GO2BIOS [Disabled] Allows system to enter BIOS setup directly by pressing the Power button for 4 sec pon bootup.

  • Page 63: Security

    Security f Administrator Password Sets administrator password for system security. User has full rights to change the BIOS items with administrator password. After setting the administrator password, the state of this item will show “Installed” . f User Password Sets User Password for system security. User has limited rights to change the BIOS items with user password.

  • Page 64: Save & Exit

    Save & Exit f Discard Changes and Exit Exit BIOS setup without saving any change. f Save Changes and Reboot Save all changes and reboot the system. f Save Changes Save current changes. f Discard Changes Discard all changes and restore to the previous values. f Restore Defaults Restore or load all default values.
  • Page 65 Important Overclocking your PC manually is only recommended for advanced users. Overclocking is not guaranteed, and if done improperly, it could void your warranty or severely damage your hardware. If you are unfamiliar with overclocking, we advise you to use GAME BOOST function for easy overclocking.
  • Page 66 f Adjusted GT Frequency Shows the adjusted integrated graphics frequency. Read-only. f Misc Setting* Press Enter, + or - key to open or close the following 3 items related to CPU features. fEIST [Enabled]* Enables or disables the Enhanced Intel SpeedStep Technology.
  • Page 67 f Advanced DRAM Configuration Press Enter to enter the sub-menu. User can set the memory timing for each/ all memory channel. The system may become un-stable or un-bootable after changing memory timing. If it occurs, please clear the CMOS data and restore the default settings.
  • Page 68 fDIMMA1/A2/B1/B2 Memory SPD Press Enter to enter the sub-menu. The sub-menu displays the information of installed memory. Read only. f CPU Features Press Enter to enter the sub-menu. fHyper-Threading [Enabled] Intel Hyper-Threading technology treats the multi cores inside the processor as multi logical processors that can execute instructions simultaneously.
  • Page 69 fCPU AES Instructions [Enabled] Enables or disables the CPU AES (Advanced Encryption Standard-New Instructions) support. This item appears when a CPU supports this function. fIntel Adaptive Thermal Monitor [Enabled] Enables or disables the Intel adaptive thermal monitor function to protect the CPU from overheating.
  • Page 70 fLong Duration Power Limit (W) [Auto] Sets the long duration TDP power limit for CPU in Turbo Boost mode. fLong Duration Maintained (s) [Auto] Sets the maintaining time for Long duration power Limit(W). fShort Duration Power Limit (W) [Auto] Sets the short duration TDP power limit for CPU in Turbo Boost mode. fCPU Current Limit (A) [Auto] Sets maximum current limit of CPU package in Turbo Boost mode.

  • Page 71: M-Flash

    M-FLASH provides the way to update BIOS with a USB flash drive. Please down-load the latest BIOS file that matches your motherboard model from MSI website, save the BIOS file into your USB flash drive. And then follow the steps below to update BIOS.

  • Page 72: Oc Profile

    OC PROFILE f Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press <Enter> to enter the sub- menu. fSet Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Name the current overclocking profile. fSave Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Save the current overclocking profile.

  • Page 73: Hardware Monitor

    HARDWARE MONITOR Temperature & Speed Fan Manage Setting Buttons Temperature/ Voltage display f Temperature & Speed Shows the current CPU temperature, system temperature and fans' speeds. f Fan Manage ƒ PWM - allows you to select the PWM mode for fan operation. ƒ...

  • Page 74: Raid Configuration

    RAID Configuration Below are the different types of a RAID. RAID 0 breaks the data into blocks which are written to separate hard drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance. RAID 1 provides data redundancy by mirroring data between the hard drives and provides enhanced read performance.

  • Page 75: Creating Raid Volume

    6. Press F10 to save configuration and exit, and then reboot and press Delete key to enter BIOS Setup menu. 7. Go to BIOS > SETTING > Advanced > Intel(R) Rapid Storage Technology sub- menu. Creating RAID Volume 1. As previously mentioned, enable Intel(R) Rapid Storage Technology. 2.

  • Page 76: Removing A Raid Volume

    Removing a RAID Volume Here you can delete the RAID volume, but please be noted that all data on RAID drives will be lost. Important If your system currently boots to RAID and you delete the RAID volume, your system will become unbootable.

  • Page 77: Resetting Disks To Non-Raid

    Resetting Disks to Non-RAID 1. Go to BIOS > SETTING > Advanced > Intel(R) Rapid Storage Technology. 2. Select the RAID volume from the Intel(R) Rapid Storage Technology screen to enter the RAID VOLUME INFO screen. 3. Select the disk and press Enter to enter PHYSICAL DISK INFO screen. 4.

  • Page 78: Rebuilding Raid Array

    Rebuilding RAID Array A RAID 1, RAID 5 or RAID 10 volume is reported as Degraded when one of its hard drive members fails or is temporarily disconnected, and data mirroring is lost. As a result, the system can only utilize the remaining functional hard drive member. To re-establish data mirroring and restore data redundancy, refer to the procedure below that corresponds to the current situation.

  • Page 79: Installing Raid Driver

    2. When prompted, insert the USB flash drive with Intel RAID Drivers and then click Browse. ƒ To make an Intel RAID Drivers USB flash drive. Insert the MSI Driver Disc into the optical drive. Copy all the contents in \\Storage\Intel\16.x\f6flpy-x64 3.

  • Page 80: Intel ® Optane™ Memory Configuration

    ® ˜ Reboot to operating system. ˜ Insert the MSI Driver Disc into the optical drive. ˜ Click the Select to choose what happens with this disc pop-up notification, then select Run DVDSetup.exe to open the installer. If you turn off the AutoPlay feature from the Windows Control Panel, you can still manually execute the DVDSetup.exe from the root path of the MSI Driver Disc.
  • Page 81 5. Enable Intel Optane™ Memory. ® ˜ Run the Intel Rapid Storage Technology software. ® ˜ Click Intel Optane™ Memory tab and click Enable. ® ˜ Click Yes in the dialog. 6. Reboot System. WARNING Once you enable Intel Optane™ memory, in order to prevent seriously damage your ®...

  • Page 82: Removing The Intel ® Optane™ Memory

    Removing the Intel Optane™ memory ® If you no longer want to use Intel Optane™ memory, you have to disable the Intel ® ® Optane™ memory before removing the Intel Optane™ memory module to avoid ® operating system damage. Please follow the steps below to remove the Intel Optane™...

  • Page 83: Troubleshooting

    Troubleshooting Before sending the motherboard for RMA Lost BIOS password repair, try to go over troubleshooting y Clear the CMOS, but that will cause guide first to see if your got similar you to lose all customized settings in the symptoms as mentioned below.
  • Page 84 The point of contact for regulatory matters is MSI, recycling and disposing of their end-of-life products. MSI-NL Eindhoven 5706 5692 ER Son. y Visit the MSI website and locate a nearby distributor B급 기기 (가정용 방송통신기자재) for further recycling information.
  • Page 85 MSI will comply with the product take entregar a una empresa autorizada para la recogida de back requirements at the end of life of MSI-branded estos residuos.
  • Page 86 及醫療用電波輻射性電機設備之干擾 。 saranno obbligati a ritirare ogni prodotto alla fine del suo ciclo di vita. MSI si adeguerà a tale Direttiva Products with radio functionality (EMF) ritirando tutti i prodotti marchiati MSI che sono stati This product incorporates a radio transmitting venduti all’interno dell’Unione Europea alla fine del...
  • Page 87 Micro-Star Int’ l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. MSI reserves the right to make changes to this document without prior notice. Technical Support...
