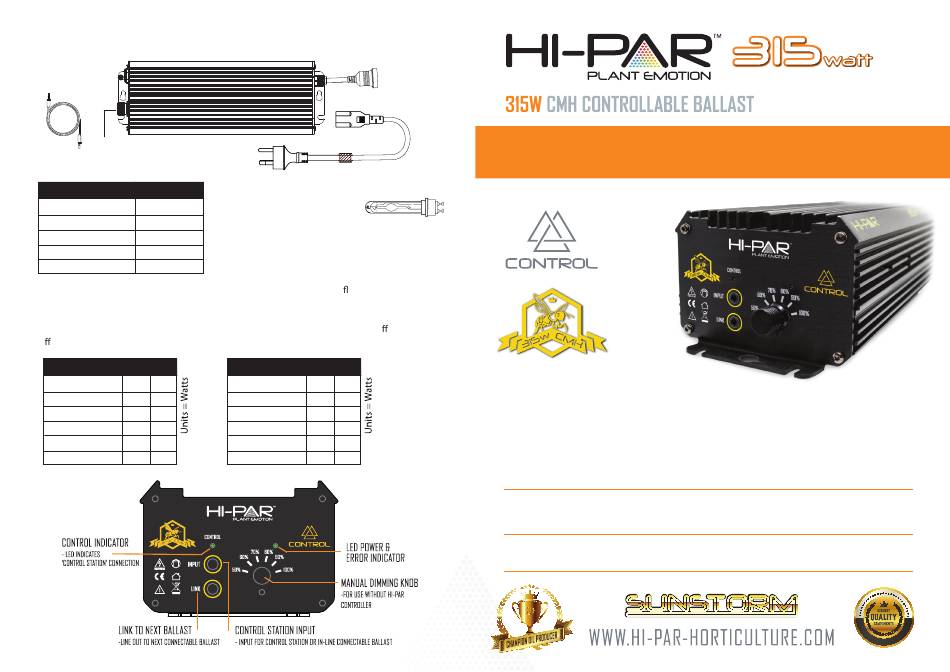

Hi-Par HP315E Control User Manual

Installation Directions
1. Digital Ballast
6. Rubber Feet
7. Dimming Knob
8. Connect
Link Cable
STATUS LED
Output lock down 1 Flash
Output errors 2 Flash
Low input voltage 3 Flash
Over temperature 4 Flash
High input 5 Flash
Note: When the controller is connected the CONTROL indicator LED ashes 2 times every 2
seconds - indicating controller is functioning correctly. However, if the Connect Link Cable is
removed during operation the ballast will shut down after 3 minutes. When operating
ballast without a HI-PAR Control Station the CONTROL indicator LED will be o . Turn power
o and on to reset the ballast when either connecting or disconnecting the Control Station.
MAINS POWER MIN MAX
100%
315 347
90% 284 317
80% 250 284
70% 217 250
60% 184 217
50% 150 184
5. OUTPUT to
CMH lamp
4. Power Input
3. Magnet Ring
BOX CONTENTS:
1 x 315w Digital Ballast
1 x Power Cord
CMH Lamps ONLY
1 x Connect Link Cable
4 x Rubber Feet
1 x User Manual
LAMP POWER MIN MAX
100%
296 328
90% 267 300
80% 235 269
70% 204 237
60% 172 206
50% 140 174
2. Power
USER MANUAL
Cord

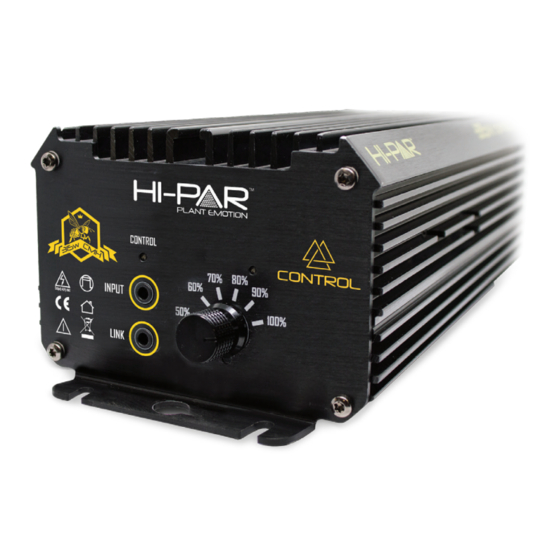

HP315E Control for CMH lamps
Data is based on operation of a standard CMH lamp.
Supply power is based on typical commercial 240V,50/60Hz.
Performance
Model
Model
Voltage
(V)
HP315E
240V
Control
Max Input THD Maximum Power
Power Current Factor
(W) (A) (COSθ)
347 <10% 1.6 .97
Working Ignitor
Voltage Voltage
(V) (kV)
216-264 4.0
