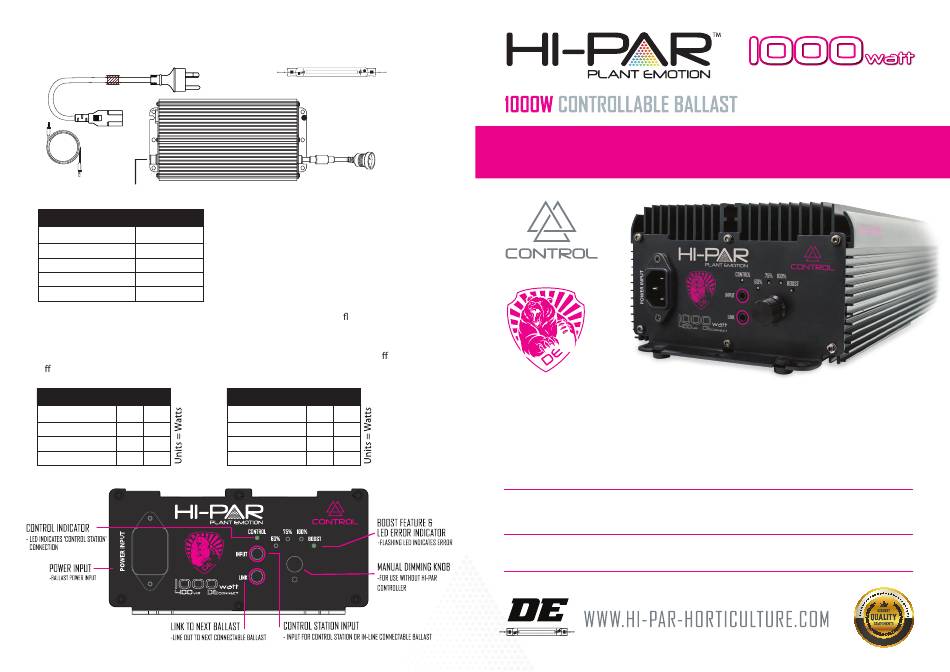

Hi-Par HP1000E Control User Manual

Installation Directions
2. Power Cord
3. Magnet Ring
1. Digital Ballast
4. Power Input
8. Connect
7. Dimming Knob
Link Cable
STATUS LED
Output lock down 1 Flash
Output errors 2 Flash
Low input voltage 3 Flash
Over temperature 4 Flash
High input 5 Flash
Note: When the controller is connected the CONTROL indicator LED ashes 2 times every 2
seconds - indicating controller is functioning correctly. However, if the Connect Link Cable is
removed during operation the ballast will shut down after 3 minutes. When operating
ballast without a HI-PAR Control Station the CONTROL indicator LED will be o . Turn power
o and on to reset the ballast when either connecting or disconnecting the Control Station.
MAINS POWER MIN MAX
BOOST 1116 1185
100% 1016 1085
75% 761 830
60%
602 671
DE lamps ONLY
5. Rubber Feet
6. OUTPUT to
HPS or MH lamp
BOX CONTENT:
1 x 1000w Digital Ballast
1 x Power Cord
1 x Connect Link Cable
4 x Rubber Feet
1 x User Manual
LAMP POWER MIN MAX
BOOST 1066 1135
100% 966 1035
75% 716 785
60%
566 635
USER MANUAL

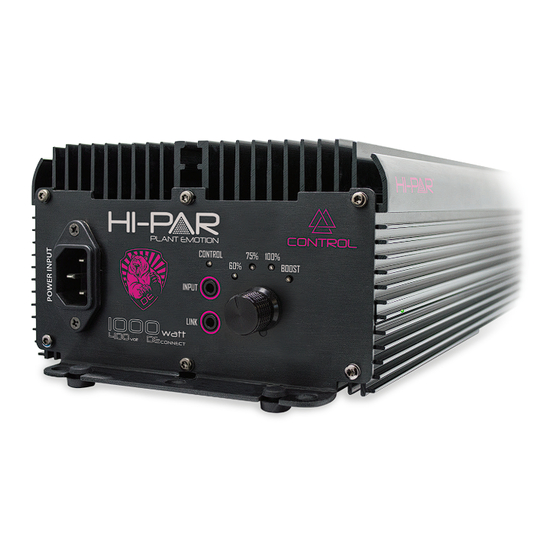

HP1000E Control for DE HPS and MH lamps
Data is based on operation of a standard double ended HPS/MH lamp.
Supply power is based on typical commercial 240V,50/60Hz.
Performance
Model Max Input THD
Model
Voltage Power
(V) (W)
HP1000E
240V 1185 <10%
Control
Maximum Power Working Ignitor
Current Factor Voltage Voltage
(A) (COSθ) (V) (kV)
5.0 .97 215-265 4.0
