OWNER'S MANUAL
A guide to your intelligent floor cleaner

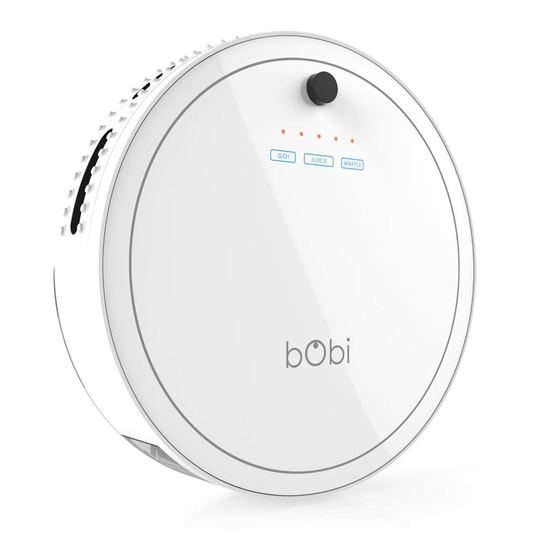

bObi Classic
Model SW603001

Advertisement

loading
Need help?

Need help?

Do you have a question about the Classic SW603001 and is the answer not in the manual?

Questions and answers

Summary of Contents for bObi Classic SW603001

  • Page 1 OWNER’S MANUAL A guide to your intelligent floor cleaner bObi Classic ™ Model SW603001...
  • Page 2 Congratulations! Congratulations on your new intelligent floor cleaner! bObi is now at your service. To see bObi at her best, please read the Quick Start Guide and this manual thoroughly. Welcome to the bObsweep family and happy cleaning! If you have any questions or concerns, feel free to contact our helpful team at support@bobsweep.com...
  • Page 3 Dustbin Home Checkup Test Auto-Resume Main Brushes Cleaning Behavior Side Brush UV Lamp Front Wheel Sensors Blindfold Stickers Storing Get bObi Charging Station Remote Control Warranty Information FAQs End User Ready to Clean License Agreement Install the Battery Placement Buttons...
  • Page 4 Furthermore, because bObi is capable of • To protect against electrical shock, do not immerse any part of bObi — with the exception of her and intended for autonomous movement and cleaning, her use poses the risk of collision with mopping cloth —...
  • Page 5 Box Contents bObi Classic Charging Station Spare Main Brush Charging Adapter Remote Control Screwdriver Spare Side Brush Cleaning Tool Pack of Screws Blindfold Stickers Mini-Mop Attachment 2 Microfiber Mopping Cloths Spare HEPA Filter Owner’s Manual, Quick Start Guide, Warranty Card...
  • Page 6 Anatomy Anatomy Top View Top View Bottom View Cover Main Brush Touchscreen Buttons Rubber Brush Transmitter Dustbin Charging Indicator Right Wheel Touch Sensors Left Wheel Wall Sensors Side Brush Charging Inlet Edge Sensors Power Switch Front Wheel UV Light Battery...
  • Page 7 Charging Station Touchscreen Buttons Remote Control bObi will clean on her default cleaning mode JUICE bObi will search for her charging station to refuel WAFFLE bObi will clean a localized mess...
  • Page 8 Get bObi Ready to Clean...
  • Page 9 After installing bObi’s battery, charge bObi for 8 hours before first use. indicate that she is charging. The other lights will disappear.
  • Page 10 Flip her power switch ON, and press the GO! button on her cover or remote. bObi will clean on her default setting. If bObi is left idle with her power switch ON, her screen will go blank and she will enter standby mode. To wake bObi, tap her touchscreen. To fully power off bObi, flip her power switch OFF.
  • Page 11 JUICE mode. WAFFLE WAFFLE can be used to clean up small spills of dry substances. bObi will clean an area of 10 square feet (1 square meter) for about 1 – 3 minutes before she stops and enters standby mode.
  • Page 12 Charging Station...
  • Page 13 When bObi detects her charging station, she will line herself up, dock, and begin to charge. If bObi has trouble finding her station, you likely need to sync the station. To sync the charging station: 2 ft (0.5 m)
  • Page 14 Manual Charging Using the charging station: • Place bObi on her charging station with the metal nodes on her front resting against the plates on her station. While still pressing the sync button, flip bObi will chirp twice to let you know the bObi’s power switch ON.
  • Page 15 Remote Control...
  • Page 16 • Sets the current time and weekday Each time you select an action on the remote, bObi will chirp once before SCH TIME (Scheduled Time) performing the selected action.
  • Page 17 Keep the remote at room temperature. If bObi is not responding to her remote, it likely Hold down the remote’s navigational buttons to keep bObi moving in the desired needs to be synced.
  • Page 18 Cleaning Schedule...
  • Page 19 SCHEDULED TIME SPEED bObi uses a 24-hour clock. If you want bObi to start cleaning at 8:00 AM, set her scheduled time to 08:00. If you want her to start at 8:00 PM, set it to 20:00. 8:00 AM is the default time. This time is displayed after installing new batteries...
  • Page 20 Setting the Current Time To set the current time on bObi’s remote: Make sure bObi’s power The first hour digit will start Press the RGHT button to Press the RGHT button When reach Press the FWD and BACK flashing. Use the FWD and move on to the next digits.
  • Page 21 Press OK again to deselect a day. If you’d like bObi to clean every day, press the ALL/ NONE button. Press the ALL/NONE button again to deselect all days.
  • Page 22 Auto-Resume On auto-resume mode, bObi leaves her charging station EVERY TIME her battery is full to perform “back-to-back” cleaning cycles. To enable auto-resume: Press SCH TIME to save bObi will chirp to confirm Use FWD and BACK to scroll your settings.
  • Page 23 To disable auto-resume: Press the STOP button and “ ” Press the SCH TIME button again to FFG0 Press the SCH TIME Press the SCH TIME Press the STOP button — finish fueling and go — will appear on save your settings. button on the remote.
  • Page 24 Parts & Maintenance...
  • Page 25 2 microfiber mopping cloths, To detach bObi’s mop: which can be used dry or damp. bObi’s mini-mop can be used to remove small stains from hard floors such as tile, laminates, and hardwood.
  • Page 26 Remove the filter and dust This will release the gate. release the gate. down and open the clear it off using bObi’s cleaning filter cover. tool. Use the cleaning tool to remove remaining dirt and dust from the dustbin. It is recommended that you change bObi’s filter...
  • Page 27 Washing the Dustbin One of bObi’s best features is her washable dustbin. To wash the dustbin, first remove To reinstall the dustbin: the vacuum motor and filter. To remove the vacuum motor: Eject the dustbin, and remove the HEPA Push the button on top of the dustbin.
  • Page 28 Main Brushes bObi has one bristled brush and one rubber brush. It is recommended that you remove and clean bObi’s main brushes every few cleaning cycles. To remove and clean the main brushes: Flip bObi over and press the latch on...
  • Page 29 Remove and clean the rubber brush Starting with the rubber brush, replace Lower the locking bar until it clicks and ends. Make sure the metal cores remain the brushes. Insert the socket ends first, locks into place. in place before replacing the brush ends. and lower the rubber ends into place under the latch bar.
  • Page 30 Side Brush UV Light bObi uses a side brush to clean along corners and walls. Dirt and dust trapped bObi’s UV light is activated by default. The UV light is only visible while she around the brush can hinder its ability to move freely and reduce bObi’s efficiency.
  • Page 31 Front Wheel Sensors To remove and clean the front wheel: Dirt and dust on bObi’s wall and edge sensors can reduce her performance. Regularly cleaning these sensors ensures that bObi keeps working at her best. To clean bObi’s sensors: •...
  • Page 32 Dark-colored carpet and certain floor patterns may seem like edges to bObi’s bObi should not be left unused with her power switch ON for more than 5 edge sensors. If bObi displays Error Code 01 (Er 01) on her remote while working days.
  • Page 33 Troubleshooting & Checkup Test...
  • Page 34 Error Code 01 (Er 01): Edge Sensors When bObi faces an uncomfortable situation, she stops and displays ER and a two-digit number on her remote. Each number corresponds to a certain issue bObi’s four, oval-shaped edge sensors are located on her underside, near bObi is having.
  • Page 35 Let her charge for at least 8 hours. • If bObi displays Error Code 02 while cleaning on a shag carpet or rug, you may remove her main brushes and allow her to clean without them, but she will not clean as effectively.
  • Page 36 • Look at where the dustbin connects to bObi’s body. Under the red plastic casing is the dustbin’s contact points. Make sure they spring freely and are not stuck or bent.
  • Page 37 Home Checkup Test If bObi is not performing as well as she used to, you can diagnose the problem bObi will beep twice to confirm that she is in checkup mode. You may now release with a simple home checkup test.
  • Page 38 The checkup mode indicator should read 0000. Numbers 1 – 4 at the top of While in mode 0000, press LEFT on the remote. The checkup mode the remote represent bObi’s 4 edge sensors, and the numbers 5 and 6 indicator should read 0001. The main 4-digit number in the center of the represent the 2 ground sensors inside bObi’s left and right wheels.
  • Page 39 (mv). Use a thick, flat, and white surface to imitate a wall in front of bObi. Drag the A fully charged battery should have a voltage between 1300 and 1600 mv.
  • Page 40 Do not press any additional buttons. Ignore the numbers on the main 4-digit While in mode 0100, press RGHT on the remote. The checkup mode indicator number in the center of the screen. 80 touch sensors surround bObi’s front. should read 0200. The main 4-digit number in the center of the screen While in mode 0100, press on any of the touch sensors on the left side of indicates the number of times bObi’s battery has been charged.
  • Page 41 0110. Right Wheel: Press LEFT on the remote to enter checkup mode 0301. The main 4-digit number in the center of screen indicates the current of bObi’s right wheel. Normal current ranges between 0020 and 0110. Main Brush: Press LEFT on the remote again to enter checkup mode 0302.
  • Page 42 If everything responds properly, bObi’s internal parts are working correctly. If you have any questions, contact our helpful team at support@bobsweep.com, It is best to let bObi work in her own way, even if her movements appear odd. for further assistance. Or, call us toll-free at 1-888-549-8847. Our hours are Picking her up and moving her around may confuse her and disrupt her cycle.
  • Page 43 Warranty & FAQs...
  • Page 44 Generally, the smoother the surface (e.g. hardwood or tile), bObi, and find coverage plans. the longer the battery will last. When bObi is fully charged, she works on average 60 minutes. Even after bObi’s 1-year warranty is over, replacement parts and visits to the 3.
  • Page 45 If you would like bObi to avoid a certain area, such as an area with wires, you 7. Why is my bObi beeping? may use blOck (available for purchase separately) to create a digital barrier.
  • Page 46 13. My bObi is stopping and showing an Error Code on the remote’s screen. How can I fix this? To understand bObi’s language, consult the Troubleshooting section of this...
  • Page 47 End User License Agreement...
  • Page 48 IMPORTANT - READ BEFORE USING. Do not use the robot (“Bobsweep”) accompanying this license agreement (“Agreement”) until you have warranty or condition, express, implied or statutory. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES, carefully read and agreed to the following terms and conditions. SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
  • Page 49 bObsweep ® and © bObsweep Inc. All rights reserved.
