OWNER'S MANUAL
How to employ your intelligent floor cleaner

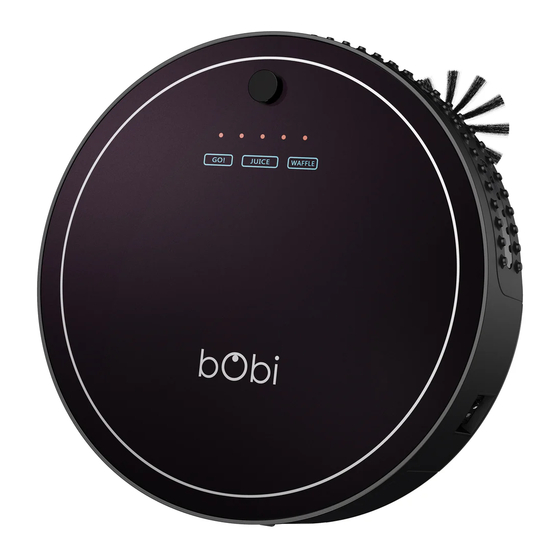

bObi Pet
Model NW604001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pet NW604001 and is the answer not in the manual?

Questions and answers

Related Manuals for bObi Pet NW604001

Summary of Contents for bObi Pet NW604001

  • Page 1 OWNER’S MANUAL How to employ your intelligent floor cleaner bObi Pet Model NW604001...
  • Page 2 Congratulations! Congratulations on your new intelligent floor cleaner! bObi is now at your service. To see bObi at her best, please read the Quick Start Guide and this manual thoroughly. Welcome to the bObsweep family and happy cleaning! If you have any questions or concerns, feel free to contact our helpful team at: support@bobsweep.com...
  • Page 3 Anatomy Parts & Important Safety Box Contents Remote Control Setting bObi’s Maintenance Instructions Cleaning Schedule Controls Remote Screen Mini Mop Syncing Remote Set Current Time Dustbin Set Cleaning Schedule Main Brushes Auto-Resume Side Brush UV Light Front Wheel Sensors Blindfold Stickers...

  • Page 4: Important Safety Instructions

    — into water or other liquids. bObi’s dustbin may be washed with water property, pets, and persons and unintended removal of articles, such as small valuables, jewelry, only once her motor has been removed.

  • Page 5: Box Contents

    Box Contents bObi, Your Intelligent Floor Cleaner Charging Station Spare Main Brush Charging Adapter Remote Control bObi blOck™ Spare Side Brush Cleaning Tool Pack of Screws Blindfold Stickers Mini-Mop Attachment Mopping Cloths Spare HEPA Filter Owners’ Manual, Quick Start Guide, Warranty Card...
  • Page 6 Anatomy Anatomy Top View Top View Bottom View Main Brush Cover Rubber Brush Touchscreen Buttons Dustbin Transmitter Right Wheel Charging Indicator Left Wheel Touch Sensors Side Brush Wall Sensors Edge Sensors Charging Inlet Front Wheel Power Switch UV Light Battery...
  • Page 7 Charging Station Touchscreen Buttons Remote Control blOck™ bObi will clean on her default cleaning mode JUICE bObi will search for her charging station to refuel WAFFLE bObi will clean localized mess...
  • Page 8 Get bObi Ready to Clean...
  • Page 9 The other lights will disappear. After installing bObi’s battery, charge bObi for 8 hours before first use.
  • Page 10 Flip her power switch ON, and press the GO! button on her cover or remote. bObi will clean on her default setting. If bObi is left idle with her power switch ON, her screen will go blank and she will enter standby mode. To wake bObi, tap her touchscreen. To fully power off bObi, flip her power switch OFF.

  • Page 11: Touchscreen Buttons

    JUICE mode. WAFFLE WAFFLE can be used to clean up small spills of dry substances. bObi will clean an area of 10 square feet (1 square meter) for about 1 – 3 minutes before she stops and enters standby mode.

  • Page 12: Charging Station

    Charging Station...

  • Page 13: Charging Station Placement

    When bObi detects her charging station, she will line herself up, dock, and begin to charge. If bObi has trouble finding her station, you likely need to sync the station. To sync the charging station: 2 ft (0.5 m) Flip bObi’s power switch...

  • Page 14: Manual Charging

    Manual Charging Using the charging station: • Place bObi on her charging station with the metal nodes on her front resting against the plates on her station. While still pressing the sync button, flip bObi will chirp twice to let you know the bObi’s power switch ON.
  • Page 15 blOck™...
  • Page 16 If you need to keep certain areas out of bObi’s reach, you can use blOck To set up digital barriers with blOck™: ™ create a digital barrier that bObi will not cross. blOck™ runs on 4 AA batteries (not included).
  • Page 17 To turn blOck™ OFF: If bObi does not respond to her blOck™, blOck™ likely needs to be synced. Press the power button again. The red power light on the front of blOck™ will To sync blOck™: disappear. Switch both bObi and blOck™ OFF.
  • Page 18 For example, see the image below where blOck™ is placed at the opening of a doorway. While holding down blOck™’s sync bObi will chirp twice to let you know the button, flip bObi’s power switch ON. sync was successful.

  • Page 19: Remote Control

    Remote Control...
  • Page 20 • Sets the current time and weekday. Each time you select an action on the remote, bObi will chirp once before per- SCH TIME (Schedule Time) forming the selected action.
  • Page 21 Keep the remote at room temperature. If bObi is not responding to her remote, it likely Hold down the remote’s navigational buttons to keep bObi moving in the desired needs to be synced.

  • Page 22: Cleaning Schedule

    Cleaning Schedule...
  • Page 23 DAYS CURRENT TIME SCHEDULED TIME bObi uses a 24-hour clock. If you want bObi to start cleaning at 8:00 AM, set her scheduled time to 08:00. If you want her to start at 8:00 PM, set it to 20:00. SPEED 8:00 AM is the default time.
  • Page 24 Setting the Current Time To set the current time on bObi’s remote: The first hour digit will start Press the RGHT button to Press the FWD and BACK When reach Make sure bObi’s power Press the RGHT button until flashing. Use the FWD and move on to the next digits.
  • Page 25 Press OK again to deselect a day. If you’d like bObi to clean every day, press the ALL/NONE button. Press the ALL/NONE button again to deselect all days.

  • Page 26: Auto-Resume

    Auto-Resume On auto-resume mode, bObi leaves her charging station EVERY TIME her battery is full to perform “back-to-back” cleaning cycles. To enable auto-resume: Press SCH TIME to save bObi will chirp to confirm Use FWD and BACK to scroll through weekdays and press your settings.
  • Page 27 To disable auto-resume: FFG0 Press the SCH TIME button again to Press the STOP button and “ ” Press the STOP button Press the SCH TIME but- Press the SCH TIME button save your settings. - finish fueling and go - will appear on on the remote.

  • Page 28: Parts & Maintenance

    Parts & Maintenance...
  • Page 29 2 microfiber mopping cloths, To detach bObi’s mop: which can be used dry or damp. bObi’s mini-mop can be used to remove small stains from hard floors such as tile, laminates, and hardwood.

  • Page 30: Hepa Filter

    Pull the dustbin out. Eject the dustbin and Flip the dustbin upside- clips on either side of the down and open the clear it off using bObi’s cleaning button on the back of the release the gate. dustbin with both hands. filter cover.
  • Page 31 Washing the Dustbin One of bObi’s best features is her washable dustbin. To wash the dustbin, first To reinstall the dustbin: remove the filter and the vacuum motor. To remove the vacuum motor: Eject the dustbin, and remote the HEPA Press the button on top of the dustbin.

  • Page 32: Main Brushes

    Main Brushes bObi uses a dual brush cleaning system. It is recommended that you open and clean bObi’s main brushes after every 2-3 cleaning tasks. To open and clean the brushes: Flip bObi over and press the latch on the...
  • Page 33 Remove and clean the rubber brush Starting with the rubber brush, replace Lower the locking bar until it clicks and ends. Make sure the metal cores remain the brushes. Insert the socket ends first, locks into place. in place before replacing the brush ends. and lower the rubber ends into place under the latch bar.

  • Page 34: Side Brush

    Side Brush UV Light bObi uses a side brush to clean along corners and walls. Dirt and dust trapped bObi’s UV light is activated by default. The UV light is only visible while around the brush can hinder its ability to move freely and reduce bObi’s efficiency.

  • Page 35: Front Wheel

    Front Wheel Sensors To remove and clean the wheel: Dirt and dust on bObi’s wall and edge sensors can reduce her performance. Regularly cleaning these sensors ensures that bObi keeps working at her best. To clean bObi’s sensors: • Wipe the wall and edge sensors using a cloth slightly dampened with cold...

  • Page 36: Blindfold Stickers

    Dark-colored carpet and certain floor patterns may seem like edges to bObi’s bObi should not be left unused with her power switch ON for more than 5 days. edge sensors. If bObi displays Error Code 01 (Er 01) on her remote while work- If you are not using bObi for an extended period of time, switch her OFF.
  • Page 37 Troubleshooting & Checkup Test...

  • Page 38: Troubleshooting

    Error Codes Error Code 01 (Er 01): Edge Sensors When bObi faces an uncomfortable situation, she stops and displays ER and a two-digit number on her remote. Each number corresponds to a certain issue bObi is having. bObi’s four, oval-shaped edge sensors are located on her underside, near her bumper.
  • Page 39 Let her charge for at least 8 hours. • If bObi displays Error Code 02 while cleaning on a shag carpet or rug, you may remove her main brushes and allow her to clean without them, but she will not clean as effectively.
  • Page 40 • Look at where the dustbin connects to bObi’s body. Under the red plastic casing is the dustbin’s contact points. Make sure they spring freely and are not stuck or bent.
  • Page 41 Home Checkup Test If bObi is not performing as well as she used to, you can diagnose the prob- bObi will beep twice to confirm that she is in checkup mode. You may now release lem with a simple home checkup test.
  • Page 42 The checkup mode indicator should read 0000. Numbers 1 – 4 at the top of While in mode 0000, press LEFT on the remote. The checkup mode the remote represent bObi’s 4 edge sensors, and the numbers 5 and 6 indicator should read 0001. The main 4-digit number in the center of the represent the 2 ground sensors inside bObi’s left and right wheels.
  • Page 43 (mv). Use a thick, flat, and white surface to imitate a wall in front of bObi. Drag the A fully charged battery should have a voltage between 1300 and 1600 mv.
  • Page 44 0200. In this mode, the main 4-digit number in the center of bObi’s front. While in mode 0100, press on any of the touch sensors on the the remote indicates the number of times bObi’s battery has been used.
  • Page 45 0110. Right Wheel: Press LEFT on the remote to enter checkup mode 0301. The main 4-digit number in the center of screen indicates the current of bObi’s right wheel. Normal current ranges between 0020 and 0110. Main Brush: Press LEFT on the remote again to enter checkup mode 0302.
  • Page 46 It is best to let bObi work in her own way, even if her movements appear odd. for further assistance. Or, call us toll-free at 1-888-549-8847. Our hours are Picking her up and moving her around may confuse her and disrupt her cycle.

  • Page 47: Warranty Information

    Generally, the smoother the surface (e.g. hardwood or tile), bObi Pet, and find coverage plans. the longer the battery will last. When bObi is fully charged, she works on average 60 minutes. Even after bObi’s 2-year warranty is over, replacement parts and visits to the 3.
  • Page 48 Let bObi recharge fully cleaning completely and starts beeping. before using again. If you would like bObi to avoid a certain area, such as an area with wires, 7. Why is my bObi beeping? you may use blOck™ to create a digital barrier.
  • Page 49 13. My bObi is stopping and showing an Error Code on the remote’s screen. How can I fix this? To understand bObi’s language, consult the Troubleshooting section of this...
  • Page 50 End User License Agreement...
  • Page 51 IMPORTANT - READ BEFORE USING. Do not use the robot (“Bobsweep”) accompanying this license agreement (“Agreement”) until you have warranty or condition, express, implied or statutory. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES, carefully read and agreed to the following terms and conditions. SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
  • Page 52 bObsweep ® and © bObsweep Inc. All rights reserved.
