Summary of Contents for ZUG Combair SG Series

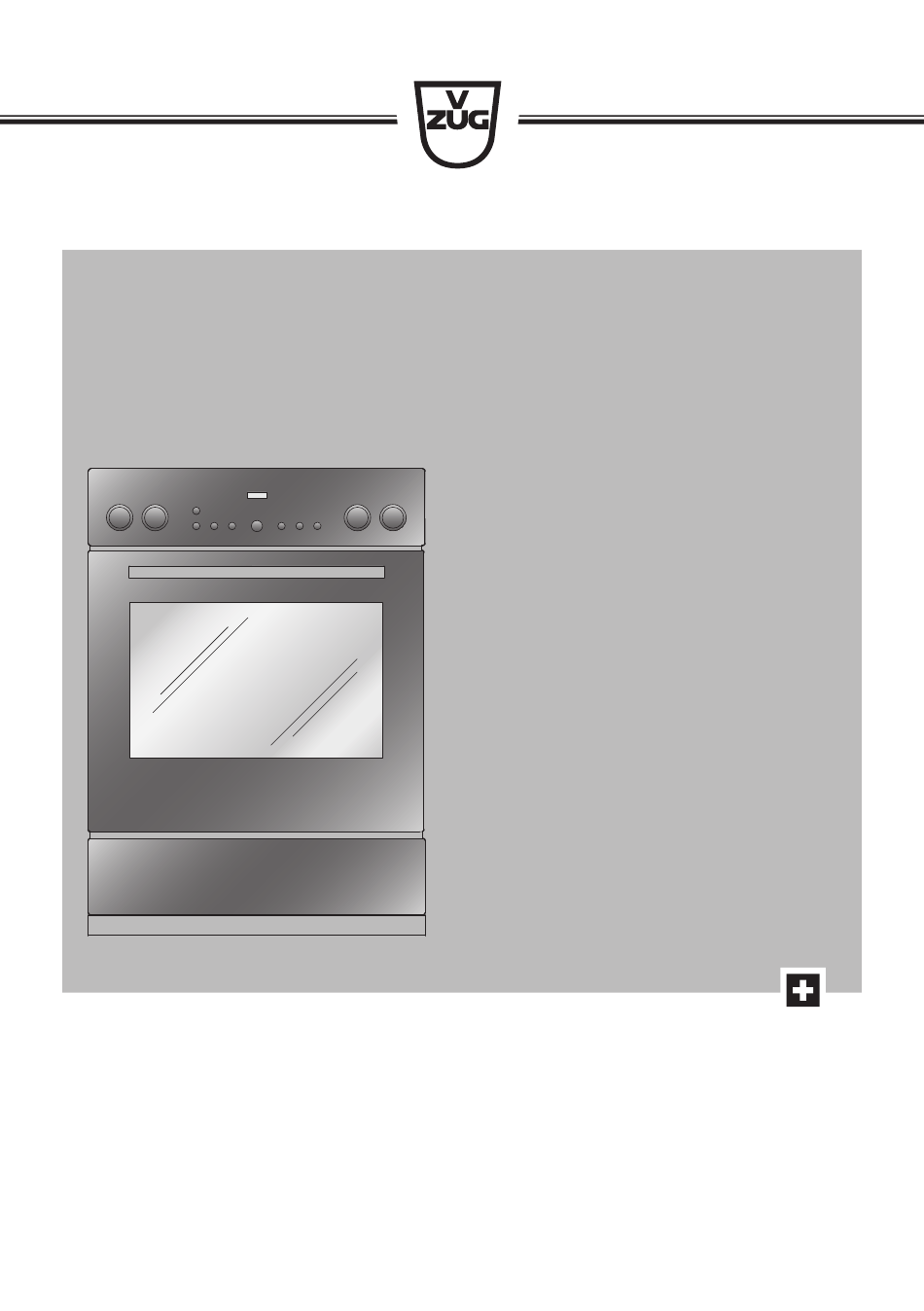

- Page 1 Operating instructions Combair SG Oven • Hob...
- Page 2 These operating instructions apply to: Type Product family Size system BCSG 21031 55-600/55-762 BCSG60 21032 60-600/60-762 ECSG 22013 55-762 ECSG60 22014 60-600 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2018...
-
Page 3: Table Of Contents
Contents Top/Bottom heat humid ........ 21 Safety precautions 5 Bottom heat ............ 21 Symbols used............ 5 Hot air .............. 21 General safety precautions........ 5 Hot air humid............ 22 Appliance-specific safety precautions .... 5 PizzaPlus .............. 22 Instructions for use.......... - Page 4 13.2 Temperature measurement ....... 33 13.3 Product fiche ............ 34 13.4 Automatic energy-saving stand-by .... 34 Disposal 35 Index 36 Notes 38 Service & Support 39...
-
Page 5: Safety Precautions
Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... - Page 6 1 Safety precautions to touch the heating ele- ▪ Under no circumstances use ments. Children under 8 a steam cleaner to clean the years of age must be kept appliance. away from the appliance un- ▪ WARNING: Before replacing less they are constantly su- the light bulb, ensure the ap- pervised.
-
Page 7: Instructions For Use
1 Safety precautions ▪ Retain these operating instructions for then carefully smother the future reference. flames with, for example, a lid ▪ The appliance corresponds to recog- or a fire blanket. nized technology standards and the rel- evant safety regulations. Proper use of ▪... - Page 8 1 Safety precautions ▪ Overheated fat and oil can easily catch ▪ Do not use protective aluminium inserts fire. Heating oil in the cooking space to with appliances with no visible bottom sear meat is dangerous and should not heating element. be done.
-
Page 9: Appliance Description
Appliance description Construction Operating and display elements Dials Ventilation opening Door handle Appliance door Appliance drawer/Heatable appliance drawer * * Depending on model The dials are retractable. The dial can only be retracted in the «0» position. ▸ Press the middle of the dial in order to extend or retract it. -
Page 10: Operating And Display Elements
2 Appliance description Operating and display elements Digital displays Temperature Time Operating time Switch-off time Timer Operating mode symbols Top/Bottom heat Top/Bottom heat humid Bottom heat Hot air Hot air humid PizzaPlus Grill Grill-forced convection Symbols Heatable appliance drawer * Cooking space temperature Timer Operating time... -
Page 11: Cooking Space
2 Appliance description Cooking space Using protective inserts or aluminium foil can damage the appliance! Do not place any protective insert or aluminium foil on the floor of the cooking space. Appliance door Cooking space ventilation Door seal Grill/Top heat Illumination Cooking space temperature sensor Hot air fan... -
Page 12: Operating The Appliance
3 Operating the appliance ▸ Ensure that the «sloped» side 1 of the baking tray is to the back of the cooking space. ▸ Only use the normal way round – not upside down. Wire shelf ▪ For standing roasting and baking tins on ▪... -
Page 13: To Select The Operating Mode
3 Operating the appliance ▸ Heat the empty cooking space (without wire shelves, baking trays, etc.) using the operating mode at the maximum cooking space temperature for about 1 hour. ▸ If your appliance comes with hotplates, heat each hotplate individually (without cook- ware) at full power for 5 minutes. -
Page 14: Changing The Operating Mode
4 User settings Changing the operating mode ▸ Press the button repeatedly until the desired operating mode is displayed. Switching off ▸ Press the button. – A short acoustic signal is emitted. – The operating mode symbol and go out. When the symbols are no longer illuminated, the appliance is off. -
Page 15: Childproof Lock
4 User settings Possible settings off * Childproof lock visible * Time display invisible high * Acoustic signal off °C * Temperature unit °F 24 h * Time format 12 h no change Factory settings restore * Factory setting Childproof lock The childproof lock is to prevent the appliance from being accidentally switched on. -
Page 16: Time Display
5 Time functions buttons can be used irrespective of whether the childproof lock is activated or not. Time display If «invisible» is selected, the displays are not illuminated when the appliance is off. The time is visible when the appliance is on. To reduce power consumption to a minimum, select , «Time display invis- ible», in the user settings. -
Page 17: Setting And Changing The Time
5 Time functions When the appliance is switched off, the time display is dimmed between 24:00 and 6:00. If the time format has been selected, the display is not dimmed. Setting and changing the time The time cannot be changed if the appliance is in operation or if a delayed start has been set. -
Page 18: Operating Time
5 Time functions Checking and changing ▸ Press the button. – The countdown to the time remaining flashes in the display. – The symbol flashes. ▸ Turn the adjusting knob to change the duration of the timer. Switching off before time ▸... -
Page 19: Delayed Start
5 Time functions Switching off ▸ Press the button. – The settings are cleared. – The residual heat appears in the display. Delayed start The delayed start is activated when for the operating mode selected both an operating time and a switch-off time are set. The appliance switches automatically on and off again at the desired times. -
Page 20: Operating Modes
6 Operating modes Checking and changing the parameters ▸ Press the button 1×. – The operating time is visible for 3 seconds. ▸ Press the button 2×. – The switch-off time flashes and can be changed. The operating time, the operating mode and the cooking space temperature can- not be changed. -
Page 21: Top/Bottom Heat Humid
6 Operating modes The cooking space is heated by the top and bottom heating elements. Uses ▪ Classic operating mode for cooking and baking on one level ▪ Cakes, biscuits, bread and roasts Use a dark enamelled tray or a black tray or tin for crispy results. Top/Bottom heat humid Temperature range 30–280 °C... -
Page 22: Hot Air Humid
6 Operating modes Uses ▪ Particularly suitable for baking savouries and biscuits on several levels at the same time ▪ Cakes, bread and roasts Select a lower temperature (reduce by approximately 20 °C) than for as the heat transfer is more efficient. Hot air humid Temperature range 30–250 °C... -
Page 23: Grill
6 Operating modes Grill Temperature range 30–280 °C Recommended value 250 °C Level 3 or 4 The cooking space is heated by the grill element. ▪ Flat food for grilling, e.g. steaks, chops, chicken parts, fish and sausages ▪ Gratinating ▪... -
Page 24: Tips And Tricks
7 Tips and tricks Tips and tricks Baking and roasting Result Solution ▪ The baking or roast looks ▸ Next time, set a lower temperature and extend good on the outside but is the operating time. still doughy or raw on the in- ▸... -
Page 25: Saving Energy
8 Heatable appliance drawer option Saving energy operating modes consume less energy than the operating modes. ▸ Avoid opening the appliance door frequently. ▸ Only switch the illumination on when needed. ▸ Use residual heat: for longer cooking times, i.e. over 30 minutes, switch the appliance off 5–10 minutes before the end of the cooking time. -
Page 26: Cleaning The Door Seal
9 Care and maintenance System/warming/heatable appliance drawer The drawer can be removed for ease of cleaning. ▸ Pull out the drawer as far as the stopper will allow, lift slightly and remove from the front. Cleaning the door seal ▸ Clean the door seal with a soft cloth dampened with water, but do not use any clean- ing agent. -
Page 27: Cleaning The Accessories And Shelf Guides
9 Care and maintenance Cleaning the accessories and shelf guides ▪ The wire shelf and shelf guides can be cleaned in the dishwasher. ▪ The baking tray can be cleaned in the dishwasher; however, this will affect its non- stick properties. Removing and reassembling the shelf guides ▸... -
Page 28: Trouble-Shooting
10 Trouble-shooting ▸ Remove the left shelf guide. ▸ Place the screw driver along the middle of the edge of the glass and carefully remove the glass light cover 1 from its fixture. ▸ Take out the defective halogen light bulb. ▸... - Page 29 10 Trouble-shooting … when grilling, thick smoke is given off Possible cause Solution ▪ The food is too near to the ▸ Check that the level selected is as recommended heating elements. in the separate 'Tips on settings'. ▪ The cooking space temperat- ▸...
-
Page 30: After A Power Failure
11 Hob … the display is dark Possible cause Solution ▪ User setting «Time display in- ▸ Select user setting «Time display visible» (see visible» selected. 'User settings'). 10.3 After a power failure The user settings remain unchanged. After a power failure –... -
Page 31: Cookware
11 Hob Dials The numbers for the different power levels are located on the retractable dials and are visible when extended. ▸ To extend the dial, press it in the middle. ▸ To retract the dial, first set it to «0» and then press it in the middle. 11.2 Cookware Suitable cookware... -
Page 32: Care And Maintenance
12 Accessories and spare parts Overview of power levels Power level Cooking method Melting, gentle warming Butter, chocolate, gelatine, sauces Swelling Rice Simmering, reducing, steaming Vegetables, potatoes, sauces, fruit, fish Simmering, braising Pasta, soup, braised meat Gentle frying Rösti (hash browns), omelettes, breaded fried foods, sausages Frying, deep frying, fast heating Meat, chips, boiling water... -
Page 33: Spare Parts
13 Technical data 12.3 Spare parts Shelf guides left/right Halogen light bulb Door seal The halogen light bulb is also available from specialist retailers. Technical data External dimensions ▸ See installation instructions Electrical connection ▸ See identification plate 1 13.1 Note for testing institutes The energy efficiency class according to EN 50304 / EN 60350 is determined using the operating modes. - Page 34 13 Technical data 13.3 Product fiche In accordance with EU Regulation No.: 66/2014 Brand – V-ZUG Ltd Type of appliance – Oven | Hob Model designation – BCSG | ECSG Mass of MS 55 appliance Mass of EURO 60 appliance Number of cavities –...
- Page 35 14 Disposal Disposal 14.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 14.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
- Page 36 Index Accessories ..........11, 32 F and E messages .......... 29 Cleaning ............ 27 Factory settings ......... 15, 16 Acoustic signal .......... 15, 16 Fast heating ............23 Appliance disposal .......... 35 Appliance door Cleaning ............ 26 Grill ..............23 Removing ............
- Page 37 15 Index Queries .............. 39 Validity..............2 Removing food from cooking space ... 14 Warming drawer Cleaning ............ 26 Wire shelf............12 Safety guard............27 Safety precautions Appliance-specific .......... 5 Before using for the first time....... 7 Correct use ............ 7 General ............. 5 Saving energy..........
- Page 38 Notes...
- Page 39 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
- Page 40 ▸ Press the button. ▸ Turn the adjusting knob to set the timer duration. J21031013-R03 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
