Tools needed (not included):
Outils requis (non incluse):
Herramientas necesarias (no se incluye):
Adjustable wrench
Silicone sealant
Clé réglable
Enduit d'etancheite au silicone
Llave ajustable
Sellador de silicona
Safety goggles
Lunettes protectrices
Gafas de seguridad
Need Help? Please call our toll-free Technical Support line at 1-800-487-8372 for additional assistance or service./
Besoin d'aide? Veuillez communiquer avec notre ligne de soutien technique sans frais à 1-800-487-8372 pour obtenir du service
ou de l'aide additionnels./¿Necesitas Ayuda? Favor de llamar a nuestro servicio de soporte técnico sin costo al 1-800-487-8372
para asistencia adicional o servicio.

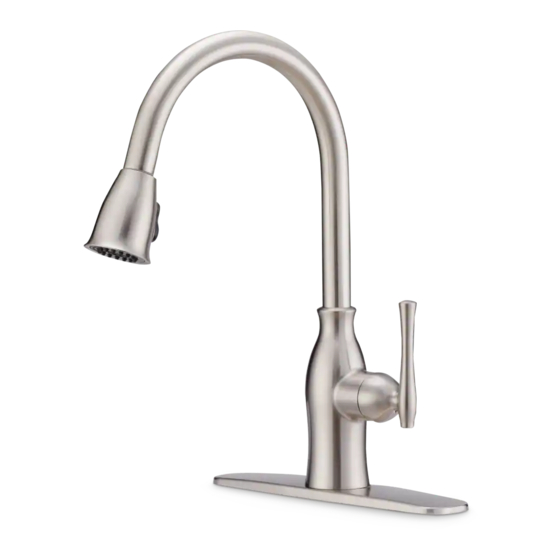

Pull-Down Kitchen Faucet
Robinet de cuisine à bec rétractable
Grifo abatible para cocina
Safety Tips
• When installing flexible hose, there should be no torsion or deformation; DO NOT fold into V or L
shape; DO NOT use if there are any cracks or deformations.
• The fittings should be installed by a licensed plumber.
• Cover your drain to avoid losing parts.
Conseils de sécurité
• Lorsque vous installez le tuyau flexible, il ne doit exister aucune torsion ou déformation;
NE le pliez PAS en V ou L; NE L'UTILISEZ PAS s'il existe des fissures ou déformations.
• Les raccords doivent être installés par un plombier accrédité.
• Recouvrez le drain pour éviter de perdre des pièces.
Consejos de seguridad
• Al instalar la manguera flexible, esta no debe doblarse o torcerse; NO doblar en forma de V o L;
NO usar si está agrietada o deformada.
• Estos acoplamientos deben ser instalados por un plomero con licencia.
• Cubre el drenaje para evitar que se pierdan piezas.
1
FP4A0092
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Danze FP4A0092
Summary of Contents for Danze FP4A0092

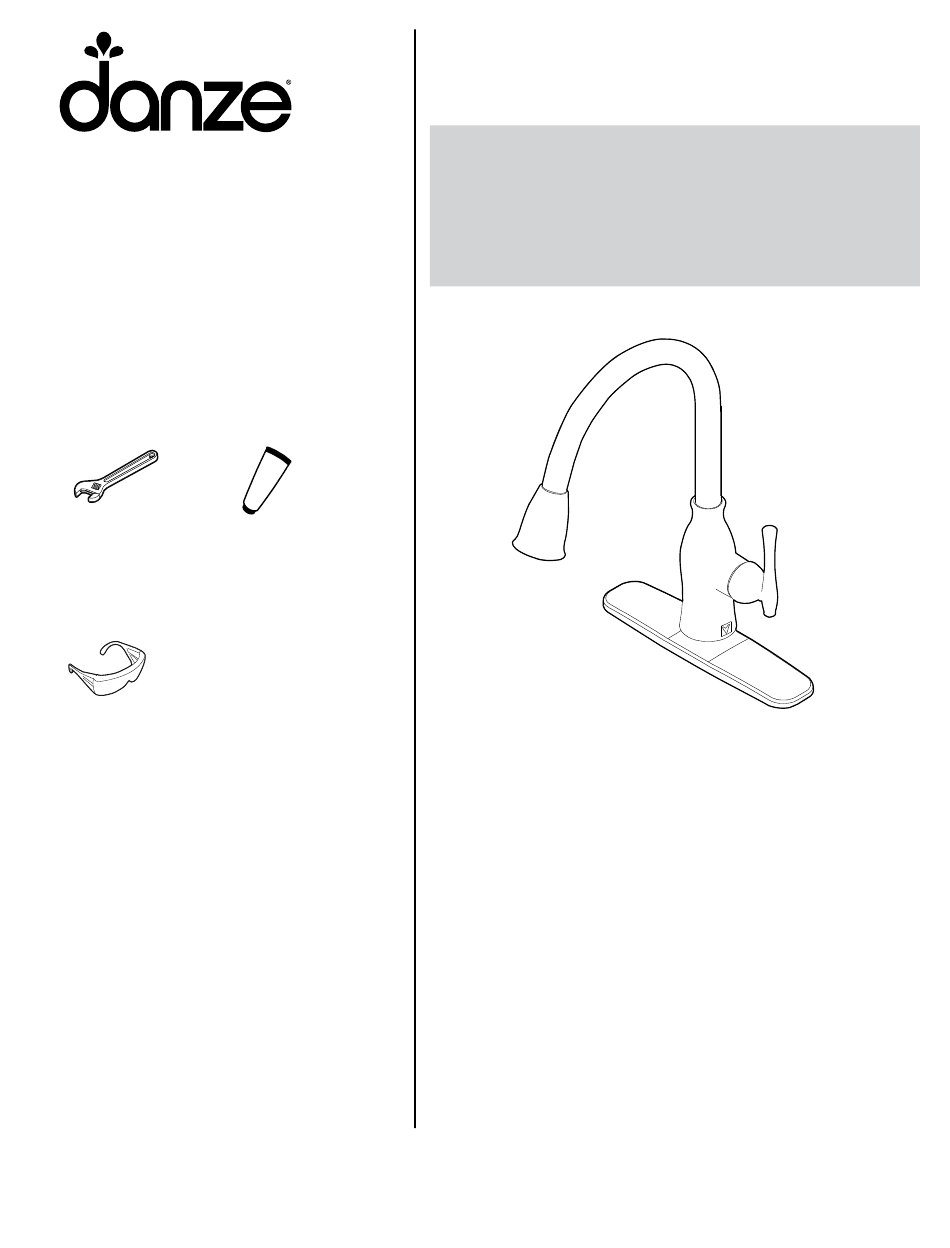

- Page 1 FP4A0092 Pull-Down Kitchen Faucet Robinet de cuisine à bec rétractable Grifo abatible para cocina Tools needed (not included): Outils requis (non incluse): Herramientas necesarias (no se incluye): Adjustable wrench Silicone sealant Clé réglable Enduit d’etancheite au silicone Llave ajustable Sellador de silicona...
