Universal Tool UT8942 Operating Instructions page 2

Limited Warranty
Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of
purchase. This warranty does not apply to tools which have been abused, misused, modified or repaired by
someone other than Universal Tool or its authorized service centers. If a Universal Tool proves defective in
material of workmanship within one year after purchase, return it to any authorized service center or to Universal
Tool, freight prepaid. Please enclose your name, address and adequate proof of purchase date with a brief
description of the defect. Universal Tool will, at its option, repair or replace defective tools, free of charge. Repairs
or replacements are warranted as described above for the remainder of the warranty period. Universal Tool's sole
liability and your exclusive remedy under this warranty is limited to repair or replacement of the defective tool.
There are no other warranties expressed or implied and Universal Tool shall not be liable for incidental, consequential
or special damages, or any other damages, costs or expense of repair or replacement as described above.

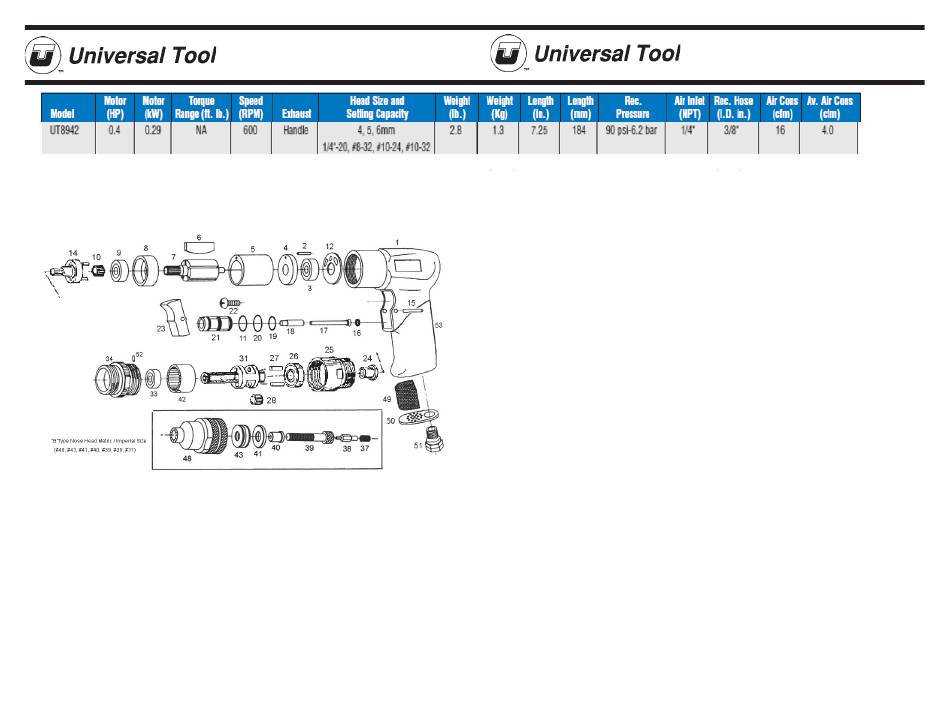

UT8942
R V I N U T S E T T N I G T O O L
Index Part Description
NO. NO.
1 9350010 Motor Housing
2 9P2514 Spring Pin
3 925004 Ball Bearing
4 925003 Rear Plate
5 935009 Cylinder
6 925007 Rotor Blade
7 935002A Rotor
8 925008 Front Plate
9 925023 Ball Bearing
10 935018B Planet Gear
11 910445 O-Ring
12 923211 Motor Gasket
14 960011A Planet Cage (15T) + Pin
15 925018B Roll Pin
16 935016 O-Ring
17 935007 Valve Stem
18 935006 Sleeve
19 935039 O-Ring
20 935003 O-Ring
21 935005 Throttle Bushing
22 935004 Screw
23 935002 Trigger
24 990016A Bushing
25 935015A Housing
26 935060 Ball Bearing
27 935059 Planet Pin
28 990014B Planet Gear (18T)
31 990010W Planet Cage
33 935069 Ball Bearing
34 935014F Screw Housing
37 935076 Spring
38 9600004 Hexagon Bit #4
9600005 Hexagon Bit #5
9600006 Hexagon Bit #6
9600832 Hexagon Bit 8-32
9601024 Hexagon Bit 10-24
9601032 Hexagon Bit 10-32
9601420 Hexagon Bit 1/4"-20
R V I N U T S E T T N I
NO. Index Part Description
Req'd NO. NO.
1 39 9M04007 Bolt M4
9M05008 Bolt M5
1 9M06010 Bolt M6
1 9W08032 Bolt 8-32
1 9W10024 Bolt 10-24
1 9W10032 Bolt 10-32
5 9W14020 Bolt 1/4"-20
1 40 960094 Bushing #4
1 960095 Bushing #5
1 960096 Bushing #6
3 960094 Bushing 6-32 , 8-32
2 960095 Bushing 10-24, 10-32
1 96009614 Bushing 1/4"-20
1 41 960063 Washer #3-#6
1 960063 Washer 6-32, 8-32, 1 0-24, 1 0-32, 1 /4"-20
2 42 935012A Internal Gear
2 43 935065 Needle Bearing #3-#8
2 935065
Needle Bearing 6- 32, 8- 32, 10- 24, 10- 32, 1/ 4"- 20, 5/ 16"- 18
2 48 960004M Nut Anvil #4
2 960005M Nut Anvil #5
2 960006M Nut Anvil #6
1 960004M Nut Anvil 8-32
1 960005M Nut Anvil 10-24, 10-32
1 96001-4-20 Nut Anvil 1/4"-20
1 49 935049 Muffler
1 50 935062 Diffuser Exhaust
2 51 935061 Air Inlet Bushing
2 52 935029 Pin
1 53 982162 Rubber Sleeve
***ACCESSORIES ***
1
*
1 9350W34 Wrench 34mm
*
1 9350W38 Wrench 38mm
1
*
1 Not Show n
1
1
1
1
1
