- Page 1 INSTRUCTION MANUAL LOOP ANTENNA MODEL ALP-11 20 Hz – 50 kHz...
- Page 2 INSTRUCTION MANUAL THIS INSTRUCTION MANUAL AND ITS ASSOCIATED INFORMATION PROPRIETARY. UNAUTHORIZED REPRODUCTION IS FORBIDDEN. 1995 ELECTRO-METRICS CORP. LOP ANTENNA 20 Hz – 50 kHz ELECTRO-METRICS MODEL ALP-11 SERIAL NO: N/A ELECTRO-METRICS CORPORATION 231 Enterprise Road, Johnstown, New York 12095...
- Page 3 WARRANTY This Model ALP-11 Loop Antenna is warranted for a period of 12 months (USA only) from date of shipment against defective materials and workmanship. This warranty is limited to the repair of or replacement of defective parts and is void if unauthorized repair or modification is attempted.
- Page 4 50 instrument in dB(µV). To find the flux density B in dB(pT), add 2 dB to the field strength H reading. The ALP-11 Loop Antenna is, electrically, a magnetic dipole and thus having a dipole pattern must be oriented for best sensitivity.

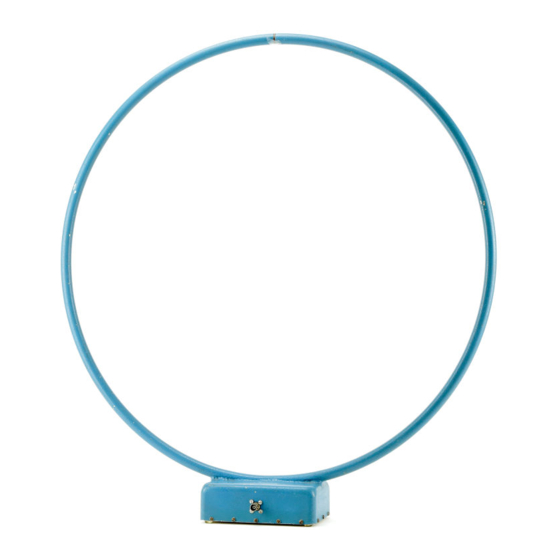

- Page 5 ELECTRO-METRICS ALP-11 2.0 Specifications 2.1 Electrical Frequency Range: 20 Hz-50 kHz. (calibrated) (Refer to Figure 1 for the Antenna Factor Chart) Impedance: Calibration for use into 50. Output Connector: BNC. 2.2 Mechanical Outside Diameter: 635 mm (25"). Height: 686 mm (27").
- Page 6 ELECTRO-METRICS ALP-11 FIGURE 1 ALP-11 ANTENNA FACTOR CHART PAGE 3A (ALP11-3)
