Summary of Contents for Hercules DJCONTROL INPULSE 200

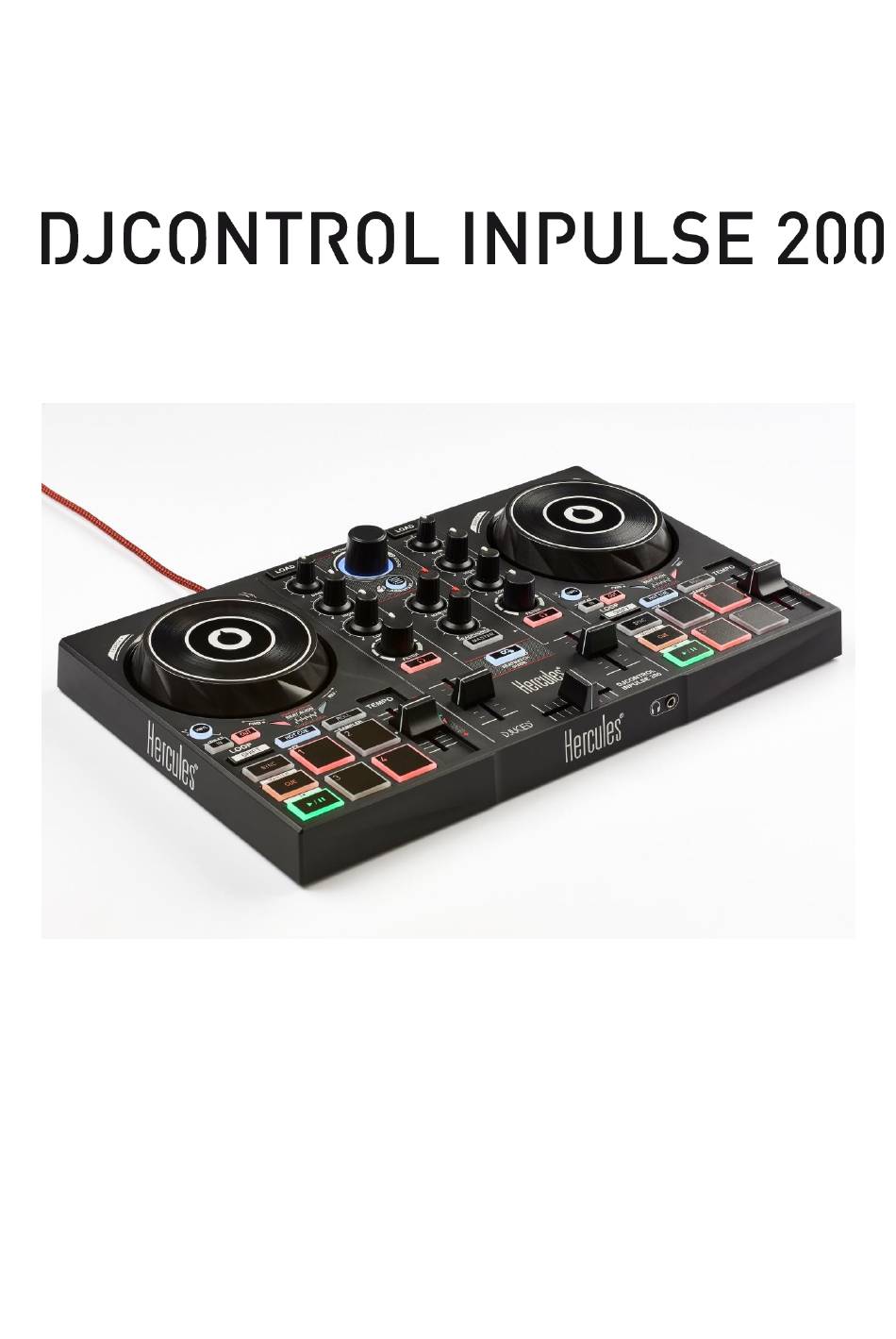

- Page 1 User manual...
- Page 2 1. Overview...
-
Page 3: Box Contents
2. Box contents Hercules DJControl Inpulse 200 DJUCED sticker Warranty flyer... -
Page 4: Product Specifications
3. Product specifications 3.1. Mechanical specifications Dimensions: 12.6 x 7.7 x 1.9” / 32 x 19.5 x 4.9 cm Weight: 1.98 lb / 0.9 kg 3.2. Technical specifications 1. USB MIDI controller, featuring: DECK 8 transport buttons: SHIFT / PLAY / CUE / SYNC 2 matrices of 4 pads each and 2 associated mode buttons (HOTCUE, ROLL, FX, SAMPLER) 4 LOOP IN/OUT buttons... - Page 5 2. Built-in multi-channel audio interface Speakers output (= output 1-2) with RCA connectors o Maximum power = 5 dBU into 1 kΩ o THD+N @ 1 kHz ~ -80 dB o Resolution = 24-bit o Sample rate = 44 kHz Headphones output (= output 3-4) with 1/8”...
-
Page 6: Installation
4. Installation 4.1. Connection to a computer (USB) Note: An LED illumination sequence, called Vegas Mode, starts up each time you connect the device to your computer. Vegas Mode takes place in four phases, allowing it to light up all of the LEDs and display the four possible colors for the multicolored backlit energy ring. - Page 7 4.2. Downloading DJUCED Go to: https://www.djuced.com/hercules Download and install DJUCED 4.3. Starting up DJUCED A window appears, indicating that your product has been successfully detected and is ready to use.
- Page 8 Follow the on-screen instructions step by step to get started. 4.4. Hercules DJ Academy Follow the Hercules DJ Academy tutorials integrated into DJUCED , which you can access by clicking the...
-
Page 9: Description Of Features

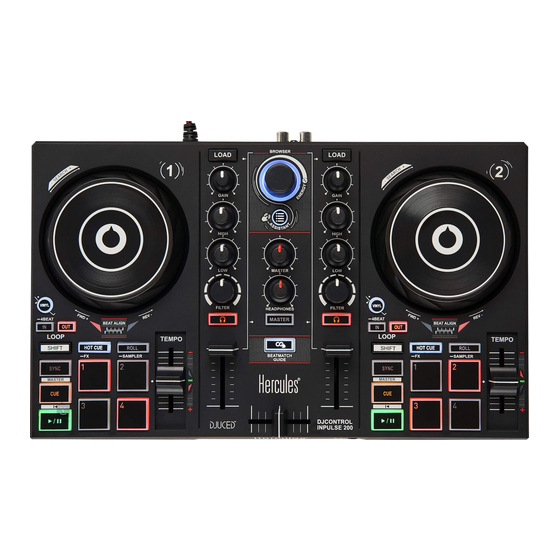

5. Description of features 5.1. Product description... - Page 10 1. Transport buttons: SYNC, CUE, play/pause, SHIFT 2. Performance pads 3. Loop In/Out (start of loop/end of loop) 4. Enable/disable Vinyl (Scratch) mode 5. Tempo adjustment fader with visual beatmatching aid (red LEDs), and green central LED for returning to the original tempo 6.
- Page 11 EQUALIZER (EQ) The ROTARY KNOB controls the EQ intensity in DJUCED . One knob is associated with each band: ® HIGH / LOW. These knobs work the same way on decks 1 and 2. GAIN Gain adjustment potentiometer for decks 1 and 2. Easily browse UP/DOWN through your music library by turning the encoder to the LEFT/RIGHT.
- Page 12 VINYL This button lets you enable/disable SCRATCH mode (to be used in conjunction with the jog wheels). MODE In conjunction with the pads, these buttons let you select the pads’ mode (HOTCUE/ROLL/FX/SAMPLER), independently on each deck. The secondary modes (FX and SAMPLER) can be accessed with a long press of ½...
- Page 13 In HOTCUE mode ADD a HotCue at the current playhead position by pressing a pad. The pad lights up in red when a HotCue is defined. Press a pad to position the playhead at the corresponding HotCue. To delete a HotCue, press SHIFT + a pad. ADD or DELETE up to 4 HOTCUES on the fly.
- Page 14 JOG WHEEL The jog wheels are touch-sensitive and capacitive, and can react to the lightest touches of your fingers. With the jog wheels, you can: - move within tracks (when playback is stopped). - control the pitch bend of a track (during playback). - scratch (when Vinyl (Scratch) mode is enabled), by touching the upper part of the jog wheel and turning the jog wheel to the right and to the left.
- Page 15 5.2. Multi-channel sound card The product includes a built-in multi-channel sound card, allowing you to play your mix on speakers for the audience (speakers output) and monitor the next track that you’re preparing on your headphones (headphones output). 1. Speakers output (= output 1-2) Your speakers should be connected to the speakers output located at the back of your product.
- Page 16 Mac, as it complies with the USB Audio and USB MIDI standards. 2. ASIO ASIO drivers are available from the product page on the Hercules support website, if required by a software application or if you wish to benefit from lower latency on your PC.
- Page 17 You will need to repeat this procedure until you find the optimal buffer size for your system. The drivers are available here: https://support.hercules.com 3. Firmware update Your product features an automatic firmware update mode. This requires installing the Hercules drivers and following the on-screen instructions. The firmware update will occur automatically.
- Page 18 The drivers are available here: https://support.hercules.com The control panel also allows you to access this information and display the driver versions installed on your computer in the ABOUT tab. Have this information ready if you need to contact Hercules’ technical support.
-
Page 19: Demo Mode
6. Demo Mode This mode is available when you connect your product to a USB power supply, and is used in-store, in particular. In this case, the product is not operational but is in demo mode: a demo sequence keeps repeating itself. - Page 20 7. FAQs a. No sound is coming out of my headphones. Make sure that you have connected your headphones at the front of the product, as your product is equipped with a multi-channel sound card preconfigured to work with DJUCED ®...
- Page 21 DJControl Inpulse 200. If your speakers’ connectors differ from the connectors on the DJControl Inpulse 200, you can use a dual RCA to 1/8” (3.5 mm) mini-jack adapter (not included) or any other adapter format corresponding to your speakers.
- Page 22 8. Trademarks Intel® and Pentium® are registered trademarks of Intel Corporation. Microsoft® Windows® 7, 8 and 10 are registered trademarks or trademarks of Microsoft Corporation in the United States and/or in other countries. Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.
- Page 23 9. Copyright No part of this manual may be reproduced, summarized, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, manual, via photocopying, recording, or other, without the express written consent of Guillemot Corporation S.A.
-
Page 24: End User License Agreement
® 10. DJUCED End User License Agreement Please read the License Agreement displayed during installation of DJUCED ® carefully.
