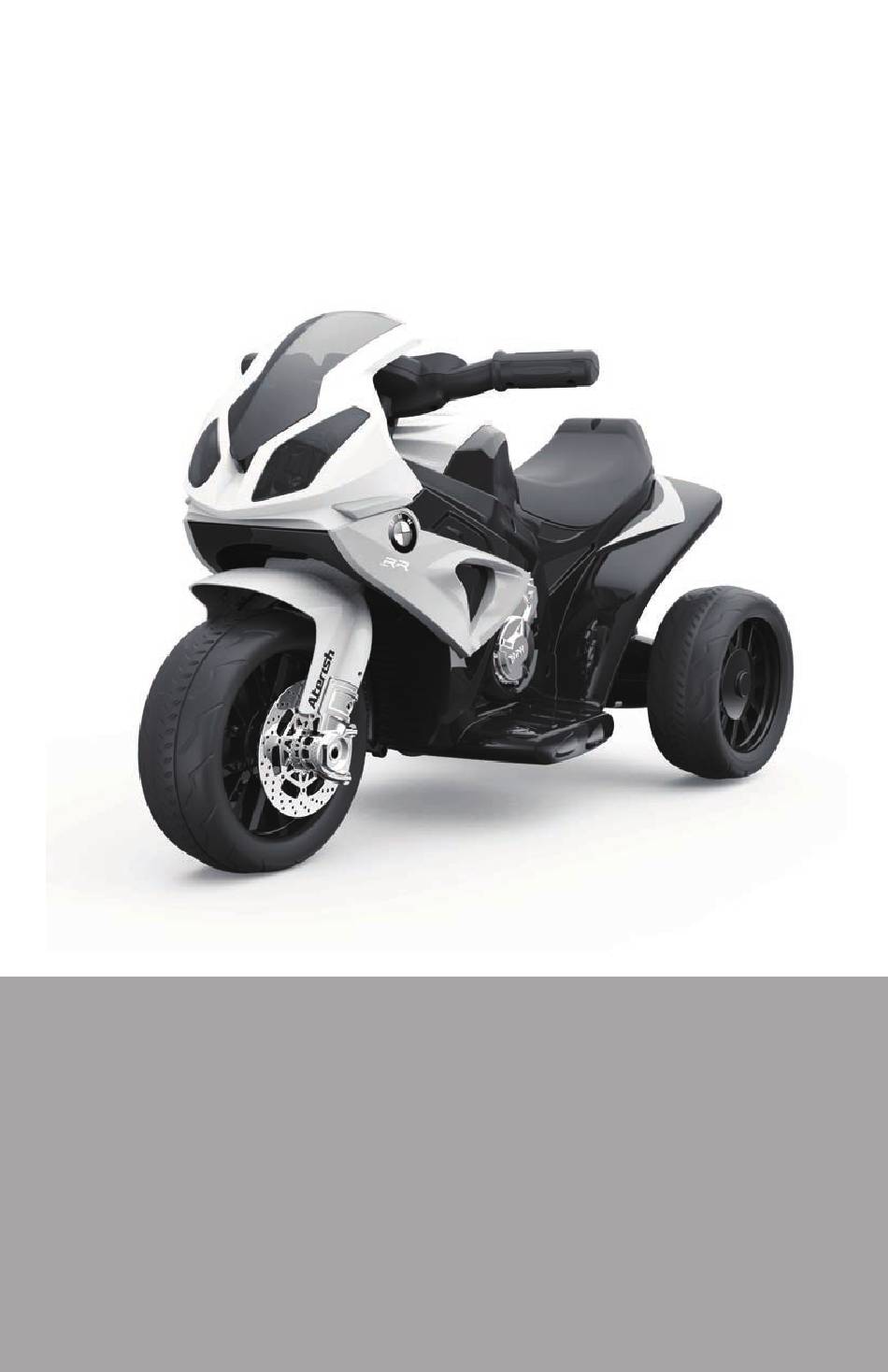

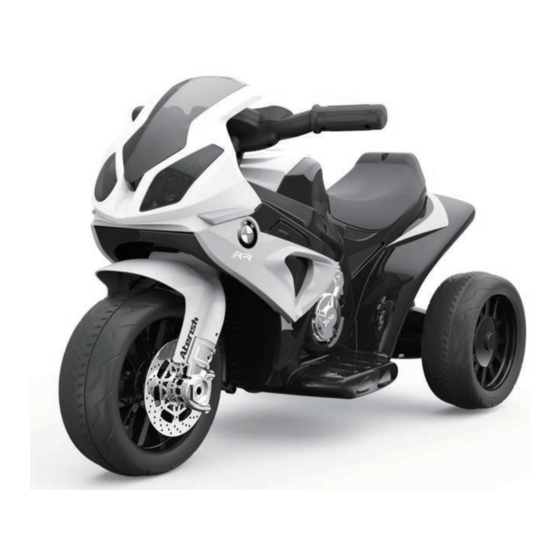

BMW S1000 RR
Children Battery Powered Trike
Made in China.
The owner's manual contains important safety information as well as assembly, use and
maintenance instructions. The Ride-on Car must be assembled by an adult who has read
and understands the instructions in this manual. Keep the packaging and bags away from
children and dispose of all packaging properly before use.
Keep this manual for future reference.
Owner's Manual
with Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMW S1000 RR and is the answer not in the manual?

Questions and answers

Related Manuals for TDC BMW S1000 RR

Summary of Contents for TDC BMW S1000 RR

  • Page 1 BMW S1000 RR Children Battery Powered Trike Owner’s Manual with Assembly Instructions Made in China. The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. The Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.
  • Page 3 Please contact us at our Toll Free customer service number 1-800-599-8898 for any assistance and replacement parts. Thank You. Dist. by TDC USA, Inc. Fairfield, NJ 07004 ©2018 All Rights Reserved. Made in China.

  • Page 5: Specifications

    1 YEAR LIMITED WARRANTY SIX MONTH LIMITED WARRANTY ON BATTERY 6-months warranty applies only to the 6-volt battery which is included by TDC USA Inc. with the vehicle when it was originally purchased. This warranty covers normal use and does not cover the vehicle or battery if damaged by unreasonable use, neglect, abuse, accident, misuse, improper service or other causes not arising out defects in material or workmanship.

  • Page 6: Before You Begin Assembly

    Before You Begin Assembly WARNING! · CHOKING HAZARD - Small parts. Not suitable for children under 36 months. The product contains small parts, keep children away when assembling. · ADULT ASSEMBLY REQUIRED. · Always remove protective material and poly bags and dispose before assembly. •...

  • Page 7: Battery Warnings

    Before You Begin Assembly BATTERY WARNINGS The following safety hazards may result in serious injury or death: · Use of a battery charger other than the supplied 6V rechargeable battery and charger may cause a fire or explosion. Only use the supplied battery and charger. ·...

  • Page 8: Parts List

    Parts List PART NO. PART NAME QUANTITY (PCS) Vehicle body Face guard Handle bar M5x35 machine screw Ø5 nut Charger Gear box Rear wheel Ø8 washer Lock nut Front wheel assembly Spanner NOTE: Some parts shown are assembled on both sides of vehicle...

  • Page 9: Attach Rear Wheels

    Attach Rear Wheels Rear Axle Motor connector Vehicle connector Remove all the parts from the rear axle. Turn the vehicle body downside up. 1. Insert the Rear Axle into the hole located on the rear of the vehicle. 2. Slide a Gear Box (7) onto the rear axle, and plug the connector on the vehicle into the connector on the motor.
  • Page 10 Attach The Handle Bar Front fork Remove the M5x35 machine screw (4) and Ø5 Nut (5) from the end of the Front fork (11). 1. Insert the Front fork into the opening on the front of the vehicle body from the bottom side, and out through the hole on the top side of the vehicle.
  • Page 11 Attach the Face guard 1. Plug the light wire connector on the Face guard (2) into the connector on the vehicle. 2. Insert the tabs on the Face guard into the slots on the vehicle. 1. With a small screwdriver remove the Screw on the Battery Cover on the Face guard (2).
  • Page 12 Connect the Power Supply 1. Using a screwdriver to remove the screw on the seat back. 2. Remove the seat. 3. Plug the Vehicle connector into the Motor connector as shown above. 4. Replace the seat. 5. Using a screwdriver replace the screw on the seat back.
  • Page 13 Safety WARNING! PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
  • Page 14 Using your Trike 1. Sounds Buttons: Press to play sounds. 2. Foot Pedal: Applies power (speed) to the vehicle.
  • Page 15 Charging 1. Plug the charger port into the input socket (the socket is at the back of the vehicle.) 2. Plug the charger plug into a wall outlet. The battery will begin charging. WARNING! This product with Charging Safety Protection: when charging, all functions will be cut off! Only an adult can charge and recharge the battery!
  • Page 16 Charging Only An Adult Can Charge And Recharge The Battery! WARNING! · PREVENT FIRE AND ELECTRIC SHOCK: - Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger may cause a fire or explosion.

  • Page 17: Battery Disposal

    Battery Replacement & Fuse The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 20 seconds and then turned ON again.

  • Page 18: Troubleshooting Guide

    Troubleshooting guide Problem Possible Cause Possible Cause Recharge battery. After each use, or once a month minimum, charge the Battery low on power battery for a ‘full’ 8 to 12 hours. DO NOT leave the battery on the charger for more than 20 hours.
  • Page 19 Maintaining • It is parents’ responsibility to check main parts of the toy before using. Regular examination of transformer or battery charger for any damage to their cord, plug, enclosure and other parts, and that, in the event of such damage, toy must not be used with the transformer or battery charger until such damage has been repaired.
  • Page 20 BMW S1000 RR Children Battery Powered Trike Dist. by TDC USA, Inc. Fairfield, NJ 07004 ©2018 All Rights Reserved. Made in China. Item 60775 Questions and Comments 1-800-599-8898 (9 am - 5 pm EST) www.tdcusainc.com This products meets ASTM F963 and CPSIA requirements for electric vehicles.
