AMERICAS
Newall Electronics Inc.
USA
Tel: +1 614 771 0213
CHINA & TAIWAN
Sensata Technologies China Co., Ltd.
People's Republic of China
Tel: +86 12 2306 1500
SINGAPORE AND KOREA
Sensata Technologies Co., Ltd.
Singapore
Tel: +65 647 86 867
JAPAN
Sensata Technologies Japan Ltd.
Japan
Tel: +81 45 277 7120
For more information about this or any of our products
please contact us at sales@newall.com or visit www.newall.com
DP7001016ENUS
023-81365-UK/0
DP700 MK2 Quick Start Guide
For the complete manual please download from:
http://newall.com , Click Technical Support to access the download page.
Warnings
The mains supply is connected into a switch mode power supply (separate from your DP700) via a
detachable supply cord supplied. If another supply cord is used, it must have fitted a C5, 10A, EARTHED
mains connector with a cord rated for at least 10A.
If a mains plug is not already fitted to the supply cord or is of the wrong type, then a suitable EARTHED plug
should be used which complies with the relevant specifications for plugs and socket-outlets.
You can only use the DP700 with Newall Spherosyn and Microsyn analogue encoders.
Unit only to be serviced by Newall qualified personnel or authorised alternatives.
Turn off the power by disconnecting the power supply connector before you connect the encoder(s)
Technical Specification
Environmental
Operating Temperature
Storage Temperature
-10°C to 50°C
-20 to 70°C
Environmental Conditions - IP40 (Stand Alone)
IP54 (Panel Mount)
Relative Humidity - maximum 95% for temperature up to 31°C
Disposal
At the end of it's life, you should dispose of the DP700 in a safe
manner applicable to electronic goods.
The case work is suitable for recycling. Please consult local
regulations on disposal.
Note: Newall Measurements Systems reserves the right to change specifications without notice.

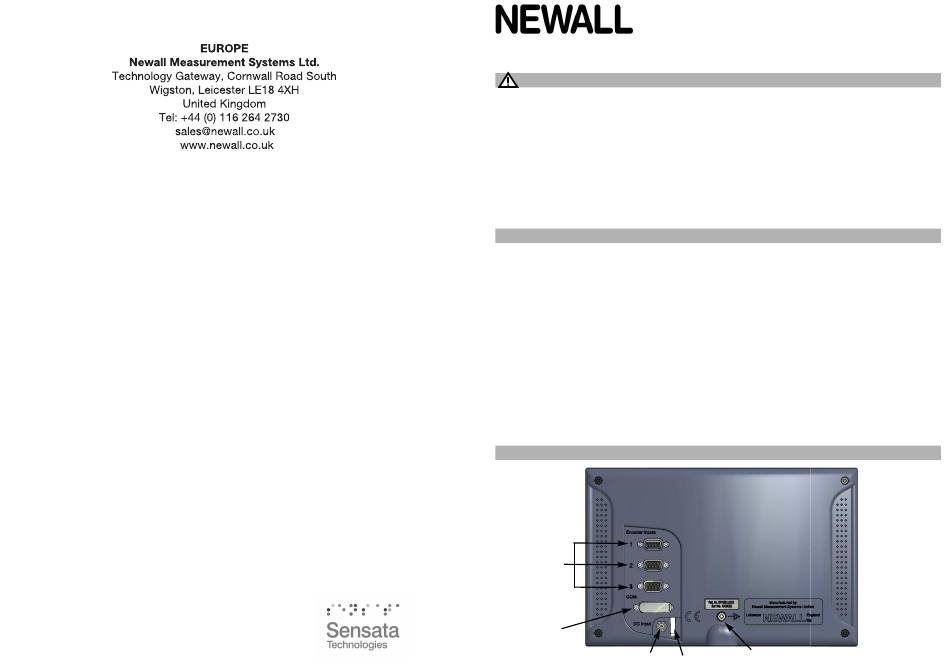

Connections
Encoder Input
Connection
1,2 or 3 According
to Model
RS232 Output
External PSU Input
Electrical
EU Directive 73/23/EEC (Low Voltage
Directive)
BS EN 55022:1998 Class B
BS EN 55024:1998
Input to Power Supply Unit (Supplied)
100-240V (47-63Hz)
External switch-mode
Output voltage 15VDC
Input Voltage to DP700
15-24VDC ±10%
Conforms to Low Voltage Directive
Cabinet equipotential terminal
Cable Clamp
for grounding to machine
