EDTM ShowerGuard RD1661 Operator's Manual

BATTERY REPLACEMENT
The instrument is powered by a 9-volt alkaline battery (supplied).
instrument will notify you when the battery is starting to get low. The meter will
continue to operate, as this is just a warning that you will need to replace the
battery in the near future. Once the battery has reached a level that is too low,
the instrument will lock up the display with a "REPLACE BATTERY" message.
To access the battery, remove the battery cover and replace with a new 9-volt
alkaline battery. If the unit is going to be stored for more than a month without
use, we recommend removing the battery during storage.
USE / MIS-USE
Do not tamper with the enclosure of the instrument.
WILL affect the calibration of the instrument AND will void the warranty.
Do not apply excessive force to the switch.
performance of the instrument, especially if excessive force is applied during
testing.
The instrument has been calibrated for testing Guardian ShowerGuard
coatings. Testing of materials other than those listed is not warranted to
produce the correct test results. If you have a custom application, consult the
factory to find out if the product is applicable.
WARRANTY
The manufacturer warrants the electronics included in all models of the RD1661 to be free from defects in material
and workmanship under normal use and service as specified within the operator's manual. The manufacturer shall
repair or replace the unit within twelve (12) months from the original date of shipment after the unit is returned to the
manufacturers factory, prepaid by the user, and the unit is disclosed to the manufacturers satisfaction, to be thus
defective. This warranty shall not apply to any unit that has been repaired or altered other than by the
manufacturer. The aforementioned provisions do not extend the original warranty period of the unit which has been
repaired or replaced by the manufacturer. Batteries, enclosures, lenses and front panel interface components are
not covered by warranty.
EDTM, Inc. assumes no liability for the consequential damages of any kind through the use or misuse of the
RD1661 product by the purchaser or others. No other obligations or liabilities are expressed or implied. All
damage or liability claims will be limited to an amount equal to the sale price of the RD1661, as established by
EDTM, Inc.
OTHER PRODUCTS FROM EDTM, INC.
Glass & Air Space
Laser Meters +
Identify Low E Type
(Model# AE1601)
(Model# GC3000)
Opening the enclosure
Doing so could affect the
Low E Coating Tin Side
Detectors Detectors
(Model# TS1320)
4
The
MODEL# RD1661

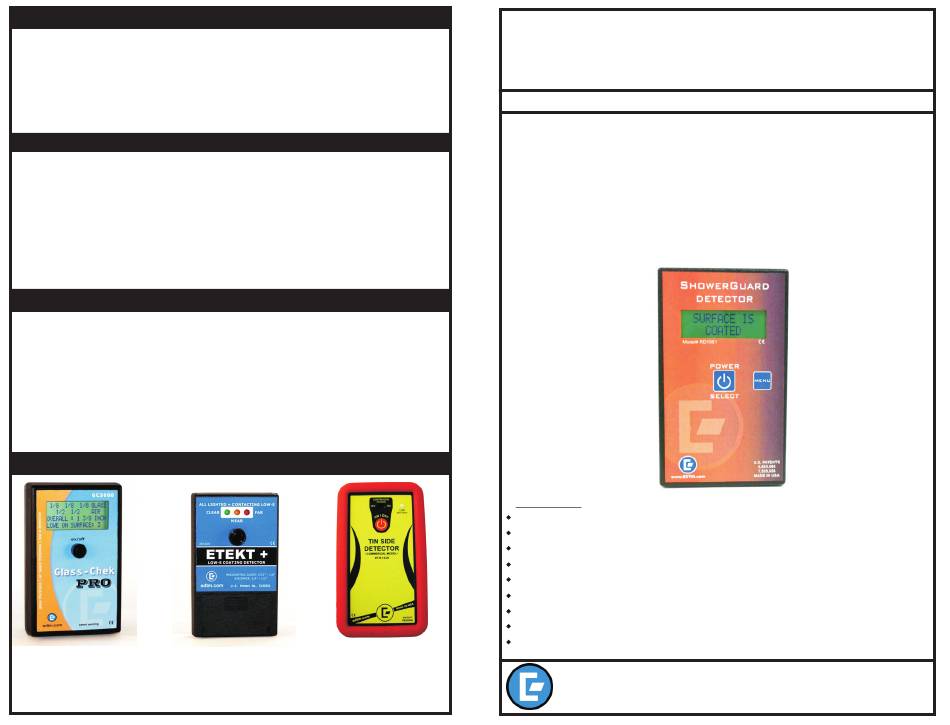

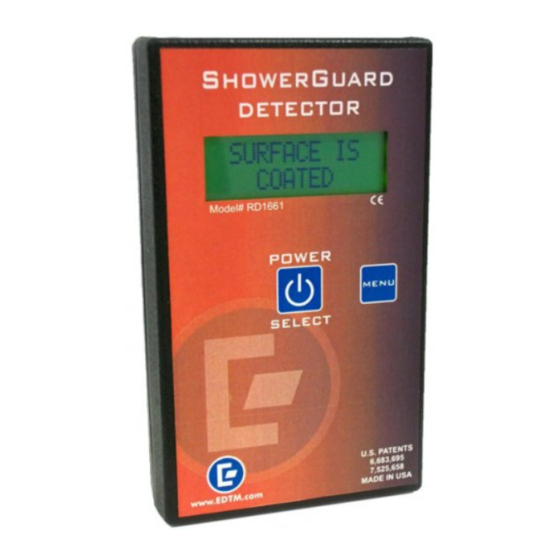

The ShowerGuard Coating Detector allows the user to easily identify the coated
side of a piece of ShowerGuard glass. The meter can test glass in the tempered
or annealed state in production, and can also test the glass once it has been
installed to confirm proper installation. Simply place the meter against the glass
surface and push the button. The results will instantly be displayed on the LCD
screen. The instrument includes a MENU button that allows the user to operate
the meter in SINGLE TEST MODE or FREE RUNNING MODE (continual
measurements). Repeatedly pushing the MENU button will scroll through all of
the available options of the meter. When you find the option you desire, simply
push the Power/Select button and your selection is made.
FEATURES
Identify the coated side of the glass
SINGLE TEST mode or FREE RUN continual measurement operating mode
Able to recalibrate the instrument in the field
Backlit LCD display for testing in any light condition
User-friendly LCD display operation with step-by-step directions on how to use
"OPTO-CLEAN" error protection against dirty glass and dirty lens on the meter
Powered by standard 9-volt alkaline battery (included)
Automatic power-down feature to extend battery life
Tactile membrane switches on the front panel
