EDTM PPG Solarphire AR1750 Operator's Manual

BATTERY REPLACEMENT

The instrument is powered by a 9-volt alkaline battery (supplied). The instrument
will notify you when the battery is starting to get low. The meter will continue to
operate, as this is just a warning that you will need to replace the battery in the
near future. Once the battery has reached a level that is too low, the instrument
will lock up the display with a "REPLACE BATTERY" message. To access the
battery, remove the battery cover and replace with a new 9-volt alkaline
battery. If the unit is going to be stored for more than a month without use, we
recommend removing the battery during storage.

USE / MIS-USE

WARNING: The instrument includes a UV(A) LED in the design. Do not look directly at
the aperture on the back of the instrument while the instrument is testing.
Do not tamper with the enclosure of the instrument.
affect the calibration of the instrument AND will void the warranty.
Do not apply excessive force to the switch. Doing so could affect the performance
of the instrument, especially if excessive force is applied during testing.
The instrument has been calibrated for testing Solarphire AR glass.
materials other than Solarphire AR glass is not warranted to produce the correct test
results. If you have a custom application, consult the factory to find out if the product
is applicable.

WARRANTY

The manufacturer warrants the electronics included in all models of the AR1750 to be free from defects in material
and workmanship under normal use and service as specified within the operator's manual. The manufacturer shall
repair or replace the unit within twelve (12) months from the original date of shipment after the unit is returned to the
manufacturers factory, prepaid by the user, and the unit is disclosed to the manufacturers satisfaction, to be thus
defective. This warranty shall not apply to any unit that has been repaired or altered other than by the
manufacturer. The aforementioned provisions do not extend the original warranty period of the unit which has been
repaired or replaced by the manufacturer. Batteries, enclosures, lenses and front panel interface components are
not covered by warranty.
EDTM, Inc. assumes no liability for the consequential damages of any kind through the use or misuse of the
AR1750 product by the purchaser or others. No other obligations or liabilities are expressed or implied. All
damage or liability claims will be limited to an amount equal to the sale price of the AR1750, as established by
EDTM, Inc.

OTHER PRODUCTS FROM EDTM, INC.

Glass & Air Space Laser Meters
with Low E Type Detection
(Model# GC3000)
Opening the enclosure WILL
Low E Coating
Detectors
(Model# AE1601)
DIGITAL!
4

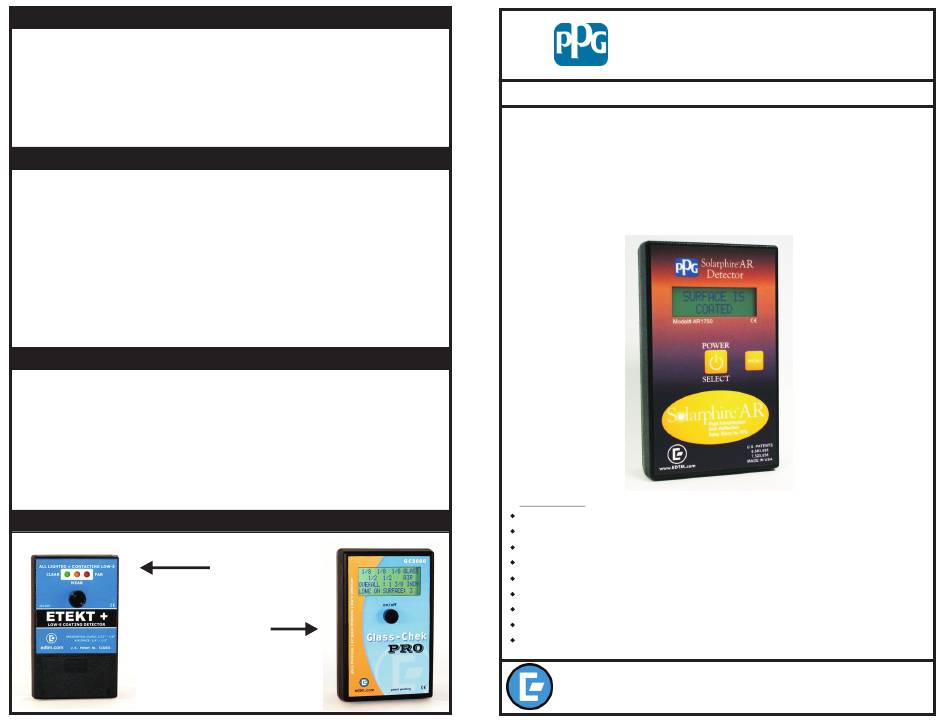

The Solarphire AR Detector allows the user to easily identify the coated side of the
glass. Simply place the meter against the glass surface and push the button. The
results will instantly be displayed on the LCD screen. The instrument includes a
MENU button that allows the user to operate the meter in SINGLE TEST MODE
or FREE RUNNING MODE. Repeatedly pushing the MENU button will scroll
through all of the available options of the meter. When you find the mode you
would like to choose, simply push the POWER/SELECT button and it will make
your selection for you.
Testing of

FEATURES

Single Test Mode or FREE RUN continual measurement operating mode
Able to recalibrate instrument in the field
Backlit LCD display for testing in any light condition
User-friendly LCD display operation with step-by-step directions on how to use
OPTO-CLEAN Error protection against dirty glass and dirty lens on the meter
Powered by standard 9-volt alkaline battery (included)
Automatic power-down feature to extend battery life
Rugged and compact instrument
Tactile membrane switches on the front panel
Solarphire AR Detector
OPERATOR'S MANUAL
TM
EDTM, INC.
745 Capital Commons Drive Toledo, Ohio 43615 USA
Ph. 419-861-1030 Fx. 419-861-1031
EMAIL: SALES@EDTM.COM WEB: WWW.EDTM.COM
1
Model# AR1750
