Pioneer SPH-C19BT Operation Manual

Smartphone receiver, made for iphone, bluetooth
Hide thumbs Also See for SPH-C19BT:
Table of Contents

Advertisement

Quick Links

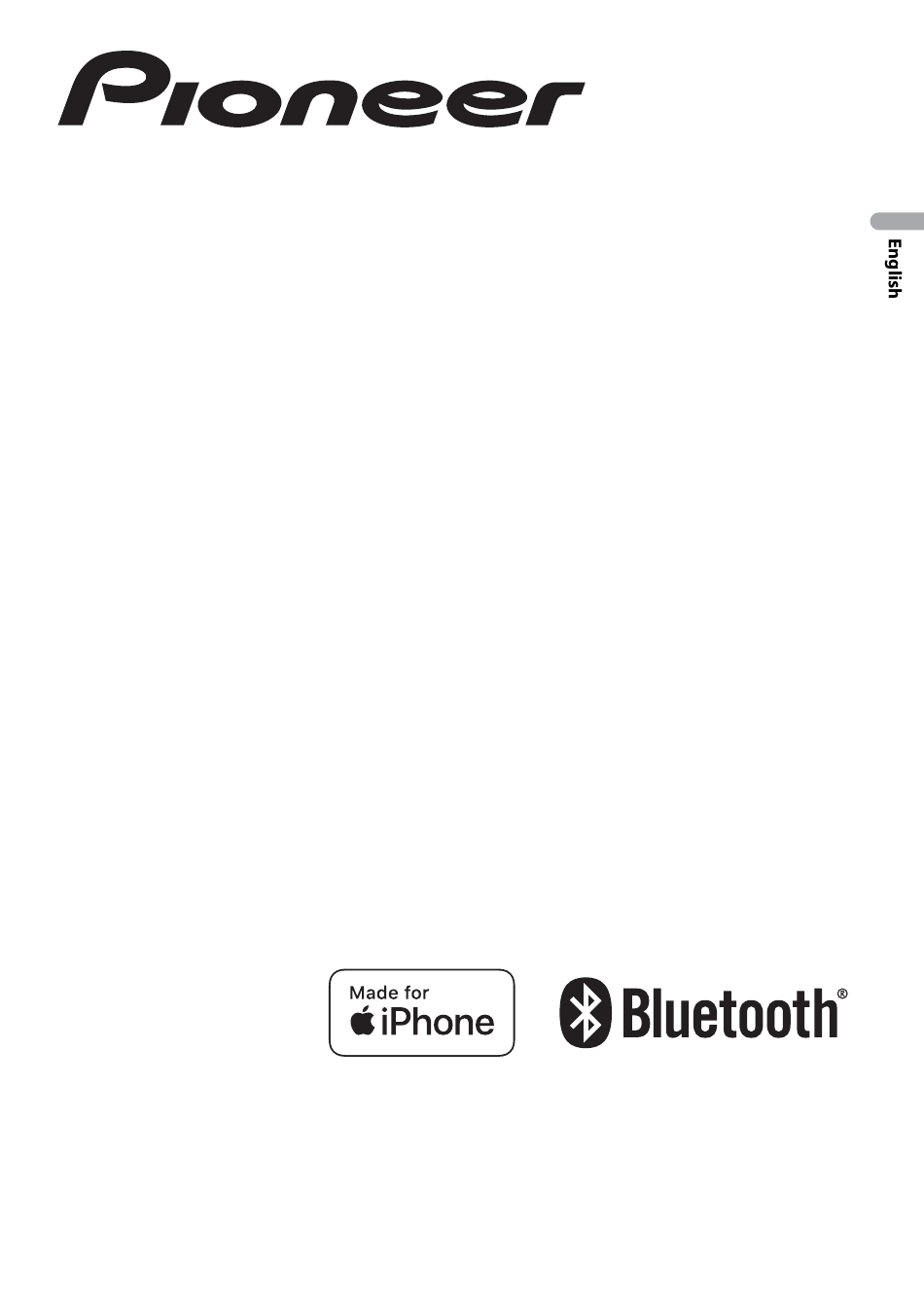

SMARTPHONE RECEIVER
SPH-C19BT
Operation Manual

Advertisement

Table of Contents
loading

Related Manuals for Pioneer SPH-C19BT

Summary of Contents for Pioneer SPH-C19BT

  • Page 1 SMARTPHONE RECEIVER SPH-C19BT Operation Manual...

  • Page 2: Table Of Contents

    Table of Contents Getting Started ..................3 Radio ....................... 12 USB/iPhone.................... 13 Bluetooth ....................14 Using Pioneer Smart Sync/APP............17 Parking Sensor ..................20 Settings ....................20 FUNCTION settings ................21 AUDIO settings ..................22 SYSTEM settings ..................23 ILLUMINATION settings................ 25 P.SENSOR settings .................

  • Page 3: Getting Started

    Getting Started Basic operation SPH-C19BT USB port Application launch Smartphone holder Display window Source (music)/Off Detach button Navigation Phone Message Voice recognition Optional remote control The remote control CD-SR110 is sold separately. Frequently used operations Purpose Operation Turn on the power* Press to turn on the power.
  • Page 4 * When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off. Detaching the front panel Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it.
  • Page 5 • Make sure that nothing affects the operation of the air bags or vehicle operating systems, safety feature or hazard lamps. • PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR ANY DAMAGES CAUSED THROUGH USE OF THE PRODUCT OR VEHICLE.
  • Page 6 CAUTION Make sure that the line can be seen when the holder is pulled up vertically. Attach the front panel to the unit (page 4). Adjusting the smartphone holder horizontally Slide the holder while the holder is in a horizontal position. - 6 -...
  • Page 7 NOTE Detach the smartphone from the device while adjusting the holder. Pull up the holder. Attaching the smartphone to the holder CAUTION • Depending on the shape of the smartphone, smartphone case or cover, it may not be attachable to the holder.
  • Page 8 Slide the lower arms position to avoid hitting the lower arm and smartphone buttons against each other. NOTES • Make sure that the smartphone is held properly on the holder. • When the smartphone buttons come in contact with the upper or lower arms, adjust the smartphone’s position or turn the smartphone upside down.
  • Page 9 Adjusting the smartphone holder Adjusting the holder angle The holder angle range: Downward 45° to upward 100° WARNING Do not set the holder where it may (i) interfere with vehicle panels or switches or (ii) impair the driver’s performance. Turning the smartphone holder from a horizontal to a vertical position Rotate the smartphone holder 90°...
  • Page 10 CAUTION Be careful to not drop the smartphone when the smartphone is attached to the holder while rotating. Detaching the smartphone from the holder Pull out the smartphone while pushing up the upper arm with the smartphone. CAUTION • Be careful to not drop the smartphone. •...
  • Page 11 Attach the front panel to the unit (page 4). INITIAL settings Press and hold until the unit turns off. Press and hold to display the main menu. Press to select [INITIAL], then press to confirm. Press to select an option, then press to confirm.

  • Page 12: Radio

    Menu Item Description UPDATE Select [S/W VER] to confirm the latest system information on the unit. [S/W VER], [START] Select [START] to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website.

  • Page 13: Usb/Iphone

    To store stations manually This function is only available on Pioneer Smart Sync (page 17). For details, see the application's help section. Using PTY functions The unit searches for a station by PTY (program type) information. Press and hold during FM reception.

  • Page 14: Bluetooth

    NOTE If you use an AOA connection, [APP CTL] needs to be set to [WIRED] in the SYSTEM settings (page 24). Operations You can make various adjustments in Pioneer Smart Sync (page 17). Purpose Operation Select a folder*1 Press...
  • Page 15 • Be sure to park your vehicle in a safe place and apply the parking brake before operation. To make a phone call This function is only available on Pioneer Smart Sync (page 17). For details, see the application's help section.
  • Page 16 Purpose Operation End a call Press Reject an incoming call Press and hold when a call is received. Adjust the volume of the caller’s Press during the call. voice (When private mode is on, this function is not available.) Voice recognition This function is only available when an iPhone/Android device equipped with voice recognition is connected to the unit via Bluetooth.

  • Page 17: Using Pioneer Smart Sync/App

    For details on what operations are available on the application, see the application’s help section. NOTE The APP source is not available when a Pioneer Smart Sync connection is not made. WARNING Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.
  • Page 18 – Controlling your connected Bluetooth device Extending the functions of the unit by using the application The following functions, which are unavailable on the unit alone, are available by making a Pioneer Smart Sync connection. Menu Item (example) Description Using a navigation application You can specify and start the navigation application installed on your device.
  • Page 19 • The 31 Band EQ setting is converted into 13 bands when a music source from this product is engaged. It is recommended to enter the search term "Pioneer Smart Sync" in the search field to search for the application.

  • Page 20: Parking Sensor

    NOTES • If Pioneer Smart Sync has not been installed on your iPhone/Android device yet, a message that prompts you to install the application will appear on your iPhone/Android device. • When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device.

  • Page 21: Function Settings

    NOTE The setting operation from this unit is not available when Pioneer Smart Sync is connected. Press and hold to display the main menu. Press to select one of the categories below, then press to confirm. • FUNCTION settings (page 21) •...

  • Page 22: Audio Settings

    Select the preset equalizer curve. [DYNAMIC], [TODOROKI], • You can only customise the equalizer curve by [VOCAL], [VIVID], [APP EQ]*, Pioneer Smart Sync (page 17). [CUSTOM1], [CUSTOM2], [FLAT] * [APP EQ] is displayed when the preset equalizer curve that is not available in the unit has been set from Pioneer Smart Sync.

  • Page 23: System Settings

    Menu Item Description CLOCK [12H], [24H] Set the clock. • This setting is not available when a Pioneer Smart Sync connection is made. BEEP [Y], [N] A beep can be heard when any button is pushed. Select [N] to disable this function.
  • Page 24 PIONEER Service Station. *2 Please use a commercially available wiring harness for each car model when [PRESET] mode is engaged, and use a commercially available adapter when in [PIONEER]. Information on the connections for each device The available sources differ depending on the setting value.

  • Page 25: Illumination Settings

    When Pioneer Smart Sync connection is NOT performed Setting Value Device Available source(s) [WIRED] iPhone iPhone Android USB (AOA) [BT] iPhone iPhone Android When Pioneer Smart Sync connection is performed Setting Value Device Available source(s) [WIRED] iPhone Android [BT] iPhone...
  • Page 26 Menu Item Description VOLUME Adjust the parking sensor warning volume. OUTPUT [L+R], [LEFT], [RIGHT] Select the output of parking sensor warning sound. REVGEAR [BATTERY], [GROUND] Select the polarity of the connected reverse gear's lead. - 26 -...

  • Page 27: Additional Information

    – Turn the ignition switch OFF and back Troubleshooting to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance. The display automatically returns to the normal display. NO XXXX (NO TITLE, for example) →...
  • Page 28 → iPhone failure. – Disconnect the cable from the iPhone. Once the iPhone’s main menu is CNCT APP displayed, reconnect the iPhone and → Pioneer Smart Sync connection is not reset it. made. – Make a connection with Pioneer Smart ERROR-23 Sync (page 17).
  • Page 29 USB device with numerous folder Handling guidelines hierarchies. CAUTION USB storage device • Pioneer cannot guarantee compatibility • Connections via USB hubs are not with all USB mass storage devices, and supported. assumes no responsibility for any loss of • Firmly secure the USB storage device data on media players, smartphones, or before driving.
  • Page 30 Sampling frequency 8/11.025/12/16/22.05/ 24/32/44.1/48/96 kHz CAUTION Quantization bit rate 8/16/24 bit Pioneer accepts no responsibility for data Channel mode 1/2 ch lost on the iPhone, even if that data is lost while this unit is used. USB device Sequence of audio files •...
  • Page 31 CONTRIBUTORS “AS IS” AND ANY EXPRESS registered trademarks owned by Bluetooth SIG, OR IMPLIED WARRANTIES, INCLUDING, BUT Inc. and any use of such marks by PIONEER NOT LIMITED TO, THE IMPLIED CORPORATION is under license. Other WARRANTIES OF MERCHANTABILITY AND...
  • Page 32 meet Apple performance standards. Specifications Apple is not responsible for the operation of this device or its General compliance with safety and regulatory standards. Rated power source: 14.4 V DC (allowable Please note that the use of this voltage range: 12.0 V to 14.4 V DC) accessory with an Apple product may Grounding system: Negative type affect wireless performance.
  • Page 33 Phase: Normal/Reverse 13 570 kHz to 13 870 kHz, 15 100 kHz Speaker level: to 15 735 kHz, 17 500 kHz to 17 985 +10 dB to –24 dB (1 dB step) kHz, 18 015 kHz to 18 135 kHz, 21 340 Time alignment: kHz to 21 975 kHz) 0 cm to 350 cm (2.5 cm/Step)
  • Page 34 © 2018 PIONEER CORPORATION. All rights reserved. <CRB5153-A> ID...
